BENCH LATHE CJM320CV 500MM/750MM
| Quantity: | |
|---|---|
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 60-2100rpm.
Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.
VARIO SPEED IS AVALIABLE .

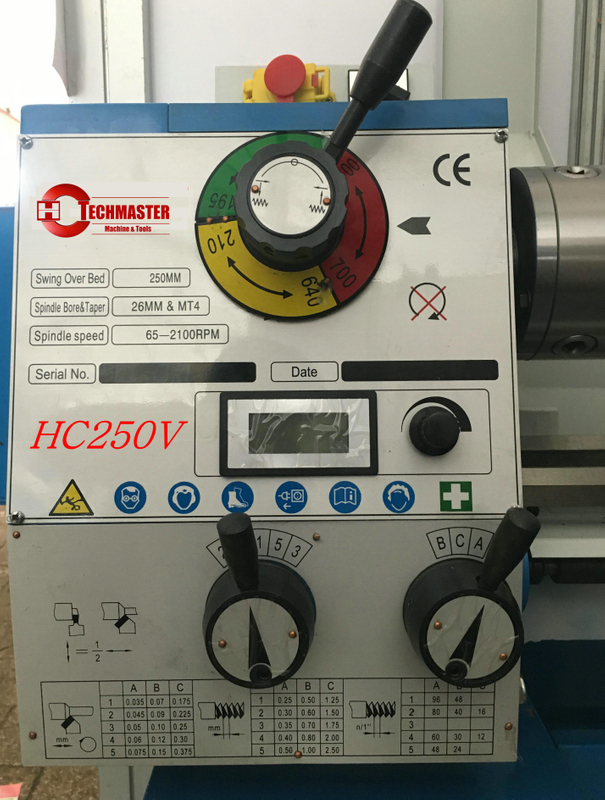

Model | HC250V VARIO SPEED LATHE | |
Swing over be | 250mm | |
Center distance | 500 mm | 750mm |
Swing over carriage | 150 mm | |
Spindle bore | 26 mm | |
Spindle taper | MT.4# | |
Swing over toolpost | 130 mm | |
Longitudinal travel over toolpost | 75 mm | |
Metric thread available | 15 | |
Metric thread range | 0.20~2.5 mm | |
Inch thread available | 9 | |
Inch thread range | 12-96 1/n″ | |
Longitudinal feed on spindle toolpost | 0.03~0.275 mm/r | |
Cross feed on spindle toolpost | 0.015~0.137 mm/r | |
Tailstock sleeve travel | 60 mm | |
Tailstock sleeve taper | MT.3# | |
Spindle speed step | MECHANICAL+VARIO SPEED | |
Spindle speed range | 60-2100RPM | |
Motor | 750W (220V 50HZ/60HZ) BRUSHLESS MOTOTR | |
Packing size | 1170×510×500 | 1500×510×500 |
