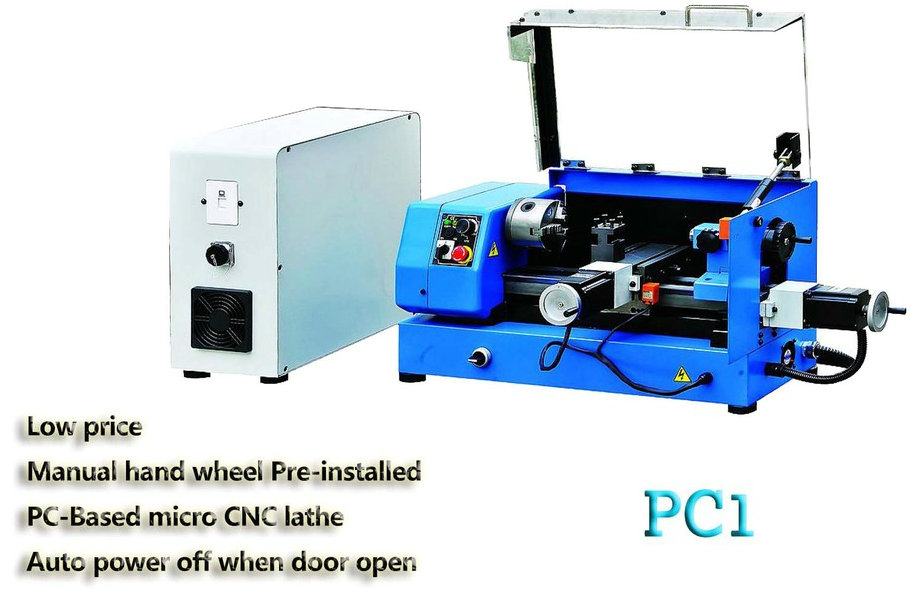

PC1-Mach3 is one of the most popular products in educational market:
We used to export over 100 each year to International market,
Technical Specification
| WORKING AREA | Turning diameter over bed(max) | 140mm |
| Travel across slide | 75mm | |
| Center width | 250mm | |
| SPINDLE | Chuck diameter | 80mm |
| Spindle speed | 100-2000r/min | |
| Spindle through-hole | 11mm | |
| Spindle mount | MT2 | |
| Spindle motor power | 150W | |
| FEED (stepper) | X travel | 100mm |
| Z travel | 150mm | |
| The max moving speed | 300mm/min | |
| The max feeding speed | 200mm/min | |
| Motor | 1.35N/m | |
| TOOL REST | Tool position | 1 |
| Tool dimension | 8×8mm | |
| TAILSTOCK | Tailstock taper | MT2 |
| Tailstock sleeve diameter | 12mm | |
| Travel of tailstock | 20mm | |
| ACCURACY | Positioning accuracy | 0.02mm |
| Repeatability accuracy | 0.02mm | |
| OTHERS | Power | 220V/110V |
| Weight(NW/GW) | 45/65KG | |
| Dimension | 730×380×350mm |
