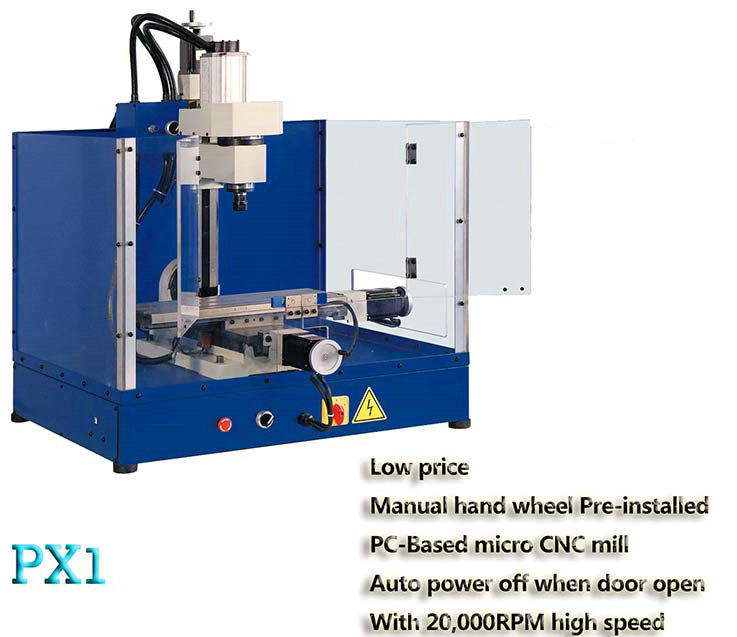

| PX1 Baby CNC Milling Machine | ||
| TABLE | Table size | 400×145mm |
| T slot (amount×width×distance) | 3×8mm×45mm | |
| Max. load | 20kg | |
| TRAVEL | X travel | 230mm |
| Y travel | 120mm | |
| Z travel | 230mm | |
| Spindle nose to table | 45mm-275mm | |
| Spindle center to column | 140mm | |
| SPINDLE | Spindle taper | ER16 |
| Spindle motor | 500W | |
| Spindle speed | 300-20000r/min | |
| FEED | The max moving speed | 300mm/min |
| The max feeding speed | 200mm/min | |
| Power of X/Y/Z | 1.35Nm | |
| ACCURACY | Positioning accuracy | 0.02mm |
| Repeatability accuracy | 0.02mm | |
| OTHERS | Power | 230V/120V |
| Weight(NW/GW) | 90/120kg | |
| Overall dimension | 560×680×800mm | |
| Packing size | 660×780×900mm | |
