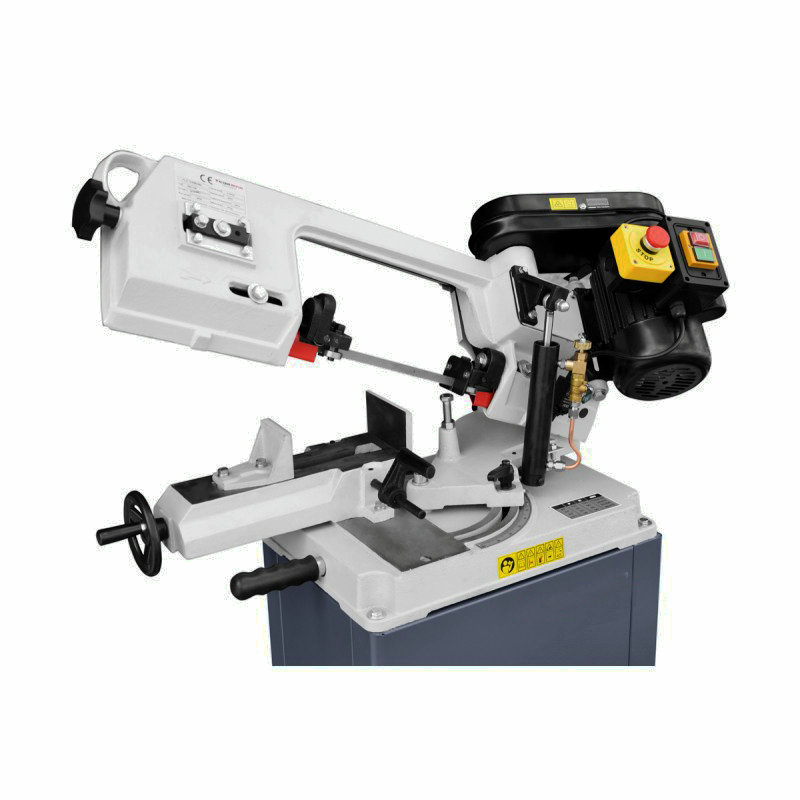

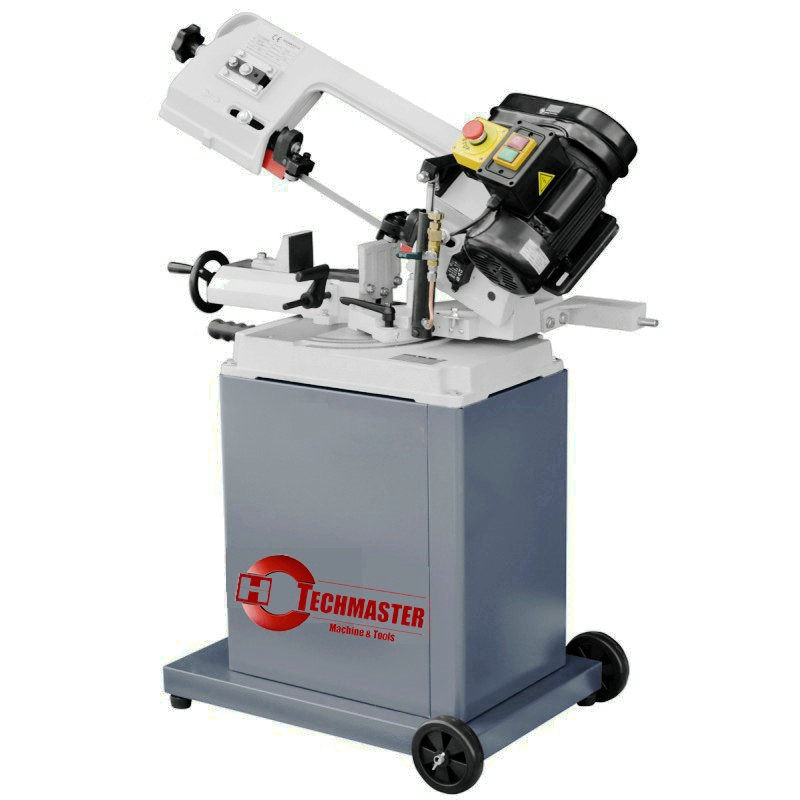

BS 128HDR band saws for metal cutting are distinguished by efficiency and easy operation. This machine is an interesting proposal for every professional craftsman.
Machine arm made of shaped ductile iron, securing rigidity and absorbing all vibrations
Three speeds of band, adjustable via blocking strip
Swivelling saw frame for double bevelling at -45o – 60o angles
Appropriate band tilt angle ensured by roller bearings
Straightforward cut provided by a set of bearings guiding the band
Cast iron workbench with a vice for material clamping, to which the machine arm is fixed, ensure machine stability
Electric installation meets all CE requirements. The machine is equipped with a switch-off stopping the machine after cutting process is finished, an emergency button compliant with IP54
The machine by default is equipped with a quick-clamping vice and a limiter of workpiece
| Cutting band size | 1640×13×0.65 mm |
| Band tension | mechanical (manual) |
| Band speeds | 24, 47, 61 m/min |

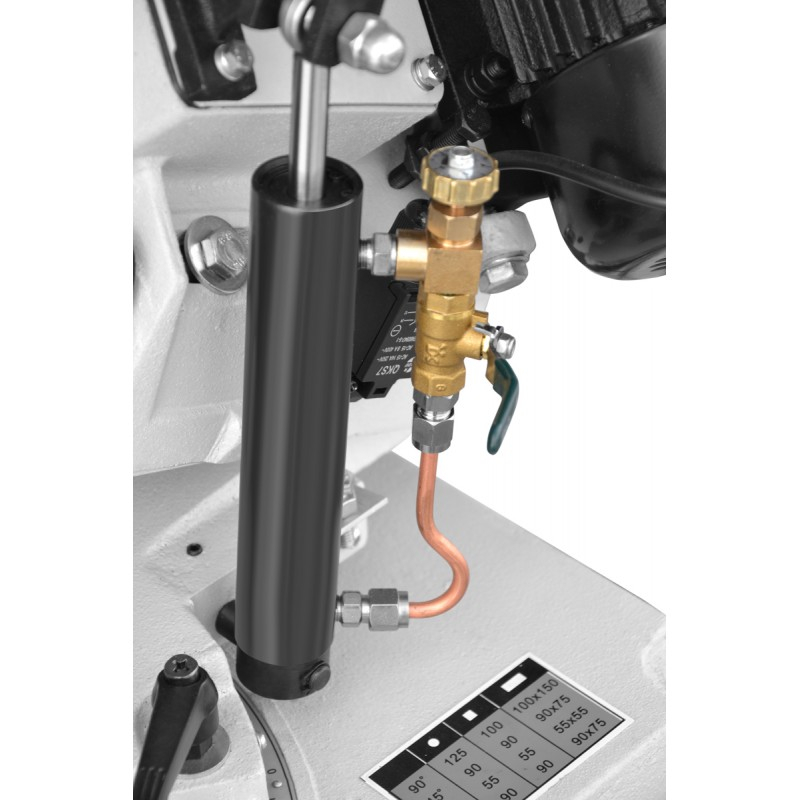

| Arm lowering control | stepless, through hydraulic cylinder |
| Arm tilt | -45° - 60° |
| Switch-off | automatically limiting, I/O compliant with IP54 |
| Power supply | 400V |
| Main motor power (kW) | S1 100%: 0.55; S6 40%: 0.75 |
| Weight | 112 kg |
| Dimensions | 980×385×1060 mm |
| Warranty | 12 months |
| Angle | ROUND | RECTANGLE | SQUARE |
| 0° | 120 mm | 150 x 100 mm | 120 x 120 mm |
| 45° | 80 mm | 100 x 60 mm | 75 x 75 mm |
| 60° | 50 mm | 80 x 40 mm | 45 x 45 mm |
| 45° (L) | 75 mm | 120 x 60 mm | 75 x 75 mm |
Workpiece limiter (bumper)

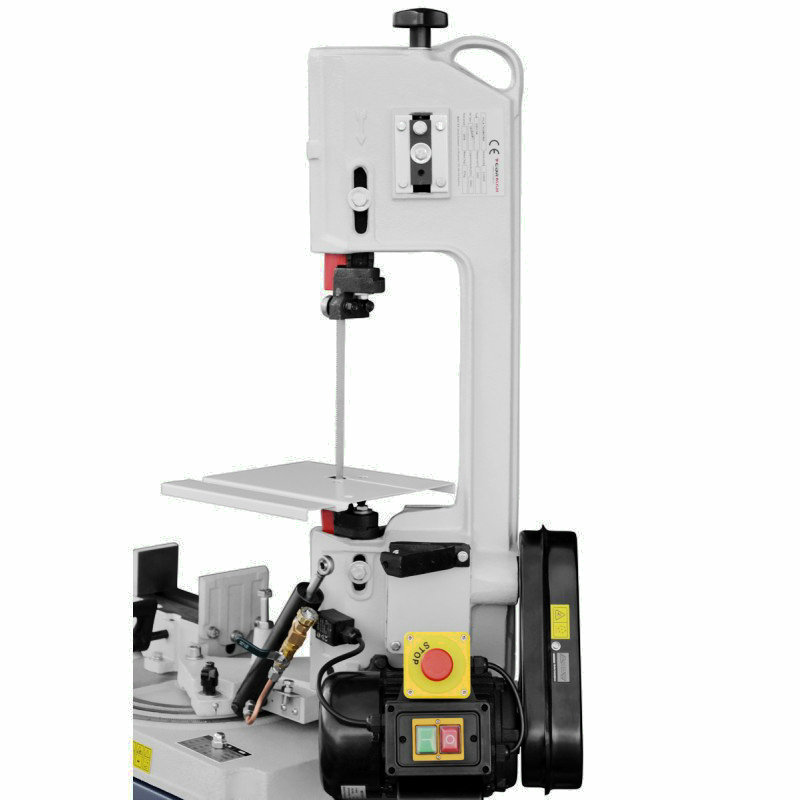

Table for vertical cutting
