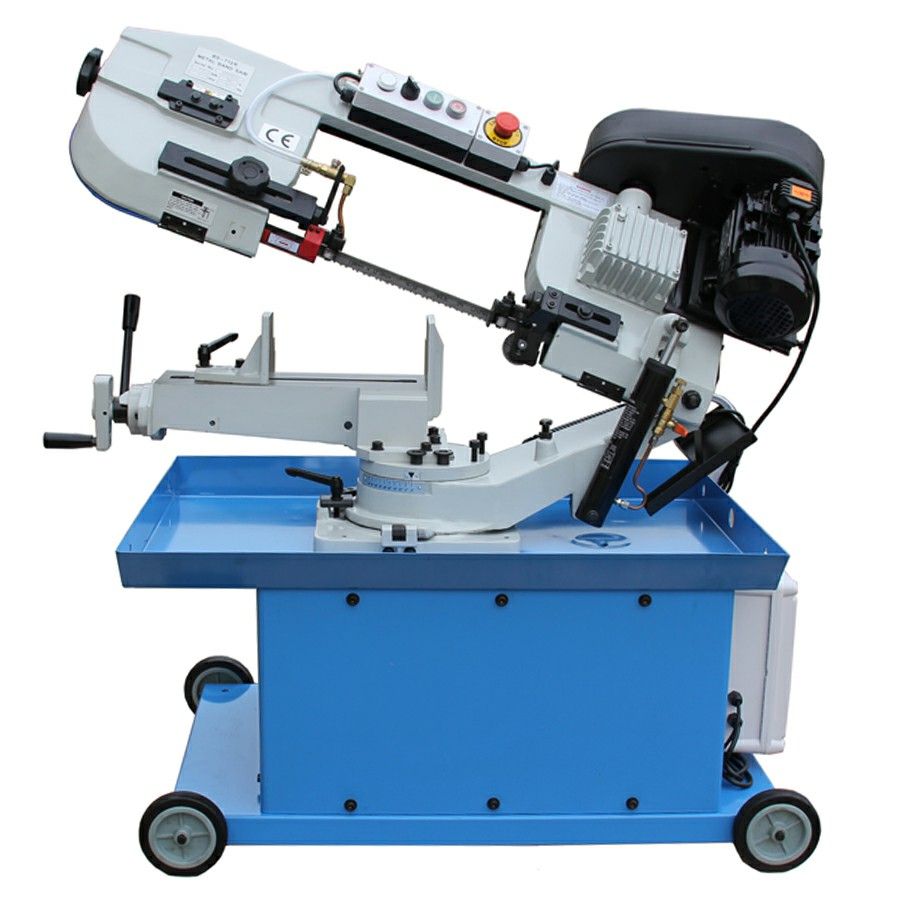

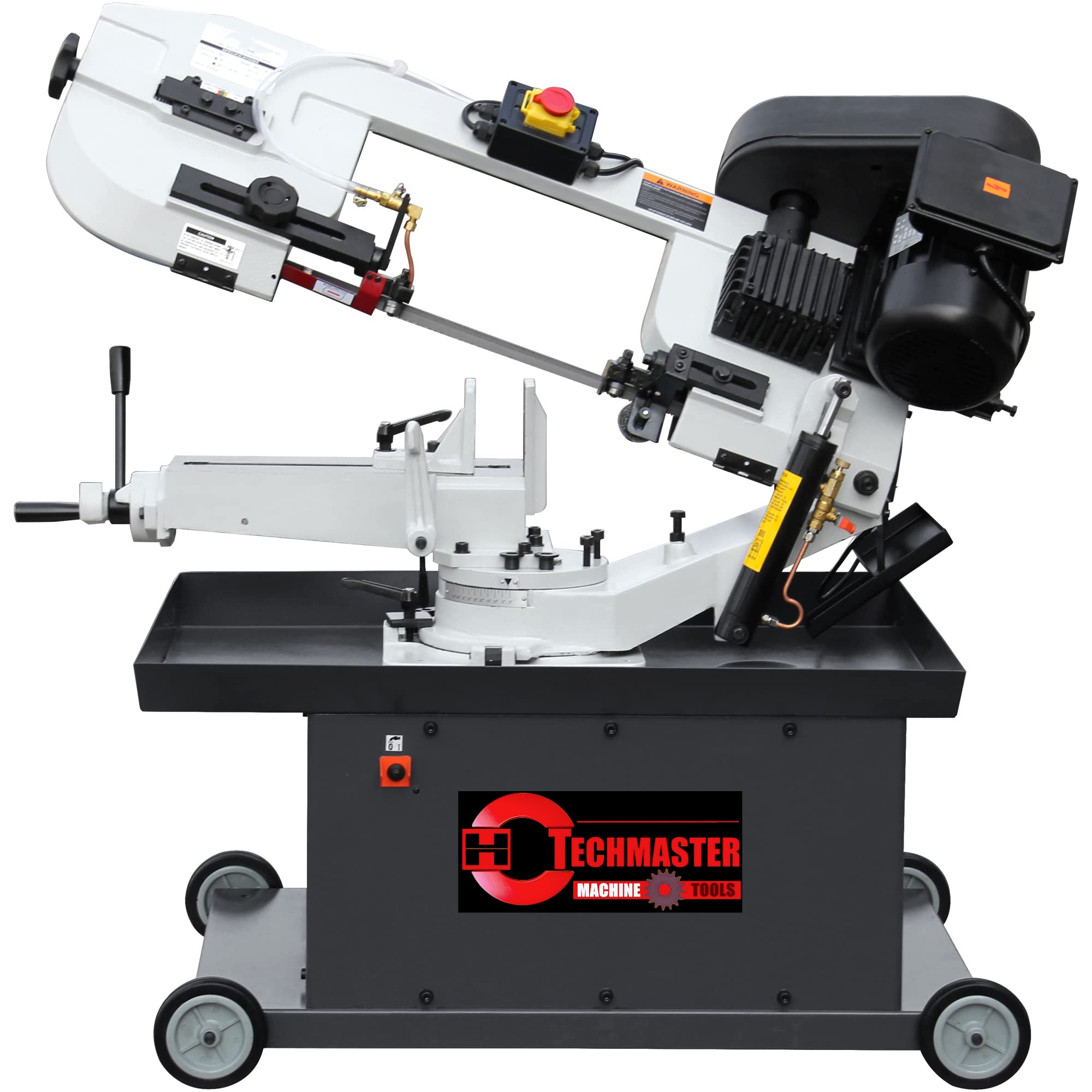

BS-712R ( BELT DRIVE )
| Quantity: | |
|---|---|
1.7” Round and 7”x8.25” Rectangular cutting capacity @90°
2.Miter bow head up to 45°
3.Belt drive to achieve 4 cutting speed
4.Coolant system for maximum cutting efficiency
5.Vertical cutting available (need extra table for vertical cutting)
6.Single phase for home use, and 3 phase for industrial workshop usage
7.Moves on wheels for portability.
Model | BS-712R | |
Capacity | Circular @ 90° | 178mm(7”) |
Rectangular @90° | 178x210mm(7”x8.25”) | |
Circular @45° | 127mm(5”) | |
Rectangular @45° | 85x140mm (3.33”x5.5”) | |
Blade speed | @60Hz | 27,41,59,78 MPM |
@50Hz | 22,34,49,64 MPM | |
Blade size | 20x0.9x2362mm | |
Motor power | 750W 1HP(3PH), 1.1KW 1.5HP(1PH) | |
Drive | V-belt | |
Packing size | 129x73x115cm | |
N.W./G.W. | 185/238 kg | |
