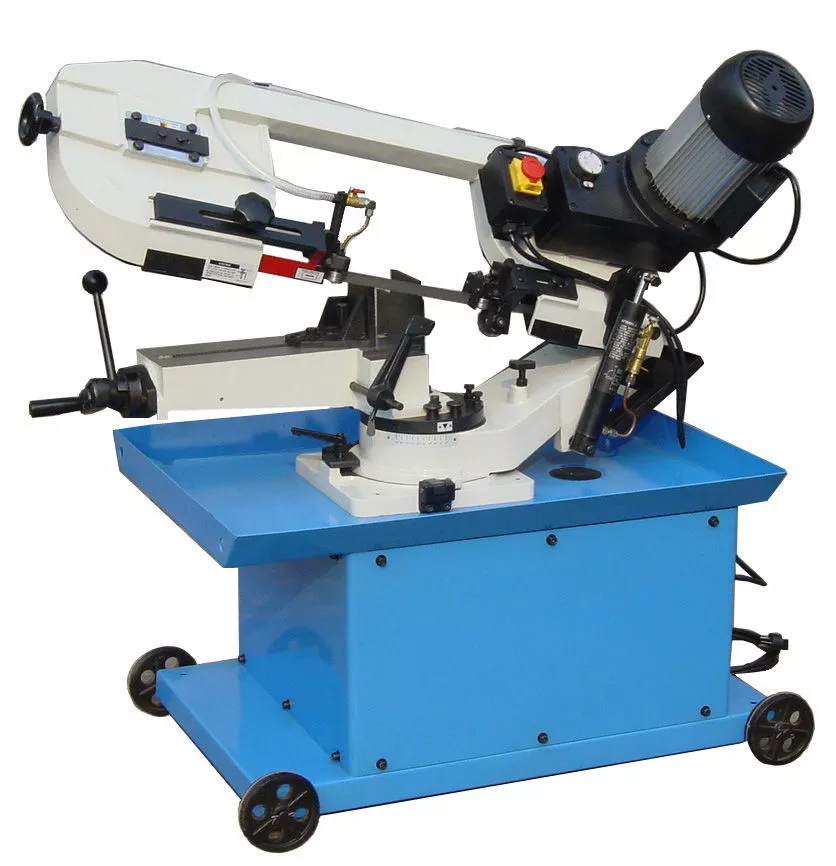

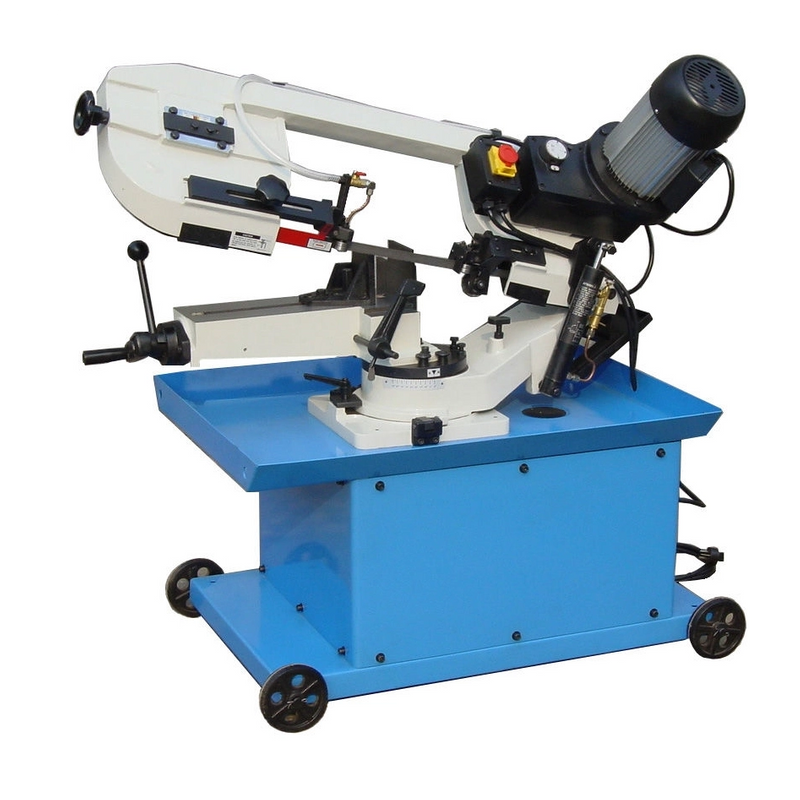

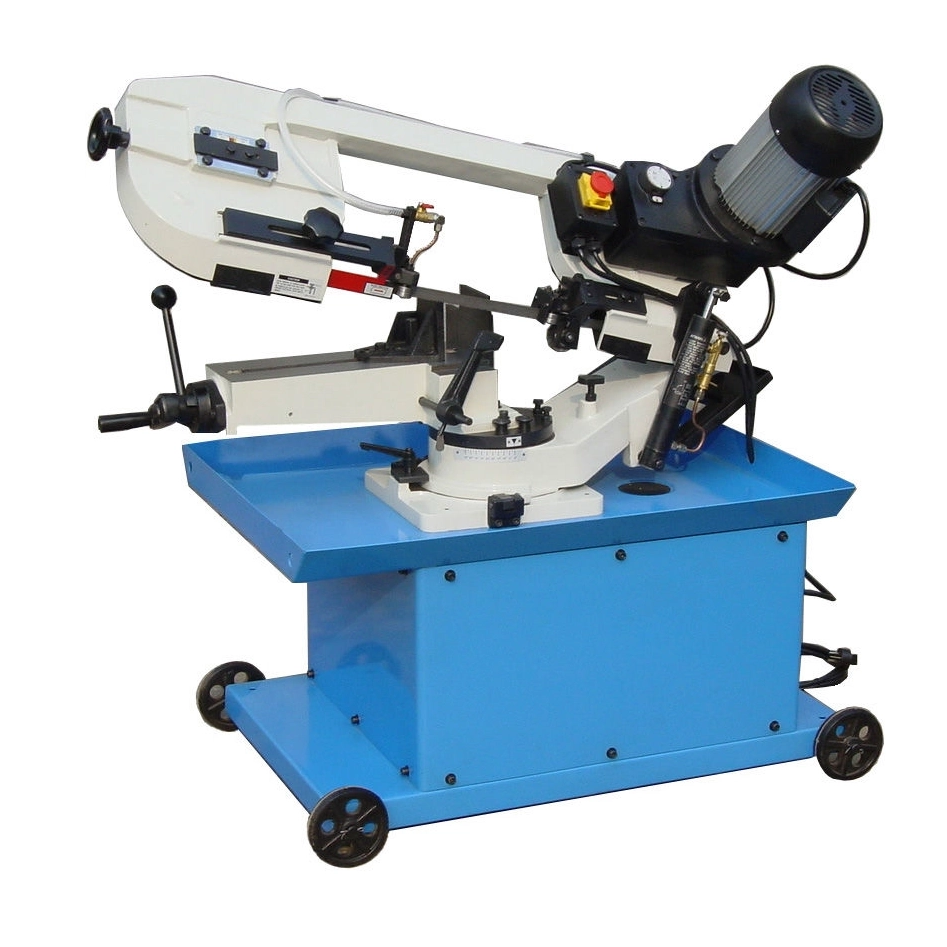

BS-712GR ( GEAR DRIVE )
| Quantity: | |
|---|---|
1. 7” Round and 7”x8.25” Rectangular cutting capacity @90°

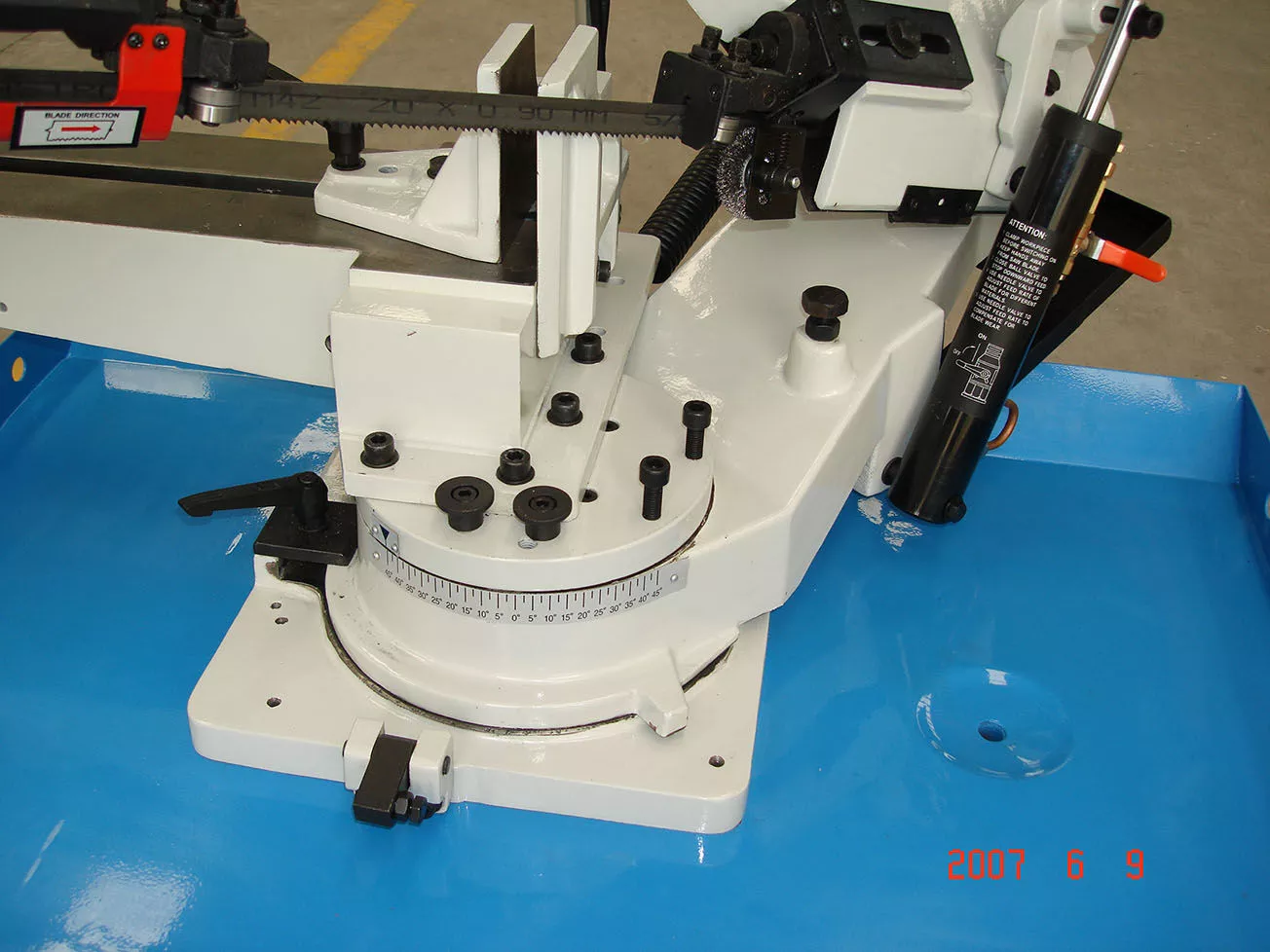

2. Miter bow head up to 45°
3. Gear drive, 3 cutting speed
4. Coolant system for maximum cutting efficiency
5. Vertical cutting available (need extra table for vertical cutting)
6. Single phase for home use, and 3 phase for industrial workshop usage
| Model | BS-712GR | |
| Cut Circular @90° | 178mm(7”) | |
| Cut Rectangular @90° | 178x210mm(7”x8.25”) | |
| Cut Circular @45° | 127mm(5”) | |
| Cut Rectangular @45° | 85x140mm (3.33”x5.5”) | |
| Blade speed @60Hz | 34, 70, 104 MPM | |
| Blade speed @50Hz | 29, 59, 87 MPM | |
| Blade size | 20x0.9x2362mm | |
| Motor power | 750W 1HP(3PH), 1.1KW 1.5HP(1PH) | |
| Drive | Gear | |
| Packing size | 132x77x115cm | |
| N.W./G.W. | 175/197 kg | |
Standard accessories:
Coolant system
Stop Rod
Optional accessories:
Vertical cutting table
