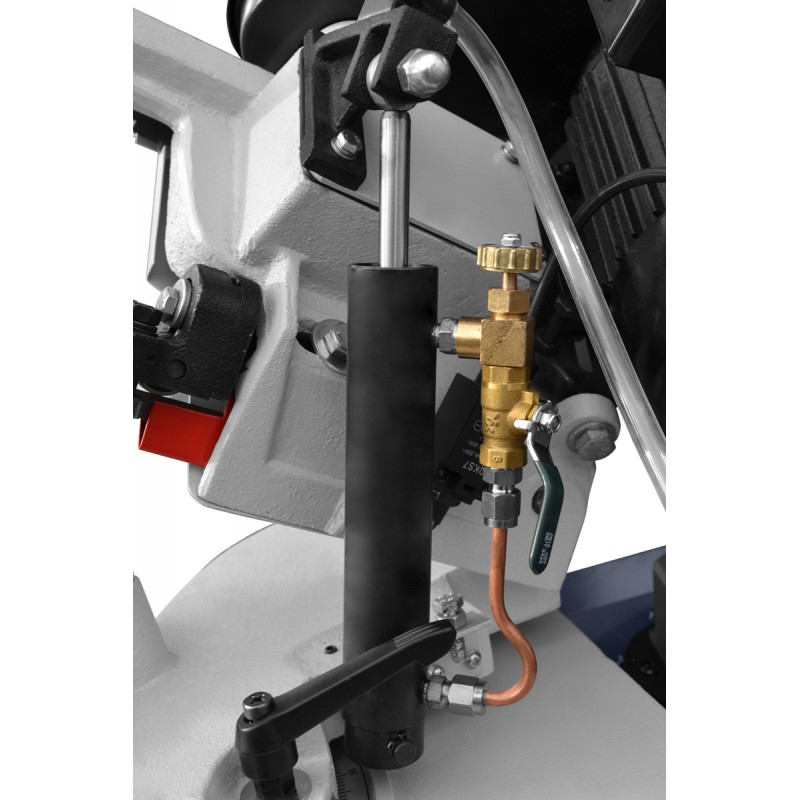

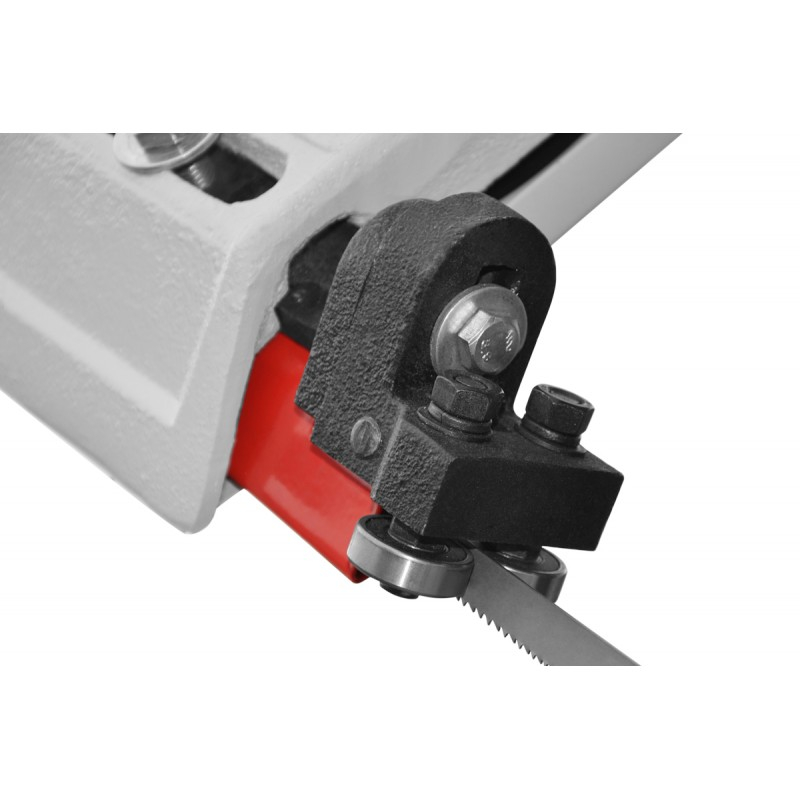

BS 128HDRC band saw for metal with optimal cutting range, designed for professional craftsmen, distinguished by efficiency and easy handling. Arm swivelling in both directions is a very big advantage in angled cutting. Despite small dimensions, its big weight (103 kg) makes it very stable and vibration-free during cutting larger materials. Element cut can be fed manually or via feeding machines. Feed during cutting is gravitational, with oil flow in a two-chamber hydraulic cylinder. Arm lowering control is ensured by a valve controlling oil flow between chambers of cylinder. Straight cut is achieved by a set of bearings guiding the band. Machines are equipped with a limiting switch and ON/OFF switch compliant with IP54. Swivelling saw frame for double bevelling within -45o - + 60o.
| Cutting band size | 1640×13×0.65 mm |
| Cutting speed | 23/34/54 m/min |
| Power | 0,55 kW/230V |
| Arm lowering control | stepless, through hydraulic cylinder |
| Cutting range | -45° - + 60° |
| Dimensions | 942×442×548 mm |
| Weight | 103 kg |
| Angle | ROUND | RECTANGLE | SQUARE |
| 0° | ø125 mm | 100×150 mm | 100×100 mm |
| -45 | ø90 mm | 90×75 mm | 90×90 mm |
| +45° | ø90 mm | 90×75 mm | 90×90 mm |
| +60° | ø55 mm | 55×55 mm | 55×55 mm |
3rd generation hydraulic cylinder
Table for vertical cuts
Quick-clamping vice
Coolant system
Workpiece limiter - bumper
Automatic limiting switches
Modern thermal engine protection
Mobile base with four wheels
User manual
