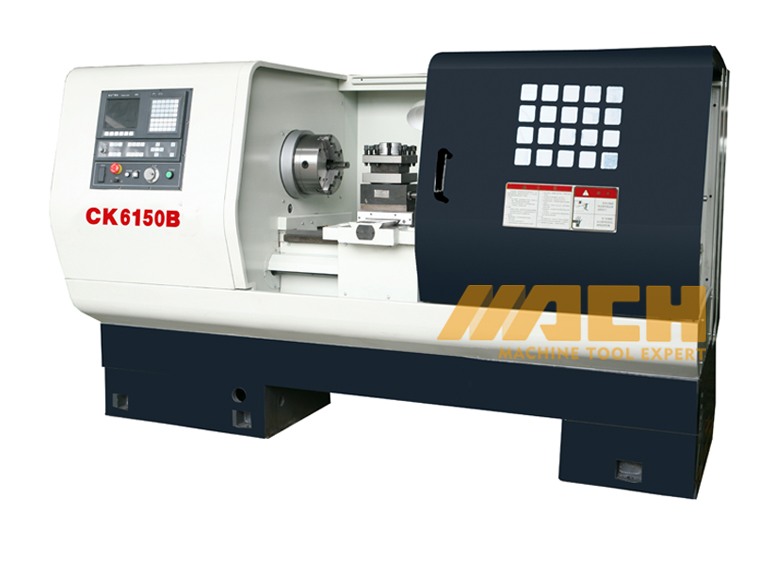

CNC Lathe Machine Model:CK6150B/6156B
| Quantity: | |
|---|---|
2.Either vertical or horizontal 3-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
3.Both chuck and tailstock are supplied with hydraulic or manual type.
4.The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
5.Variable spindle speed can be programmed as two rangs, that is high one and low one.
| ITEMS | CK6150B | CK6156B |
| Max. swing over bed | 500mm | 560mm |
| Max. swing over carriage | 310mm | 330mm |
| Width of bed | 405mm | 405mm |
| Maximum turned length | 750/1000/1500/2000/3000mm | |
| Max. turning length | 650/900/1400/1900/2900mm | |
| Spindle nose | A2-8 | |
| Spindle bore | 80mm | |
| Cone hole diameter and taper of spindle hole | MT.No7 | |
| Steps of spindle speed(Manual) | Variable | |
| Range of spindle speed | 400~1600rpm(high) 50~400 rpm(low) | |
| Rapid feed for Axis Z | 10m/min | |
| Rapid feed for Axis X | 8 m/min | |
| Max. travel of Axis Z | 720/970/1270/1970/2970mm | |
| Max. travel of Axis X | 300mm | 320mm |
| Min. input | 0.001mm | |
| Tool post stations | 4-ways or 6-ways | |
| Tool cross section | 32×32 mm | |
| External diameter | 75mm | |
| Taper of bore | MT.No.5 | |
| Max. Traverse | 150mm | |
| Power of main motor | 7.5 KW | |
| Power of cooling pump | 90W | |
| Overall dimensions(L×W×H) | 2250/2500/3000/3500/4500x1200x1520 | 2250/2500/3000/3500/4500x1200x1550 |
| Net weight | 2700/3000/3500/4000/4600㎏ | 2800/3100/3600/4100/4700㎏ |
