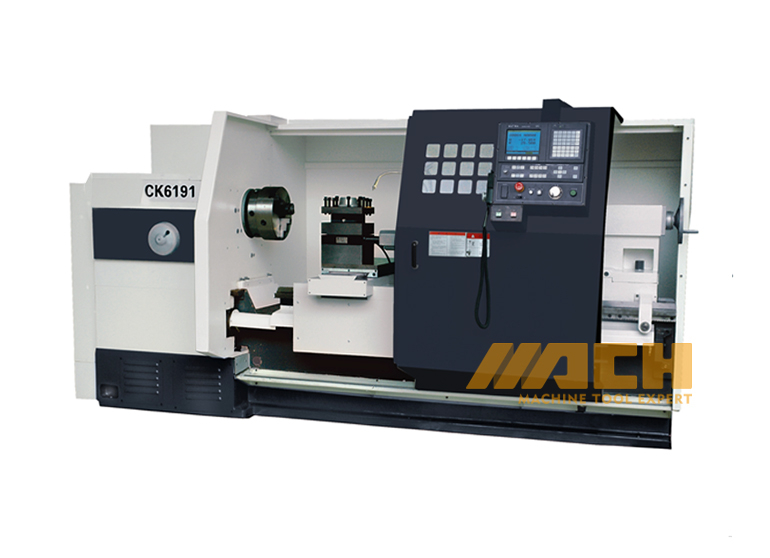

CNC Lathe Machine Model:CK6191B – CK62110B
| Quantity: | |
|---|---|
2.Either vertical or horizontal 3-station or 6-station tool post or gang tools can be selected.
3.The post is located on precision contrite gears with a high repeated positioning accuracy.
4.Both chuck and tailstock are supplied with hydraulic or manual type.
5.The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
6.Variable spindle speed can be programmed as two rangs, that is high one and low one.
| ITEMS | CK6191B/ CK6291B | CK61100B/CK62100B | CK61110B/CK62110B |
| Max. swing over bed | 910mm | 1000 mm | 1100 mm |
| Max. swing over carriage | 530mm | 620mm | 720mm |
| Width of bed | 600mm | ||
| Maximum turned length | 1.5/2/3/4mm | ||
| Max. turning length | 1350/1850/2850/3850mm | ||
| Max. weight between center | 2000kg | ||
| *over gap | 1100 mm | 1200 mm | 1300 mm |
| *Effective length of gap | 400 mm | ||
| Spindle nose | D11 | ||
| Spindle bore | 104mm | ||
| Cone hole diameter and taper of spindle hole | Metric 120 1：20 | ||
| Steps of spindle speed(Manual) | 4（Variable Within Each Step） | ||
| Range of spindle speed | 10~90，20~180，40~320，80~630r/min | ||
| Rapid feed for Axis Z | 10m/min | ||
| Rapid feed for Axis X | 8m/min | ||
| Max. travel of Axis X | 520mm | ||
| Min. input | 0.001mm | ||
| Tool post stations | 4-way | ||
| Tool cross section | 40×40mm | ||
| External diameter | 100mm | ||
| Taper of bore | M.T.NO.5 | ||
| Max. Traverse | 250mm | ||
| Power of main motor | 15KW | ||
| Power of cooling pump | 370W | ||
| 2m Overall dimensions(L×W×H) | 4200×2000×1930mm | 4200×2000×1980mm | 4200×2000×2030mm |
| Net weight | 6600Kg | 6770Kg | 6940Kg |
