1. Swing Over Bed: 750mm
2. Spindle Bore Diameter: 105mm

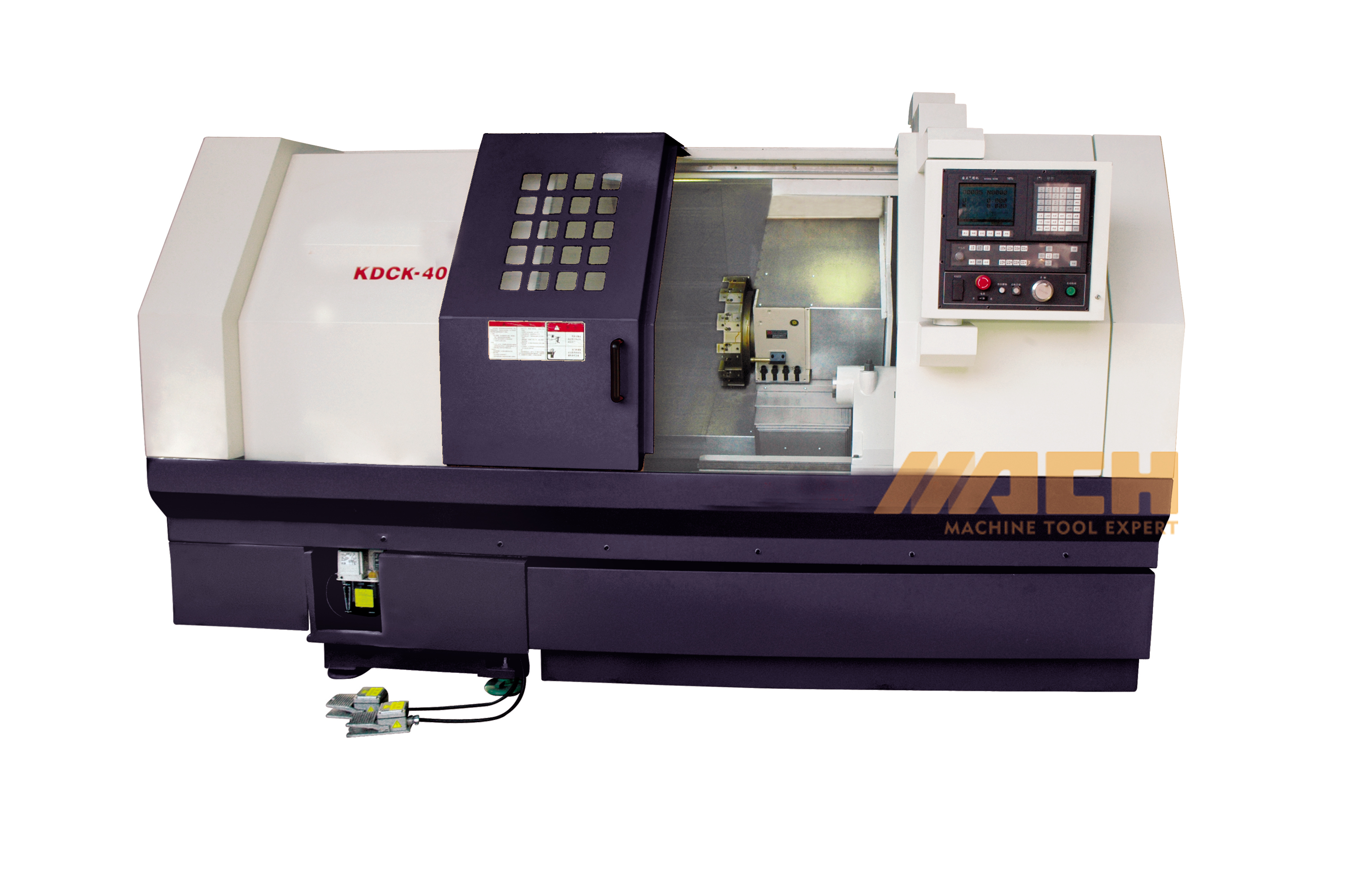

| ITEMS | KDCK-40 |
| Max. swing over bed | 750 mm |
| Max. swing over bed | 750 mm |
| Max. cutting dia. For axle parts | 350 mm |
| Maximum turned length for axie parts | 870 mm |
| Max. cross travel (X) | 370 mm |
| Max. longitudinal travel (Z) | 1050 mm |
| Spindle bore | 105 mm |
| Spindle nose | 220 mm |
| Spindle speed | 100~2000 rpm |
| Chuck dia. | 12″ |
| Rapid feed for axis X | 10m/min |
| Rapid feed for axis Z | 20m/min |
| Number of tool post | 12（Hydraulic） |
| Outside dia. Of cutting tool shand | 25×25 mm |
| Max. inner dia. Cutting tool shank | 32 mm |
| Guide ways X & Z | Precision linear ball rail |
| Tailstock sleeve dia. | 100mm |
| Tailstock sleeve travel | 210mm |
| Taper hole of tailstock quill | M.T.No.6 |
| Type of spindle motor | Servo |
| Spindle motor power | 15 KW |
| Bed structure | 30° slant bed |
| Min. Input | 0.001 mm |
| Repeatability | 0.006/0.008 mm |
| Capacity for coolant | 200L |
| Surface roughness | ≤Ra0.8μm(Nonferrous) |
| Overall dimensions（L×W×H） | 3375×2250×1965 mm |
| Net weight | 5400㎏ |
1.Bar feeder system
2.Hollowed hydraulic chuck
3.Automatic chip conveying system
4.Hydraulic tailstock
