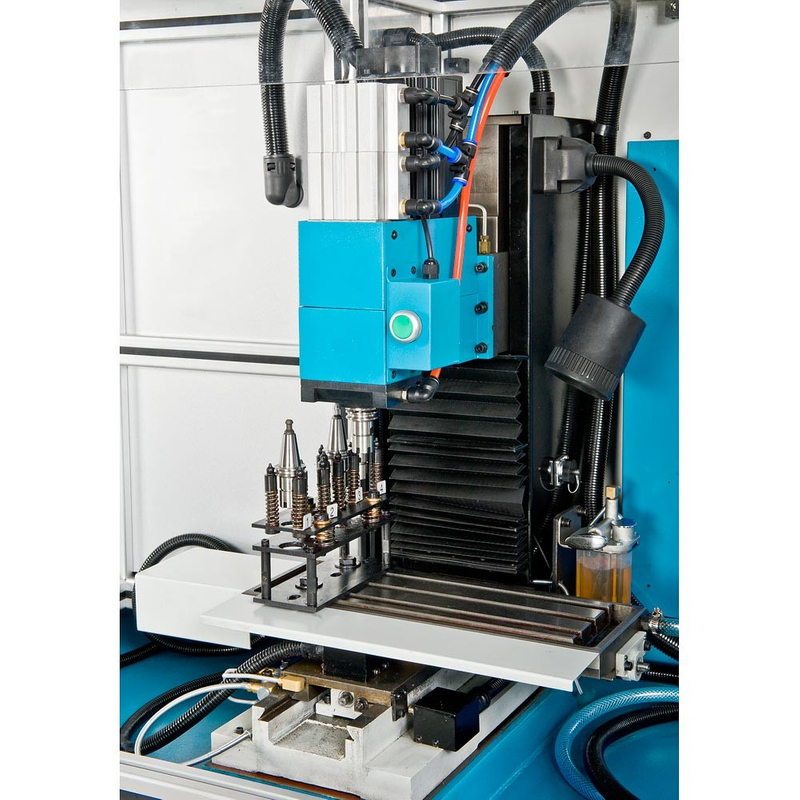

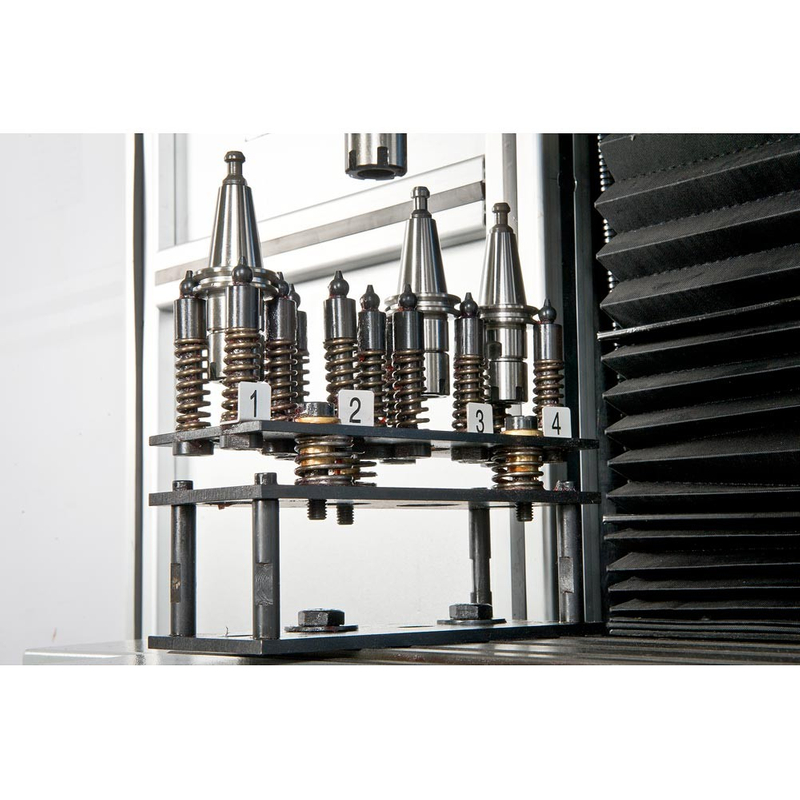

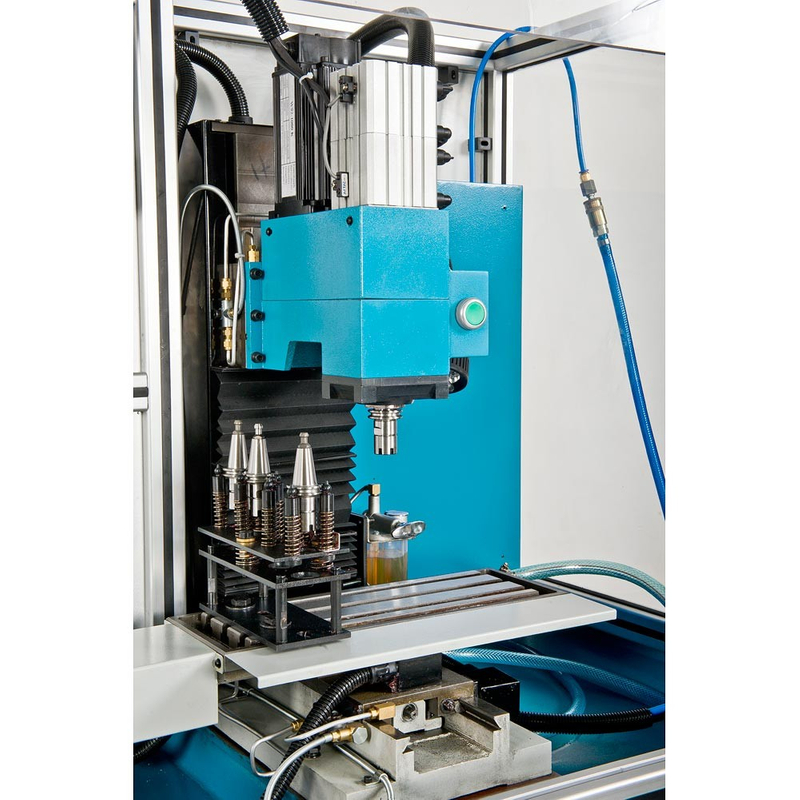

A highly accurate CNC milling machine, the iKX1 is predominantly manufactured in high grade cast iron, resulting in a stable and vibration system.It has a complete transparent enclosure allowing for the workpiece and the cutting tool to be viewed at all times and at all angles. This machine has a 4 tool Automatic Tool Change (ATC), meaning multiple tools can be set up at once giving a more continuous programme. A full range of accessories are available for this machine including a 4th axis and handwheel control. All our CNC machines come with an easy-to-use windows based operating system which has an in-built tuition program and accepts all G-code inputs.
Specification
Drilling Capacity
16mm
Model
iKX1
Motor
1,000W
Overall L x W x H
1,040 x 860 x 940mm
Power
230V
Spindle Speed
100-5,000 rpm
Spindle Taper
ISO20
Table Size
400 x 145mm
Throat
200mm
Travel X Axis
260mm
Travel Y Axis
152mm
Travel Z Axis
180mm
T Slot Size
3 x 12mm
4 Automatic Tool Changes (ATC)
Full transparent enclosure
PC based CNC system
0.015mm positional accuracy
0.01 repeatable position accuracy
Stepper motors
