Features
Vice complete with anti-burr device
Movable head 45° right and left
Reduction unit in oil bath
Membrane pump for coolant

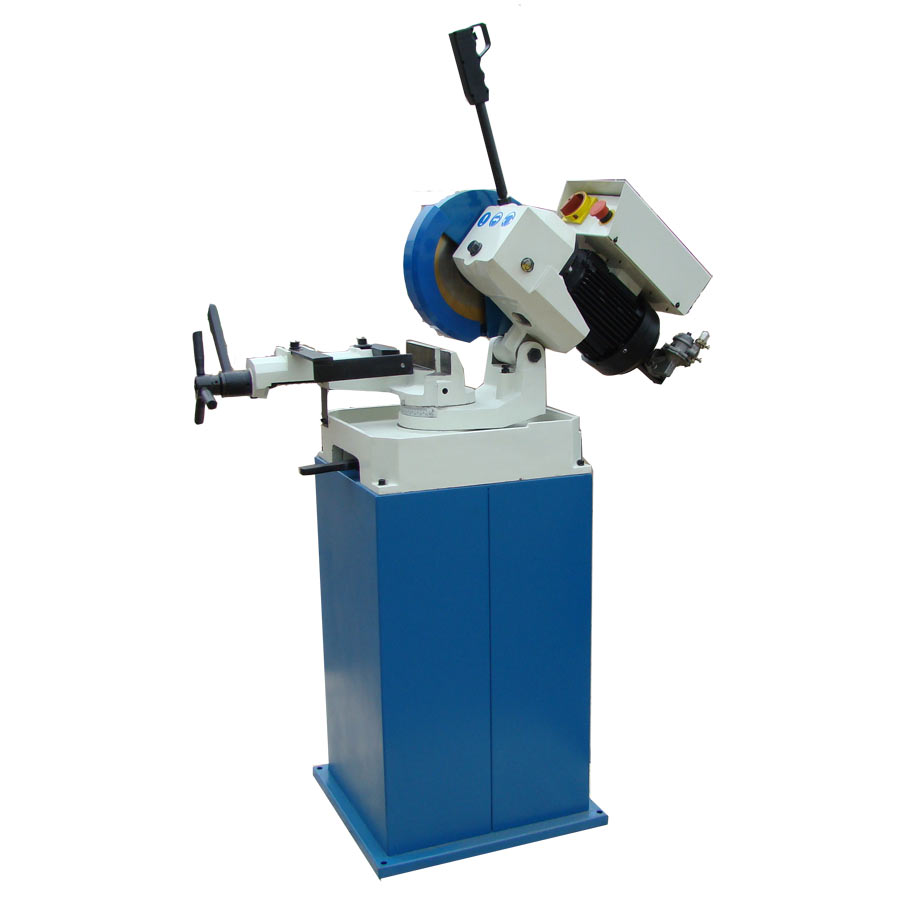

Our circular saw features a double speed motor and with low noise can slow down through worm and gear.
The HSS saw blade of our circular saw is highly efficient and durable.
The 24V low-voltage controlled hand switch is convenient for operation
The single clamp structure of CS250/275 can rotate 45°right and left to side for cutting.
The safety hood of saw blade opens or closes according to the cutting needs, making it safety.
The cooling system of circular saw can prolong the service life of saw blade and improve the precision of the workpiece.
Technical parameters
| Model | CS-275 | |
| Max. blade size | 275 mm(10.8”) | |
| Capacity | Circular @90° | 70mm(2.75’’) |
| Rectangular @90° | 90x45mm(3.5”x1.77”) | |
| Circular @45° | 65mm(2.56”) | |
| Rectangular @45° | 70x45mm(2.75”x1.77”) | |
| Blade speed @50HZ | 42rpm | |
| Vice opening | 100mm(4”) | |
| Motor power | 1.1kW 1.5HP | |
| Drive | Gear | |
| Packing size | 89x58x74cm(body) 77x46x33cm(stand) | |
| N.W/G.W | 148/174kg | |
