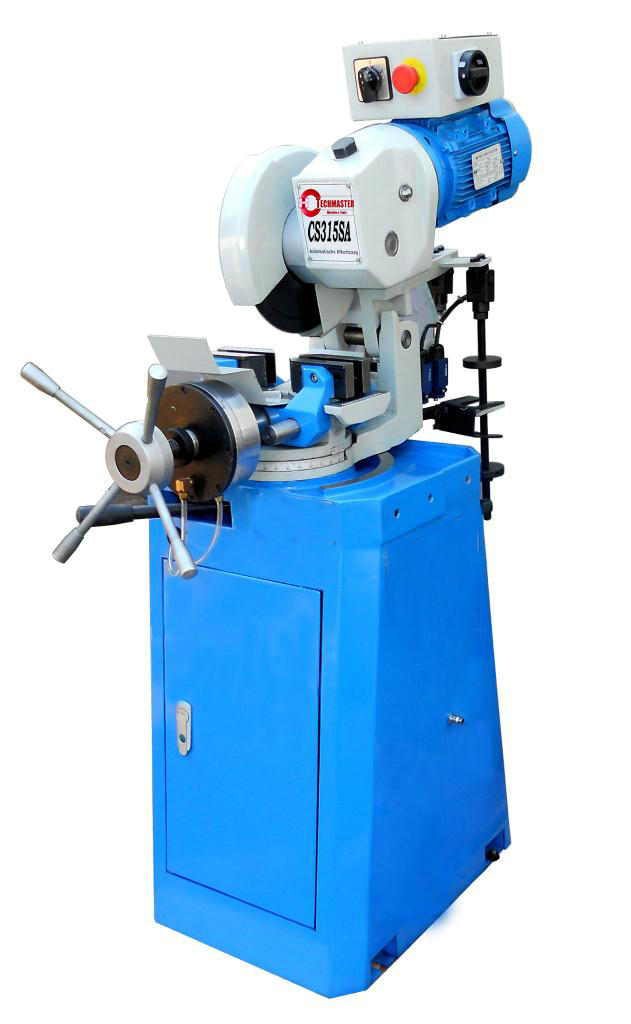

| Model | CS275A | CS315A | CS350A | |
| Head rotation | ±45° | ±45° | ±45° | |
| Speeds | 48/96rpm | 19/38rpm | 19/38rpm | |
| Max. opening | 110mm | 140mm | 150mm | |
| Clamping Vice | Double | Double | Double | |
| Motor power | 1.4/2.0kw | 0.75/1.5kw | 1.1/1.5kw | |
| Coolant pump Motor | 40W | 40W | 40W | |
| Air Pressure | 6Kg/cm2(1201/min) | 6Kg/cm2(1201/min) | 6Kg/cm2(1201/min) | |
| Saw blade size | Max. diameter | Φ275mm | Φ315mm | Φ350mm |
| | Bore | Φ40mm | Φ40mm | Φ40mm |
| | Pin holes | 2xΦ8xPCD55mm | 2xΦ8xPCD55mm | 2xΦ8xPCD55mm |
| 0°Max. cutting capacity | Round | Φ60mm | Φ70mm | Φ120mm |
| | Square | 60x60mm | 70x70mm | 120x120mm |
| | Rectangle | 100x60mm | 130x70mm | 135x110mm |
| 45°Max. cutting capacity | Round | Φ60mm | Φ70mm | Φ110mm |
| | Square | 60x60mm | 70x70mm | 110x110mm |
| | Rectangle | 70x60mm | 90x70mm | 110x90mm |
| Packing dimensions（LXWXH） | 1040X560X1470mm | 1100X630X1560mm | 1130X650X1580mm | |
| NW/GW | 220/250Kg | 280/320Kg | 300/350Kg | |
