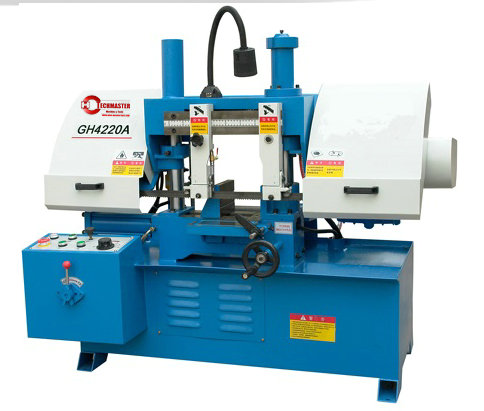

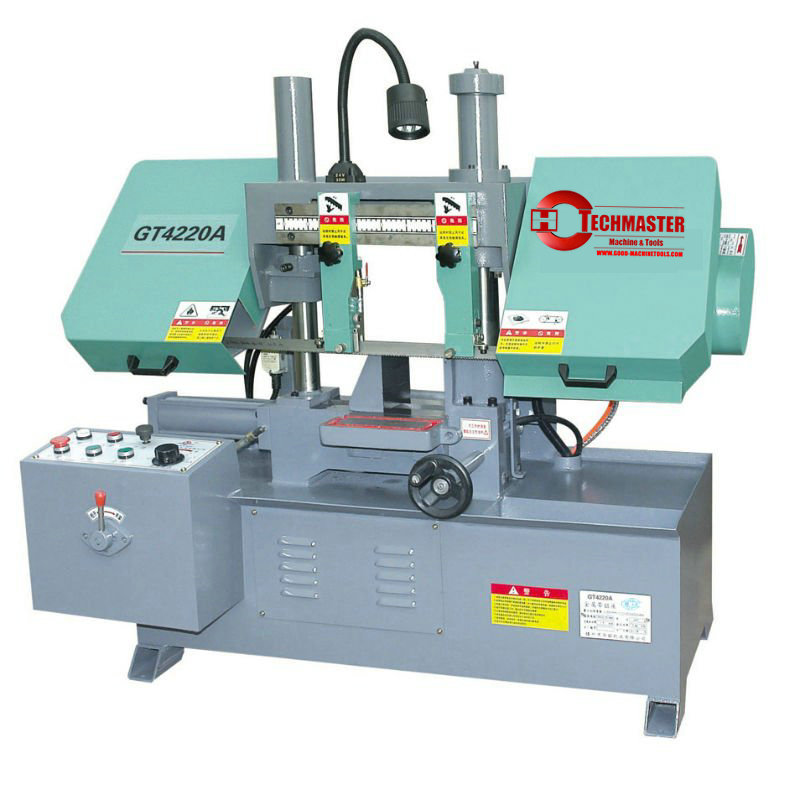

| MODEL | UNIT | GH4220A./GT4220A |
| Main Motor Power | Kw | 1.5 |
| Hydraulic Motor Power | Kw | 0.55 |
| Coolant Pump Motor Power | Kw | 0.04 |
| Blade Linear Speed | M/Min | 27/45/69 |
| Blade Feed Type | | Hydraulic Stepless |
| Main Drive Structure | | Worm Wheel |
| Blade Size | Mm | 2800*27*0.9 |
| Machine Dimensions (L*W*H) | Mm | 1400*900*1100 |
| Blade Tension Type | | Manual |
| Workpiece Feed Type | | Manual |
| Workpiece Clamp Type | | Hydraulic |
| N.W. | Kg | 260 |
| Cutting Range (Round) | Mm | Φ200 |
| Cutting Range (Rectangular) | Mm | 200*200 |
