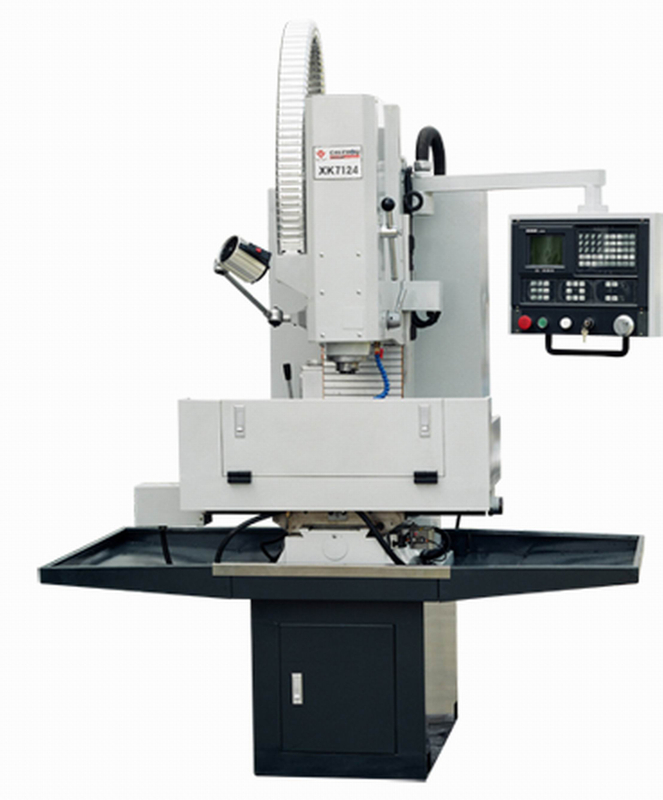

ECONOMICAL CNC MILLING MACHINE XK7124 7124A XK7124B
| Quantity: | |
|---|---|
1. Used for machining box parts, shell parts, disc-shaped parts.
2. Column and guide way is ground precisely with high precision
3. Two style of tool change are available, manually and pneumatically.
4. CNC control system could be adapted by step motor or servo motor, providing good cost-effective scheme to customers.
5. Machine stand and machine body are designed separately for easy and flexible installment by user.
| Model | XK7124、7124A | XK7124B | |
| WORKTABLE | Size of worktable(L×W)(mm) | 800×240 | 800×240 |
| 900×240 Optional | 900×240 Optional | ||
| T slot(width ×qty×spaces)(mm) | 16×3×60 | 16×3×60 | |
| Max loading weight on worktable(kg) | 60 | 60 | |
| TRAVEL | X/Y/Z-Axis travel(mm) | 430×280×400 | 430×280×400 |
| 530×280×400 | 530×280×400 | ||
| Distance between spindle nose and table(mm) | 60-460 | 50-450 | |
| 50-550 | |||
| Distance between spindle center and column(mm) | 297 | 297 | |
| SPINDLE | Spindle speed(r/min) | 100-4000 | 100-6000 |
| Spindle taper | BT30 | BT30 | |
| Tool clamping way | Manual/Pneumatic | Pneumatic | |
| ATC capacity(optional) | no | 4pcs Simple ATC | |
| FEEDING | Feeding speed(mm/min) | 0-2000 | 0-2000 |
| Rapid feeding speed:X,Y,Z axis(m/min) | 6 | 6 | |
| ACCURACY | Positioning accuracy(mm) | 0.04 | 0.04 |
| Repeatability accuracy(mm) | 0.02 | 0.02 | |
| Min.set unit(mm) | 0.001 | 0.001 | |
| MOTOR | Main motor power (kw) | 1.5(A/C motor) | 2.2/3.7 |
| Feeding motor power:X/Y/Z Axis(kw) | 1/1/1 | 1/1/1.5 | |
| TOOLS | Max.size of tool(mm) | Φ60×175 | Φ60×175 |
| Max.loading weight of Tool(kg) | 3.5 | 3.5 | |
| OTHERS | N.W(include machine stand)(kg) | 900 | 1000 |
| Overall size(L×W×H)(mm) | 1640×1205×1950(2050) | 1640×1205×1950(2050) | |
| Packing size(L×W×H)(mm) | 1900×1620×2480(2580) | 1900×1620×2480(2580) | |
| Loading amount(20") | 3sets | 3sets |
