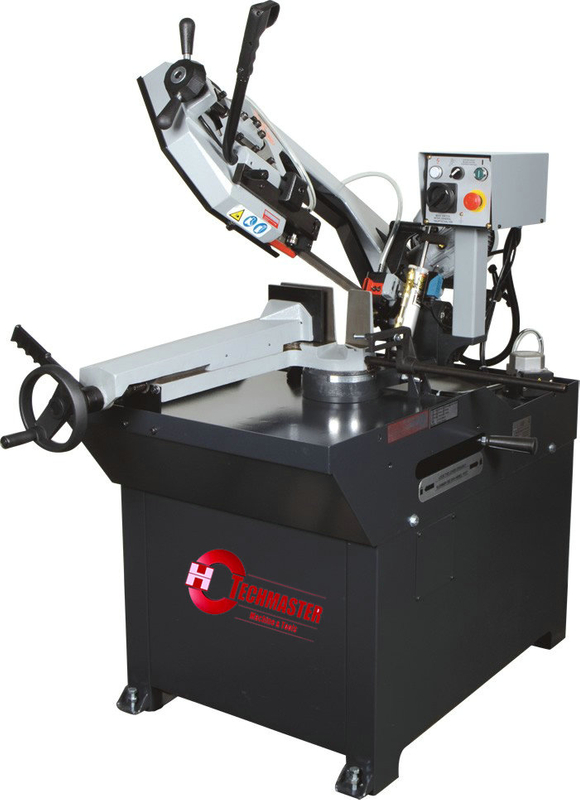

| Model | G4023 |
| Description | 9"metal band saw |
| Motor(W) | 1100(230V)1100/590(380V) |
| Blade size(mm) | 2460×27×0.9 |
| Blade speed(m/min) | 72(230V),87(110V),72/36(380V) |
| The bow swivel degree | 0°-60° |
| Cutting capacity at 90° | 220mm 220×220mm260×110mm |
| Cutting capacity at 45° | 150mm145×145mm |
| Cutting capacity at 60° | 90mm85×85mm |
| N.W./G.W.(kgs) | 220/264 |
| Packing size(mm) | 1450×570×1040(body) 830×780×170(stand) |
| Unit/20' container | 28pcs |
| Model | G4023 |
| Description | 9"metal band saw |
| Motor(W) | 1100(230V)1100/590(380V) |
| Blade size(mm) | 2460×27×0.9 |
| Blade speed(m/min) | 72(230V),87(110V),72/36(380V) |
| The bow swivel degree | 0°-60° |
| Cutting capacity at 90° | 220mm 220×220mm260×110mm |
| Cutting capacity at 45° | 150mm145×145mm |
| Cutting capacity at 60° | 90mm85×85mm |
| N.W./G.W.(kgs) | 220/264 |
| Packing size(mm) | 1450×570×1040(body) 830×780×170(stand) |
| Unit/20' container | 28pcs |
