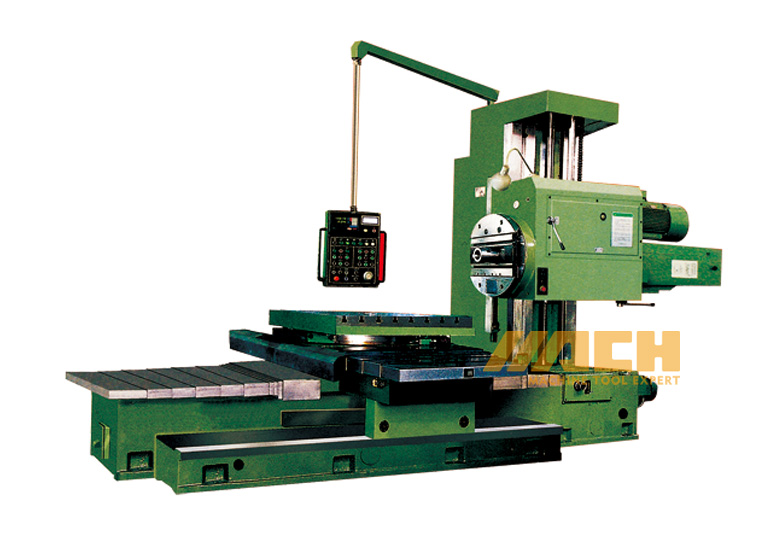

Horizontal Milling Machine and Boring Machine Model:TP(X)6111B
| Quantity: | |
|---|---|
2. X axis Travel of workable: 900mm
3. Z axis Travel of workable: 1000mm
4. Max. load of worktable: 2500kgs
| Specification | unit | TP(X)6111B |
| Worktable : | | |
| Table size | mm | 1100*960 |
| T slot | no | 7 |
| Centre distance | mm | 22 |
| T-Width | mm | 140 |
| Max. load of worktable | kg | 2500 |
| Machining range : | | |
| Longitudinal travel | mm | 1000 |
| Cross travel | mm | 900 |
| Headstock vertical travel | mm | 900 |
| Spindle axis to table surface | mm | 0-900 |
| Rotary table rotational type | | Manual |
| Spindle : | | |
| Spindle taper | | Morse No.6 |
| Boring spindle diameter | mm | 110 |
| Speed Range /steps | rpm | 8-1000/22 |
| Max.spindle torque | Nm | 1225 |
| Max. spindle thrust | N | 12250 |
| Max. facing head torque | Nm | 1960 |
| Quill travel | mm | 600 |
| Facing slide travel | mm | 180 |
| Motor | | |
| Spindle motor power | kw | 7.5 |
| Rapid feed motor power | kw | 3 |
| Feed : | | |
| Rapid feed for spindle, headstock, worktable | mm /min | 2500 |
| Range of spindle, headstock and table feeds per spindle revolution | 8-400r/min | 0.04-6mm |
| 500-1000r/min | 0.01-1.88mm | |
| Others | |
|
| Overall dimension | mm | 4910*2454*2750 |
| N/W | KG | 13000 |
2. X axis Travel of workable: 900mm
3. Z axis Travel of workable: 1000mm
4. Max. load of worktable: 2500kgs
| Specification | unit | TP(X)6111B |
| Worktable : | | |
| Table size | mm | 1100*960 |
| T slot | no | 7 |
| Centre distance | mm | 22 |
| T-Width | mm | 140 |
| Max. load of worktable | kg | 2500 |
| Machining range : | | |
| Longitudinal travel | mm | 1000 |
| Cross travel | mm | 900 |
| Headstock vertical travel | mm | 900 |
| Spindle axis to table surface | mm | 0-900 |
| Rotary table rotational type | | Manual |
| Spindle : | | |
| Spindle taper | | Morse No.6 |
| Boring spindle diameter | mm | 110 |
| Speed Range /steps | rpm | 8-1000/22 |
| Max.spindle torque | Nm | 1225 |
| Max. spindle thrust | N | 12250 |
| Max. facing head torque | Nm | 1960 |
| Quill travel | mm | 600 |
| Facing slide travel | mm | 180 |
| Motor | | |
| Spindle motor power | kw | 7.5 |
| Rapid feed motor power | kw | 3 |
| Feed : | | |
| Rapid feed for spindle, headstock, worktable | mm /min | 2500 |
| Range of spindle, headstock and table feeds per spindle revolution | 8-400r/min | 0.04-6mm |
| 500-1000r/min | 0.01-1.88mm | |
| Others | |
|
| Overall dimension | mm | 4910*2454*2750 |
| N/W | KG | 13000 |
