METAL CUTTING BAND SAW BF 210 SC M PRO-MANUAL AND CONTROLLED DESCE

  • BF 210 SC M PRO-MANUAL AND CONTROLLED DESCE

Quantity:
CARACTERISTICAS / FEATURES / CARACTERISTIQUES

ES Tronzadora de sólido diseño y transmisión por engranajes, con:
Mordaza de acción rápida
Cabezal giratorio de 0-60º
Bomba de refrigerante con doble circuito
Descenso mediante pistón hidráulico o manual
Facilidad de ajuste del ángulo de corte
Amplia base para una buena estabilidad
Paro automático al finalizar el corte
Guías de hoja apoyada sobre doble tren de rodamientos de bolas
Cepillo metálico de limpieza de la hoja
Interruptor de emergencia
Interruptor de seguridad de tensión de la hoja
Interruptor de seguridad de apertura de tapa
Manómetro de tensión de hoja

EN Strong design band saw and driven by gears with:

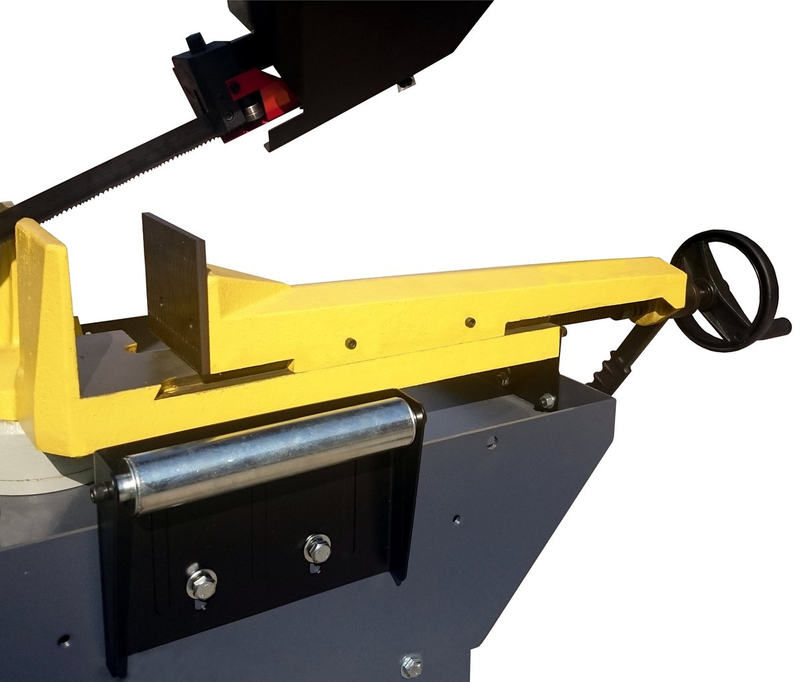

Quick action clamping vise
Swivel headstock 0~60º
Cooling system with double circuit

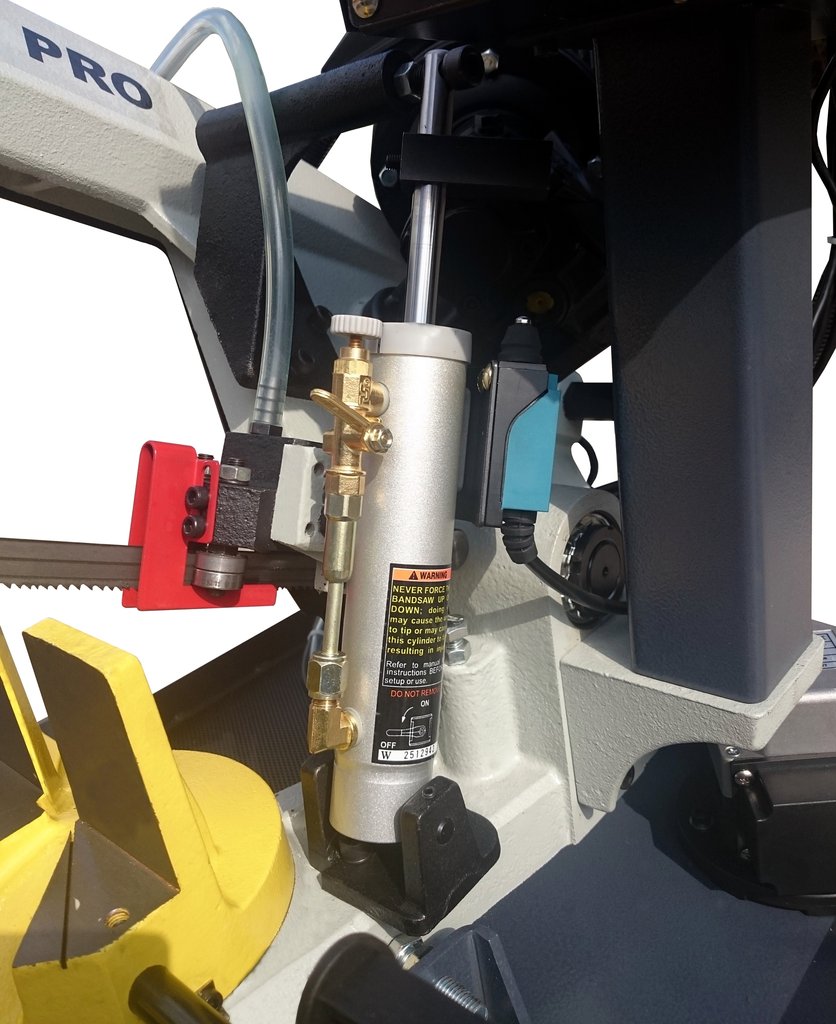

Descent by hydraulic piston or manual
Easy cutting angle adjustment
Automatic stop when cut is finished
Blade guides on double ball bearing train
Metal brush for blade cleaning
Emergency switch
Blade tension limit switch
Cover limit switch

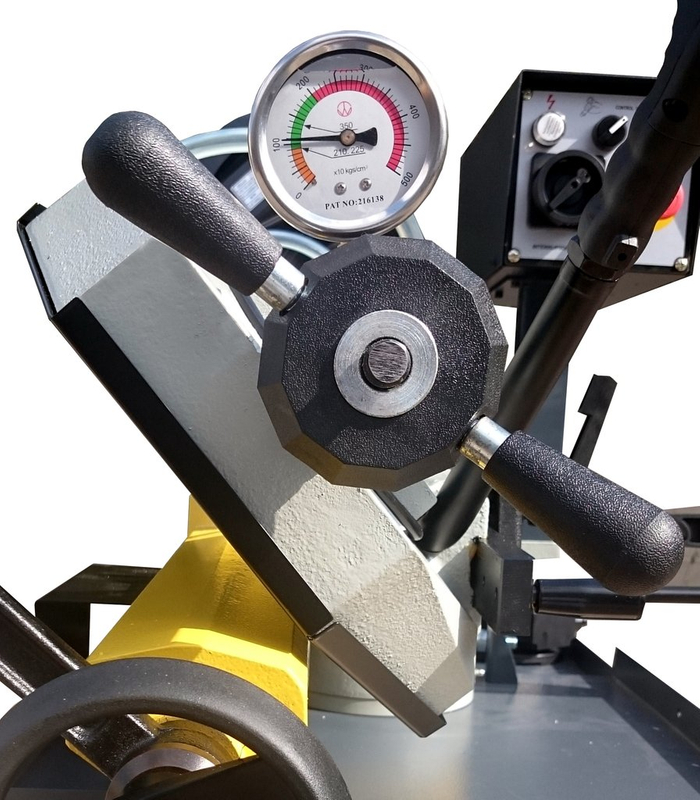

Tension manometer

FR Bande conception fort vu et entraînée par des engrenages avec:
Étau à serrage rapide
Poupée pivotant 0~60º
Système de refroidissement à double circuit
Descente par piston hydraulique ou manuelle
Réglage facile angle de coupe
Arrêt automatique en cas de coupure est terminée
Les guides de lame sur le train à billes double
Brosse métallique pour nettoyer la lame
Interrupteur d’urgence
Interrupteur de limite de tension de la lame
Fin de course Couverture
Manomètre Tension

DATOS TÉCNICOS / TECHNICAL SPECIFICATIONS / CARACTERISTIQUES TECHNIQUES
BF 210 SC M PRO
Alimentación / Voltage / Alimentation V 230  - F1
Potencia / Power / Puissance Kw - Hp 0,75 - 1
Velocidad / Speed / Vitesse r.p.m. 90
Capacidad corte 90º / Cutting capacity 90º / Capacité de coupe à 90° 170 / 210x95 / 170x170
Capacidad corte 45º / Cutting capacity 45º / Capacité de coupe à 45° 120 / - / 110x110
Capacidad corte 60º / Cutting capacity 60º / Capacité de coupe à 60° 70 / - / 60x60
ap. corte 45º izq. / Cutting capacity 45º L. / Cap. de coupe à 45° -
Apertura mordaza / Vice opening / Vice ouverture mm. 210
Desarrollo sierra / Blade size / Dimension de la lame mm. 2110x0,9x20
eso / Weight / Poids kg. 156 / 170
Dimensiones / Dimensions / Dimensions mm. 1156x572x826
