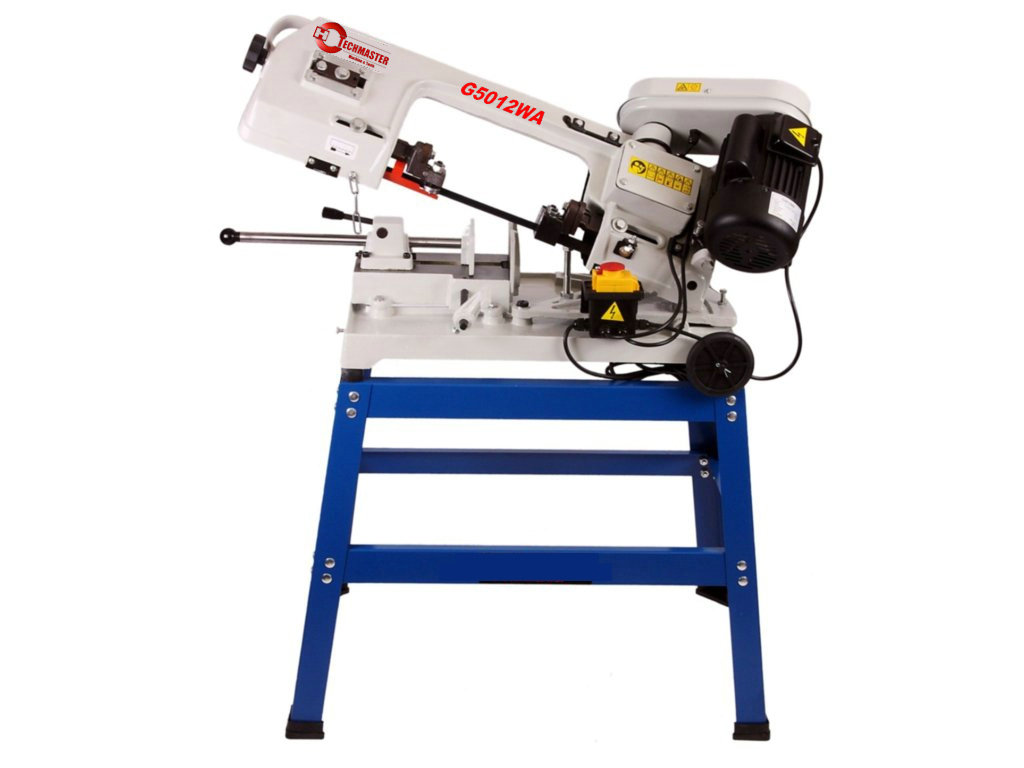

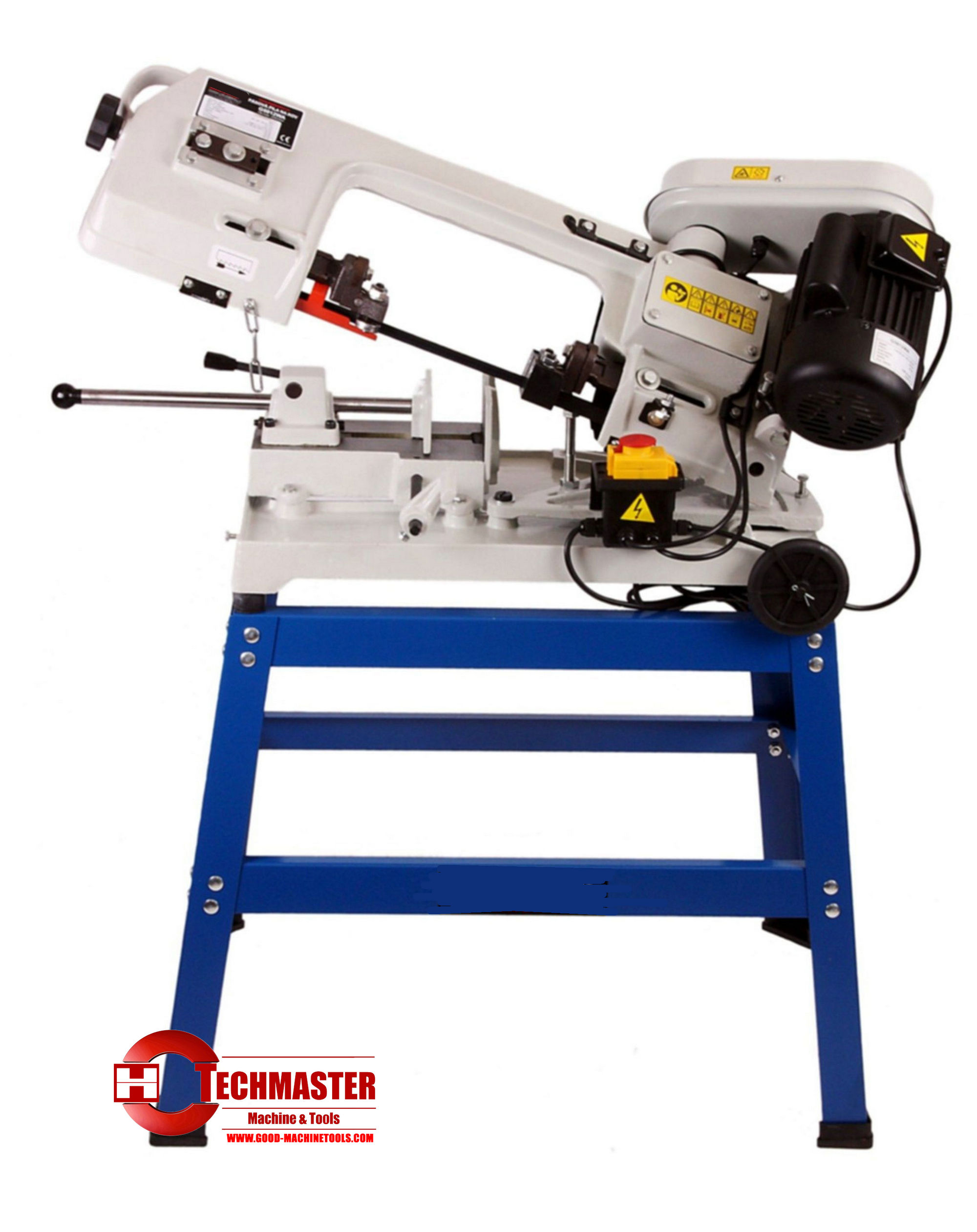

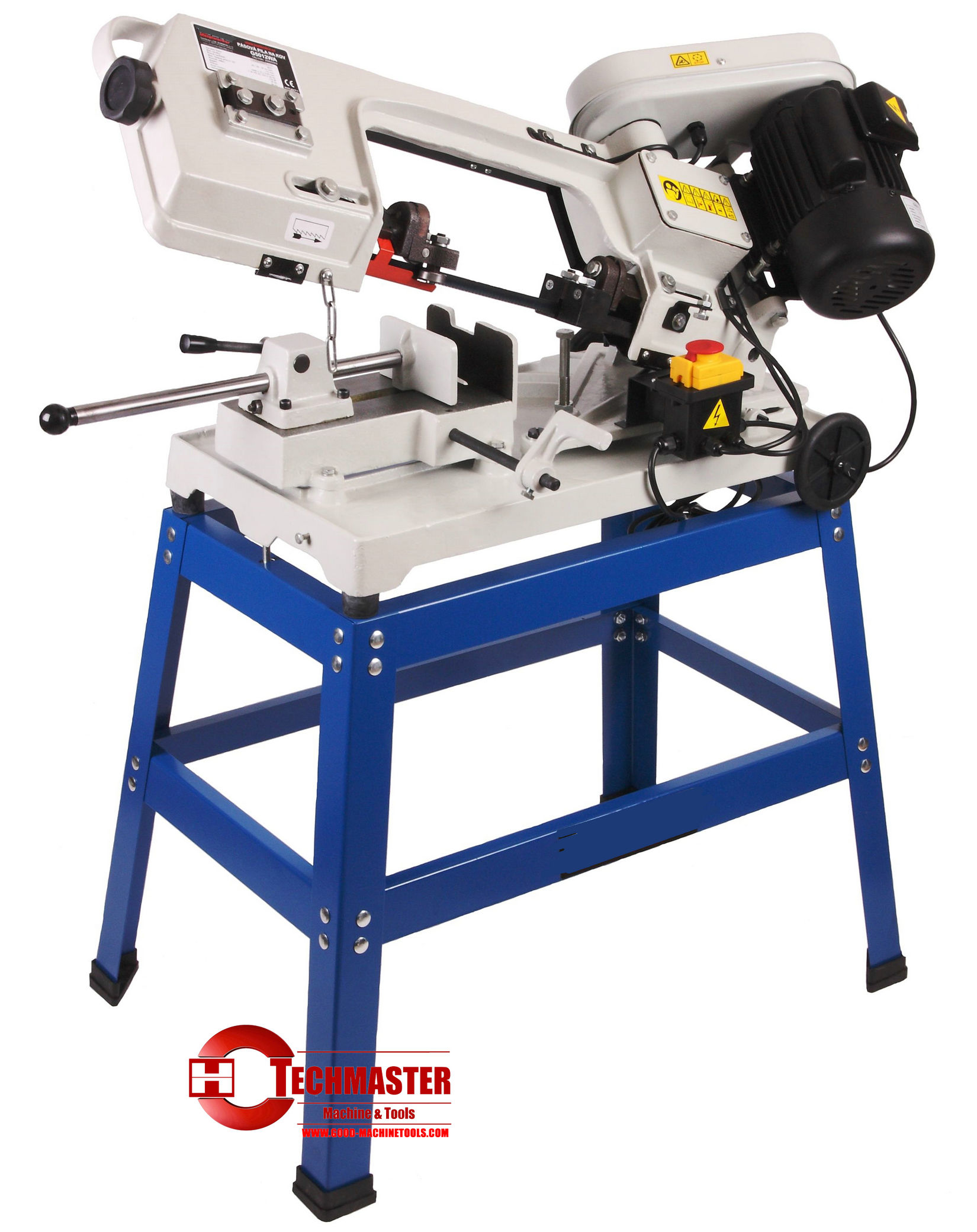

The portable band-saw for metal cutting G5012WA is distinguished by high efficiency and easy operation. A swivel vice secures cutting optimal range. These machines are an interesting proposal for every professional craftsman. Small dimensions enable taking the machine to building sites, assemblies etc.
The band-saw arm made of shaped spheroidal cast iron secures rigidity during operation and absorbs all types of vibrations.
Three speeds of the band operation adjusted on a belt transmission.

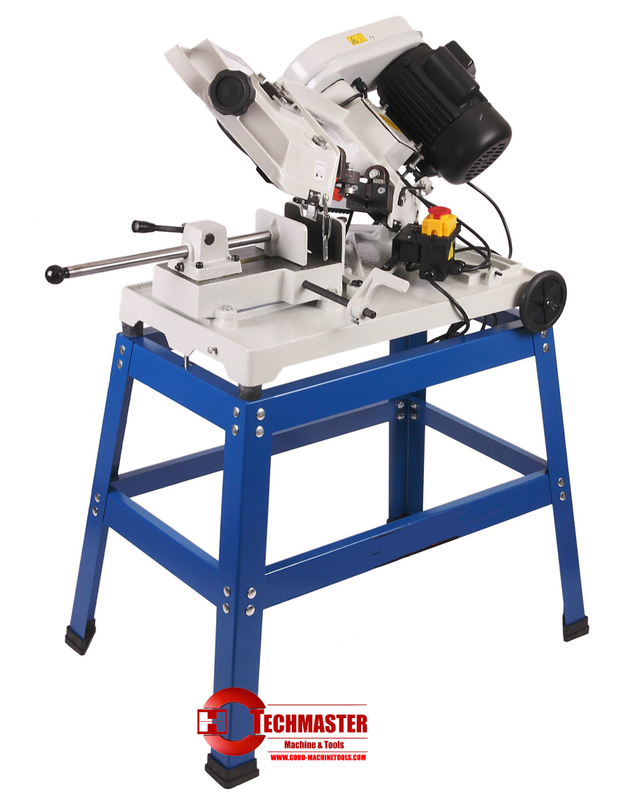

A swivel vice secures material cutting at an angle of 0 – 45o.
Suitable band tilt angle given by a set of bearing rollers.
Cutting straightforwardness secures a set of the bearings guiding the band.
A cast iron work table on which is a vice clamping material and to which the machine arm is fixed, translates directly into the machine stability.
Electrical installation meets all CE requirements. The machine has a limit switch stopping the machine after the cutting process is ended, an emergency button so called safety button consistent with IP 54.
The machine is equipped with a quick-clamping vice and a limiter of worked element, in a standard version.
| Příkon | 370 W |
| Napětí | 230 V/400V |
| Řezná rychlost | 20 - 29 - 51 m/min. |
| Max. řezaný průměr | (90°)110,(45°)100 mm |
| Max. řezaný materiál (š x v) při 90° | 150 x 110 mm |
| Max. řezaný materiál (š x v) při 45° | 80 x 60 mm |

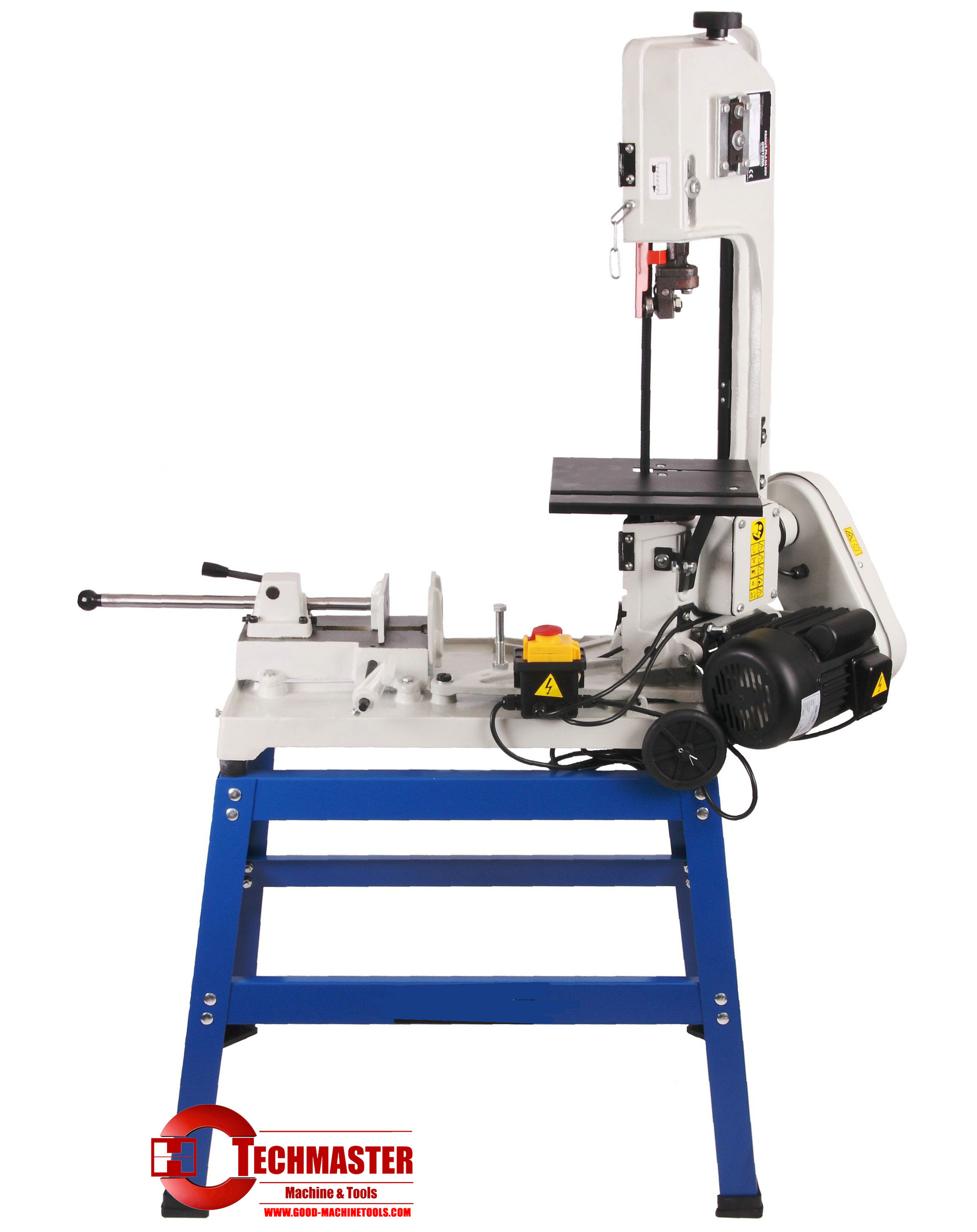

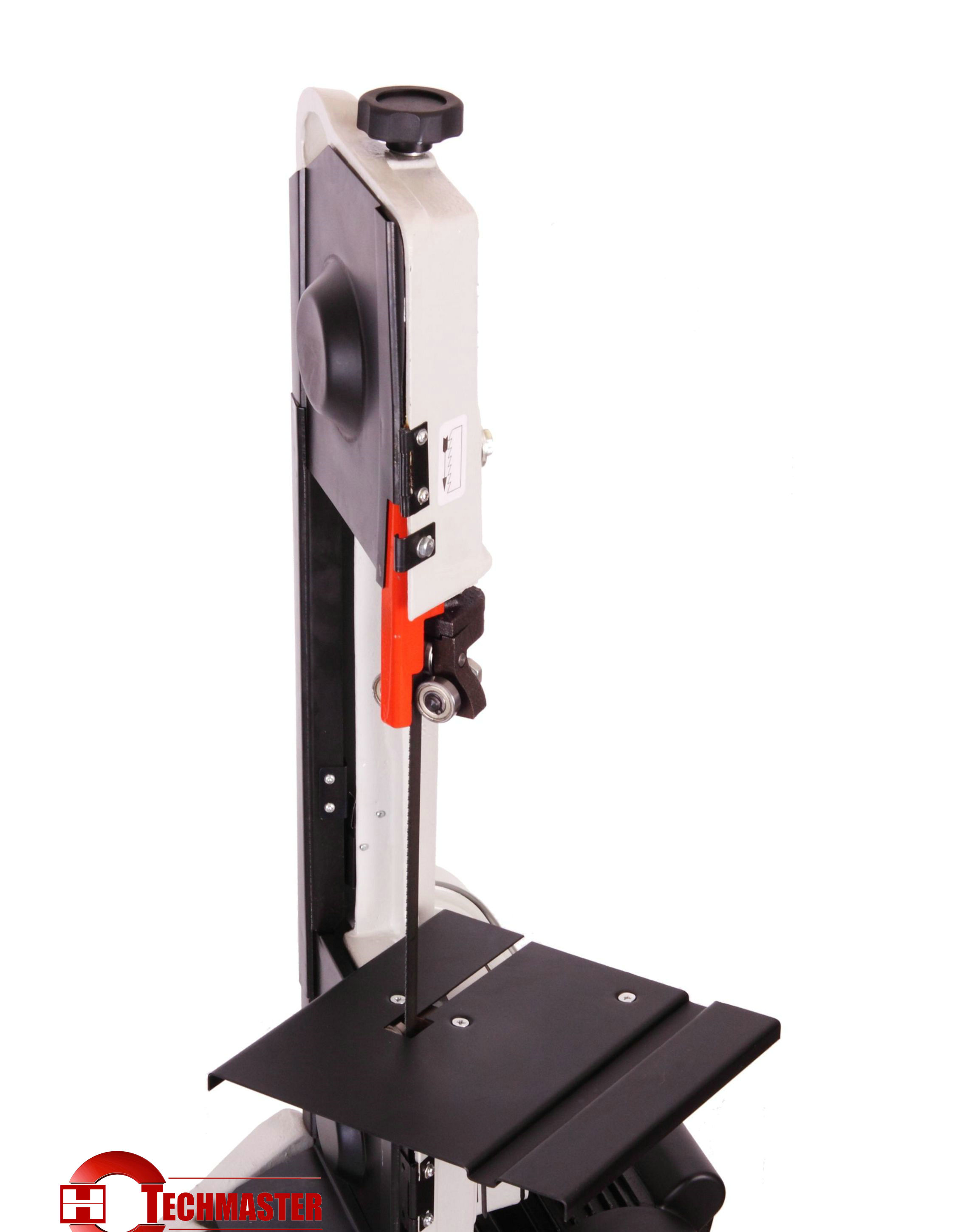

| Vertikální řezání | Ano |
| Rozměr pásu | 1640 x 13 x 0,6 mm |
| Řezání pod úhlem | 90°,45° |
| Hmotnost | 80 kg |
| Model | G5012WA Portable Bandsaw |
| Condition | New |
| Blade speed | 20/29/50m/min |
| Electrical Power | Single Phase |
| Bandsaw Blade Size | 1640 x 13 x 0.65 mm |
| Blade cutting size | 1640 x 13 x 0.65 mm |
| Capacity 90º (Round) | 115mm |
| Capacity 90º (Rectangular) | 100 x 150mm |
| Capacity 90º (Square) | 100 x 100mm |
| Capacity 45º R (Round) | 100mm |
| Capacity 45º R (Rectanagular) | 100 x 60mm |
| Capacity 45º R (Square) | 60 x 60mm |
| Weight | 92Kg |
