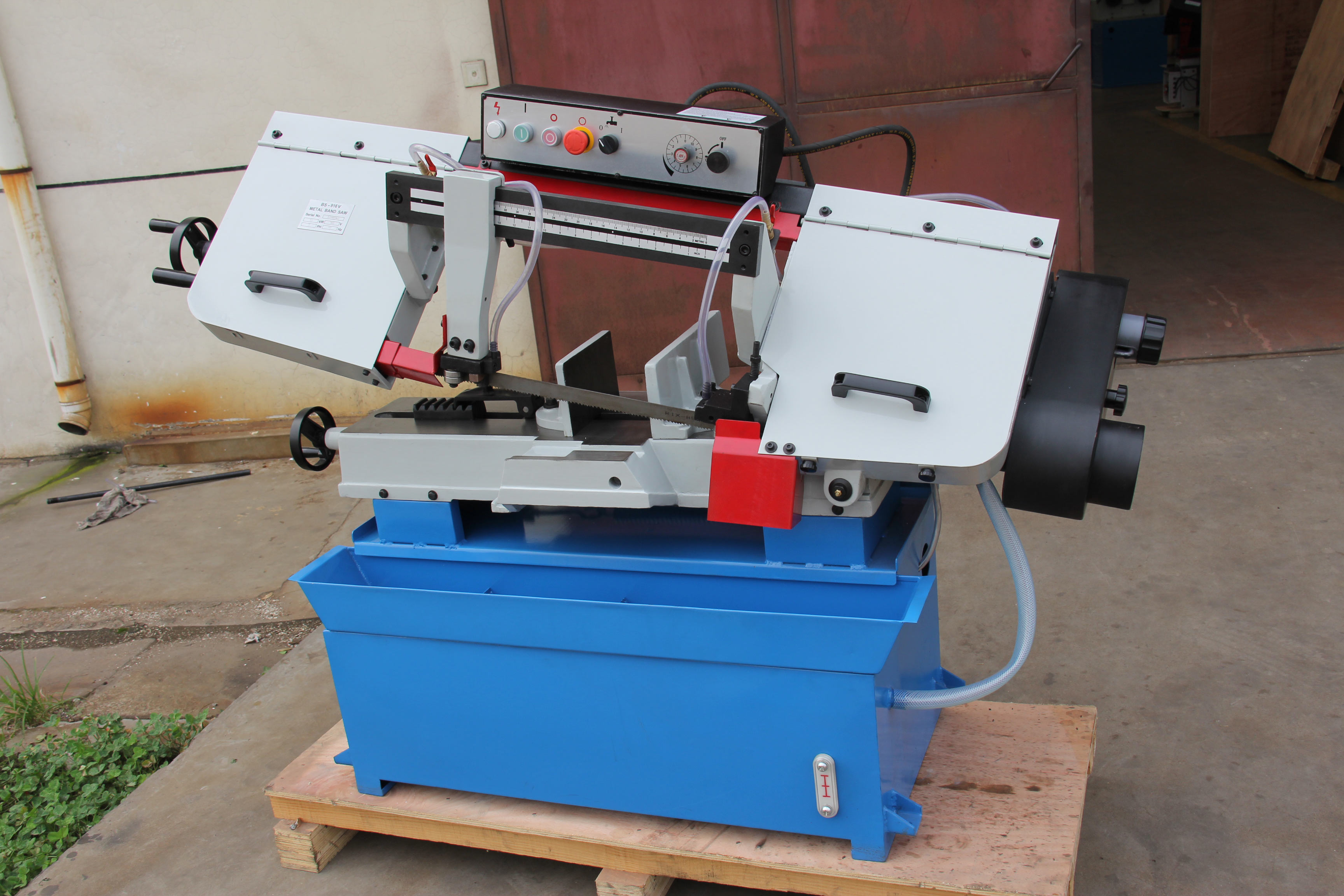

Band Saw Machine For Metal
BS-916V
Features
1. The maximum capacity is 9".
2. It is equipped wiht a block feeder(with fixed sawing length.)
3. The falling speed of the saw bow is controlled by hydraulic cylinder.
Technical Specifications
| Model | BS-916VR | BS-916V | |
| Capicity | Circular @90° | 229mm(9") | 229mm(9") |
| Rectangular @90 ° | 127x405mm(5"x16") | 127x405mm(5"x16") | |
| Circular @45° | 150mm(6") | 150mm(6") | |
| Rectangular @45 ° | 150x190mm(6"x7.5") | 150x190mm(6"x7.5") | |
| Blade speed | @ 60HZ | 22-122MPM 95-402FPM | 22-122MPM 95-402FPM |
| @ 50HZ | 18-102MPM 78-335 FPM | 18-102MPM 78-335 FPM | |
| Blade size(MM) | 27x0.9x3215 | 27x0.9x2655 | |
| Motor power | 1.5kW 2HP (3PH) | ||
| Dirve | V-belt | ||
| Packing size(cm) | 188x78x134 | 180x77x114 | |
| N.W./G.W.(kg) | 320/380 | 300/360 | |
