PRODUCT MAIN TECHNICAL SPECIFICATIONS:

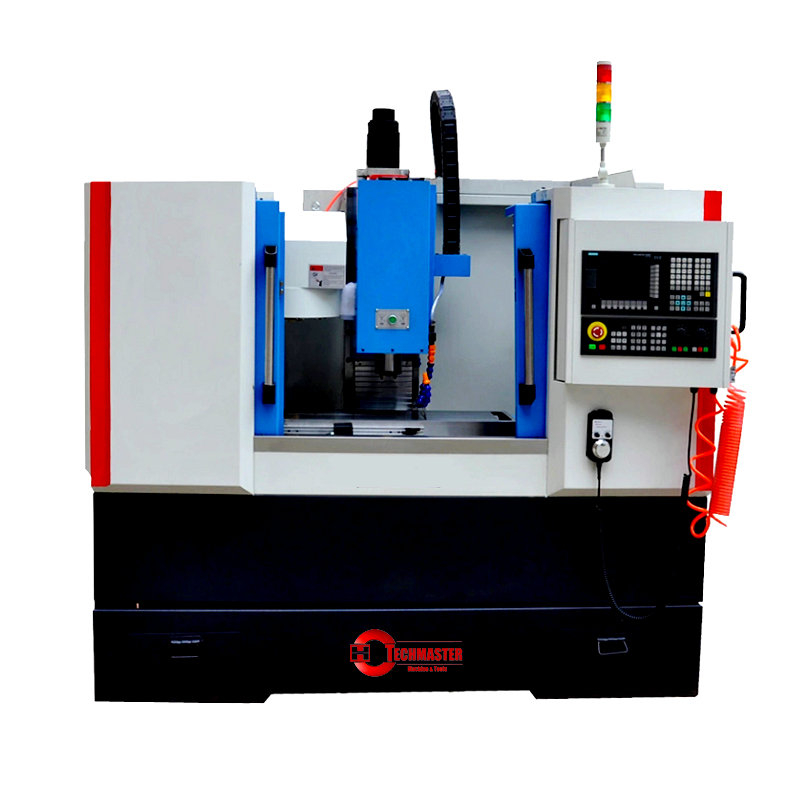

1.mini cnc milling economic machine center XH7125 is with box guideways, ensuring the machine’s machining accuracy and stability.
2.The small vmc machine can be with taiwan arm type tool magazine or drum type tool magazine with 10 tools capacity.
It can change tools quickly.
3.The machine is with RS232 interface, separated handwheel, spindle blowing chip removal system.
| SPECIFICATIONS | UNIT | XH7125 | XK7125 |
| Table size | mm | 900×250 | 900×250 |
| X-axis travel | mm | 450 | 450 |
| Y-axis travel | mm | 260 | 260 |
| Z-axis travel | mm | 380 | 380 |
| Distance from spindle axis to column surface | mm | 330 | 330 |
| Distance between spindle nose and worktable | mm | 50-430 | 50-430 |
| The vertical tolerance of distance between spindle nose and worktable | mm | <=0.02 | <=0.02 |
| X/Y/Z rapid traverse | M/min | 6/5/4 | 6/5/4 |
| Max.spindle speed | rpm | 6000 | 6000 |
| Spindle taper | BT30 | BT30 | |
| Main motor power | kw | 2.2 | 2.2 |
| X axis motor torque | N.m | 7.7 | 7.7 |
| Y axis motor torque | N.m | 6 | 6 |
| Z axis motor torque | N.m | 6 | 6 |
| Tool capacity | 12 armless type tools magazine | - | |
| Positioning accuracy | mm | 0.02 | 0.02 |
| Repeat positioning accuracy | mm | 0.01 | 0.01 |
| Machine dimension | mm | 2200×1650×2200 | 1200×1500×2100 |
| Machine weight | kg | 1800 | 1400 |
