BS-912GDR
| Quantity: | |
|---|---|
1.Gear drive
2. CE certificate
3. bow Swiveled both side
4.small kerf material savings
5.high economic efficiency
1. Maximum capability 9"
2. The belt gear of it has four cutting speeds
3. The quick clamps can be rotated from 0° to 45°
4. Can be used both vertically and horizontally
5. High-capacity due to controlled by motor
6. The falling speed of saw bow is controlled by hydraulic cylinder. The base of the roller can be move freely.
7. Has a sizing device (the machine will automatically stop after sawing materials)
8. With power break protection device, machine will power off automatically when the rear protective cover is opened
7. With cooling system, can prolong the service life of saw blade and improve the precision of work piece
9. Equipped with a block feeder (with fixed sawing length)
10.The bow can be swiveled between 45° and 90°,gear driven,both sides swiveled exclusively design +/-45°

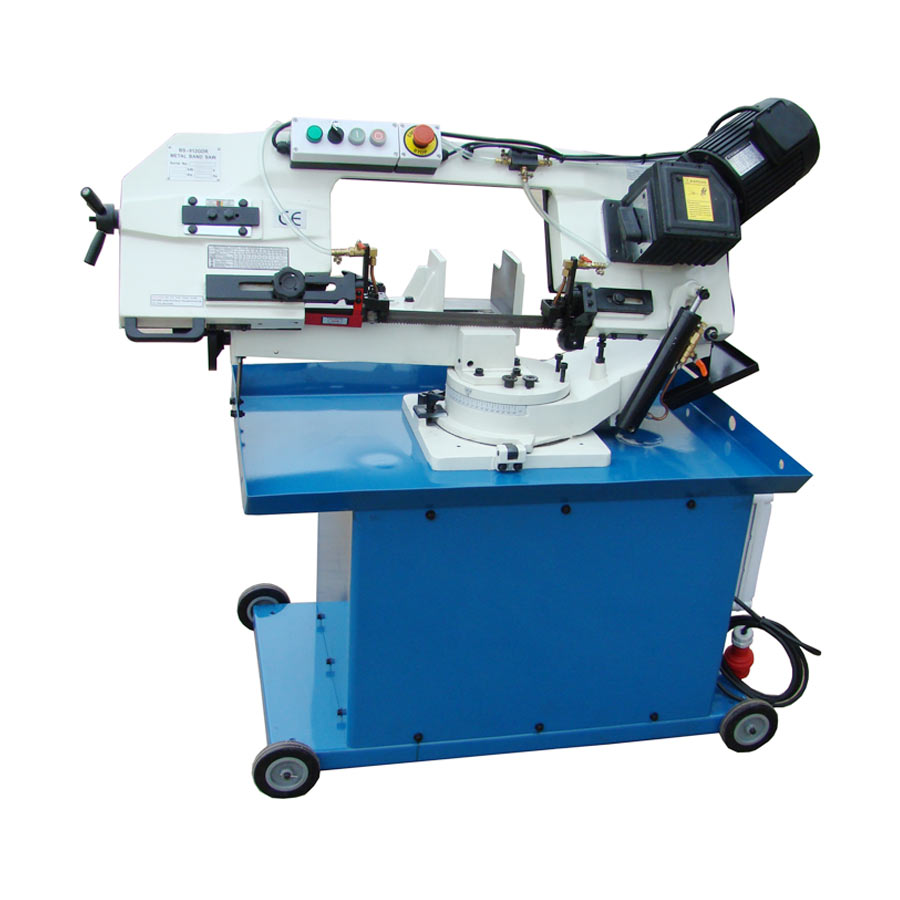

China manufacture , CE standard with Certificate,BS912GDR metal cutting bandsaw
Main technical parameter
| Model | BS-912GDR | |
| Capacity | Circular @ 90° | 229mm(9”) |
| Rectangular @90° | 178x305mm(7”x12”) | |
| Circular @45° | 150mm(6”) | |
| Rectangular @45° | 127x150mm (5”x6”) | |
| Blade speed | @60Hz | 38,78,115MPM |
| @50Hz | 31,65,95MPM | |
| Blade size | 27x0.9x2655mm | |
| Motor power | 1.1kW 1.5HP(3PH), 1.5KW 2HP(1PH) | |
| Drive | Gear | |
| Packing size | 147x74x132cm | |
| N.W./G.W. | 230/280kg | |
