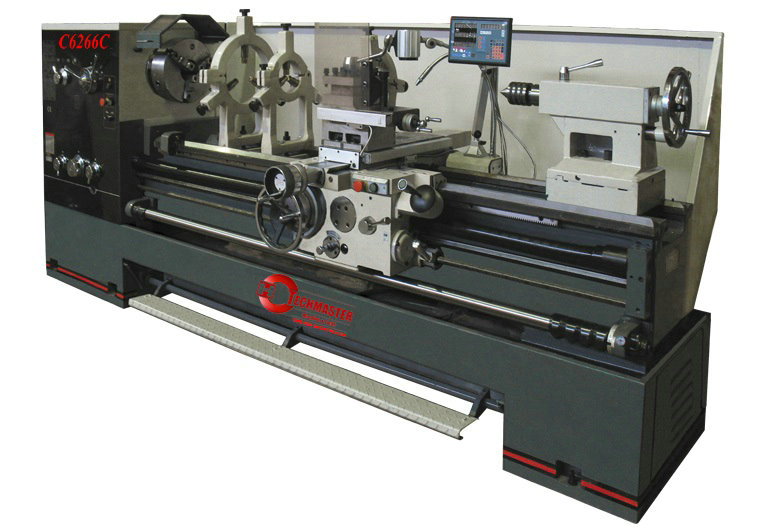

C6266C1500/2000/3000
| Quantity: | |
|---|---|
| CAPACITY | |
| Max.swing over bed | Ф660mm |
| Max.swing over carriage | Ф420mm |
| Max. swing over gap | Ф870mm |
| Max.turning diameter | Ф660mm |
| Effective length of gap | 230mm |
| Distance between centers | 1000/1500/2000/3000mm |
| SPINDLE | |
| Spindle nose | D8 |
| Spindle bore | Ф105mm |
| Taper bore of spindle | Ф113mm 1:20 |
| Steps of spindle speed | 12 |
| Range of spindle speed | 36~1600rpm |
| FEED | |
| Range of longitudinal feeds | 0.063~2.52 (0.023″~0.937″)mm |
| Range of cross feeds | 0.027~1.07(0.010″~0.404″)mm |
| RAPID TRAVEL | |
| Longitudinal | 4500mm/min |
| Cross | 1900mm/min |
| THREAD RANGE/ NUMBER | |
| Metric pitch threads | 1~14mm/ 22 |
| Whit-worth threads | 28~2TPI/ 26 |
| Module threads | 0.5~7mm/ 18 |
| D.P.Threads | 56~4DP/ 24 |
| TAILSTOCK SLEEVE | |
| Taper bore | M.T.NO.5 |
| Max.travel | 150(5~29/32″)mm |
| External diameter | Ф75(2~61/64″)mm |
| OTHERS | |
| Size of tool shank | 25×25mm |
| Max travel of cross slide | 360mm |
| Max.travel of top slide | 145mm |
| Main motor power | 7.5kw |
| STANDARD DEVICES OR ACCESSORIES | ||||
| ITEMS | REMARK | |||
| 1. Main motor | China brand | |||
| 2. Spindle bearing | China brand | |||
| 3. Main electrical component | German brand | |||
| 4. Coolant pump | China brand | |||
| 5. Stead rest | China brand | |||
| 6. Follow rest | China brand | |||
| 7. 3-jaw chuck | 325mm | |||
| 8. 4-jaw chuck | | | 400mm | |
| 9. Face plate | 630mm | |||
| 10. 4-way tool post | 25x25mm | |||
| 11. Tailstock | | |||
| 12. Working light | | |||
| 13.Foot bark | | |||
| 14. Splash guard( below 2000mm: overall length; 3000mm: moved) | | |||
| 15. Tool box including: | ||||
| 1) Flat screw driver | 6" | |||
| 2) Cross screw driver | 6" | |||
| 3) Open ended wrench | 17/19, 19/22 | |||
| 4) Hex socket wrench | 6,8,10,12 | |||
| 5) Taper dead center | Morse NO.5 | |||
| 6) Live center | Morse NO.5 | |||
| 7) Spindle sleeve | 113 1:20 / Morse NO.5 | |||
| 8) Chuck wrench | | |||
| 9) Key for cam lock | | |||
| 10) Tool post wrench | | |||
| 11) Round nut spanner | 45-52,170-210 | |||
| 12) Gap bridge pin drive | | | | |
| 13) Oil gun | | |||
| 14) Paint can | | |||
| 15) Cross feed handle | | |||
| 16) Operator's manual | | |||
| 17) Test record | | |||
| 18) Helical gear | m=3.75,Z=14 | |||
| 19) Leveling pads | | |||
| 20) Levelig bolts | | |||
| The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation. | ||||
