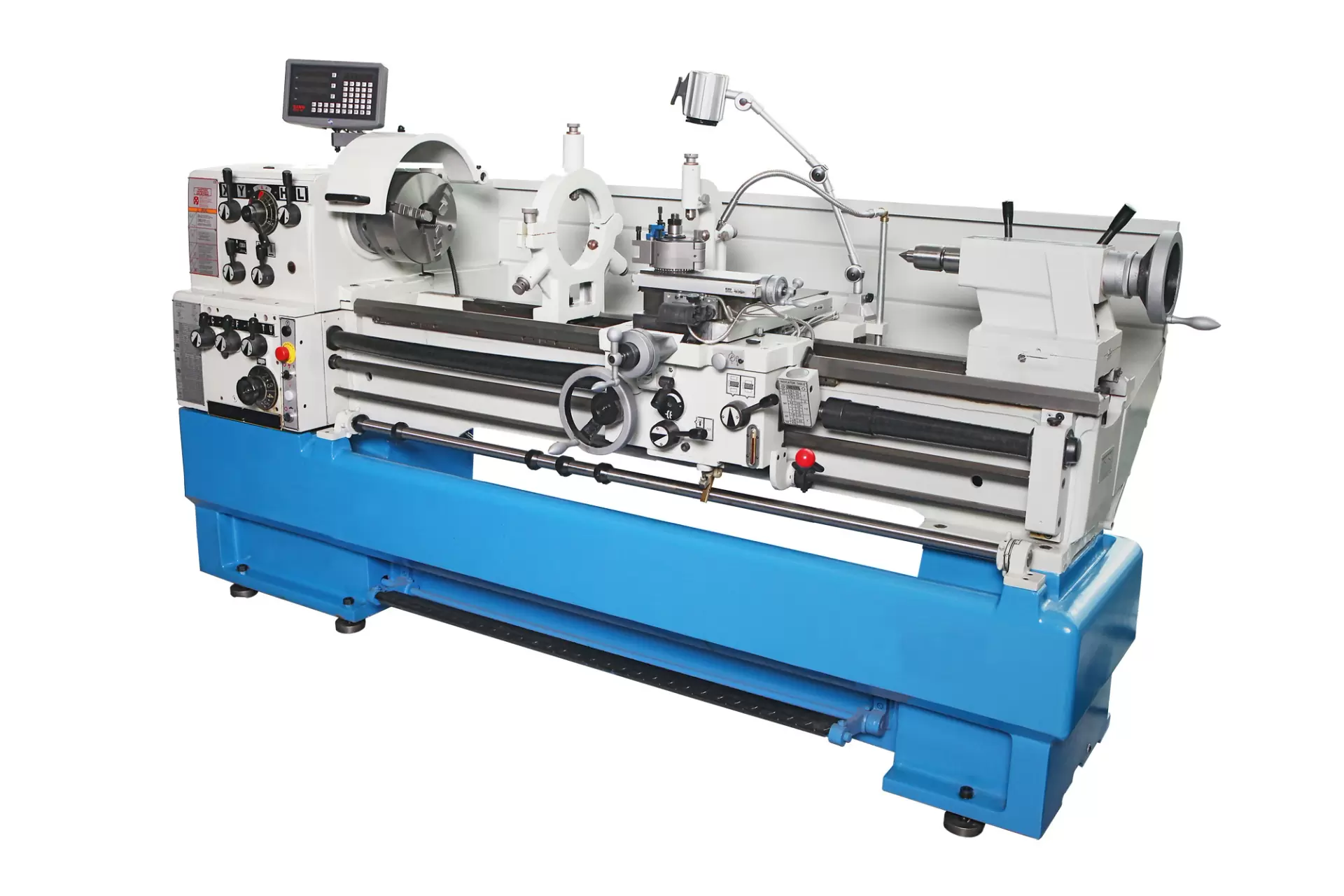

· Equip with safety covers, LED lamp, coolant system, foot brake
| Model No. | C6246×1000 | C6246×1500 | C6246×2000 |
| Distance between centres | 1000mm | 1500mm | 2000mm |
| Swing over bed | 460mm | 460mm | 460mm |
| Swing over cross slide | 270mm | 270mm | 270mm |
| Swing over gap | 690mm | 690mm | 690mm |
| Gap length | 240mm | 240mm | 240mm |
| Width of bed | 300mm | 300mm | 300mm |
| Spindle bore taper | MT6 | MT6 | MT6 |
| Spindle bore | 58mm(80mm is optional) | 58mm(80mm is optional) | 58mm(80mm is optional) |
| Spindle nose | D1-6 | D1-6 | D1-6 |
| Range of spindle speed | 25-2000rpm/12 | 25-2000rpm/12 | 25-2000rpm/12 |
| Range of longitudinal feeds | 0.031-1.70mm/r | 0.031-1.70mm/r | 0.031-1.70mm/r |
| Range of cross feeds | 0.014-0.784mm/r | 0.014-0.784mm/r | 0.014-0.784mm/r |
| Range of inch threads | 2-112TPI | 2-112TPI | 2-112TPI |
| Range of metric threads | 0.1-14mm | 0.1-14mm | 0.1-14mm |
| Range of diametric threads | 4-112DP | 4-112DP | 4-112DP |
| Range of module threads | 0.1-7mm | 0.1-7mm | 0.1-7mm |
| Top slide travel | 125mm | 125mm | 125mm |
| Cross slide travel | 285mm | 285mm | 285mm |
| Carriage travel | 750mm | 1250mm | 1750mm |
| Tailstock quill travel | 130mm | 130mm | 130mm |
| Diameter of quill | 60mm | 60mm | 60mm |
| Tailstock quill taper | MT4 | MT4 | MT4 |
| Max. tool size | 20x20mm | 20x20mm | 20x20mm |
| Net weight | 1720kg | 1850kg | 2000kg |
| Gross weight | 2050kg | 2390kg | 2500kg |
| Pump power | 0.125kw | 0.125kw | 0.125kw |
| Motor power | 5.5kw | 5.5kw | 5.5kw |
| Dimension of machine | 2200×1080×1340mm | 2700×1080×1340mm | 3200×1080×1340mm |
| Packing size | 2250×1140×1620mm | 2800×1140×1620mm | 3300×1140×1620mm |
| Standard accessories | Optional accessories | ||
| Four jaw chuck/315mm | 80mm spindle bore | ||
| Follow rest | X/Y rapid feed (300w motor) | ||
| Steady rest | 3-axis digital readout | ||
| Face plate | Quick change tool post | ||
| Safety spindle cover | Professional top rest cove | ||
| Leadscrew cover | Taper attachment | ||
| Threading dial | Electromagnetic brake | ||
| Adjustable feed stoppers | Driving plate | ||
| LED work lamp | Live centers | ||
| Coolant system | Turning tools | ||
| Foot brake | |||
| Dead centers | |||
| Toolbox & tools |
