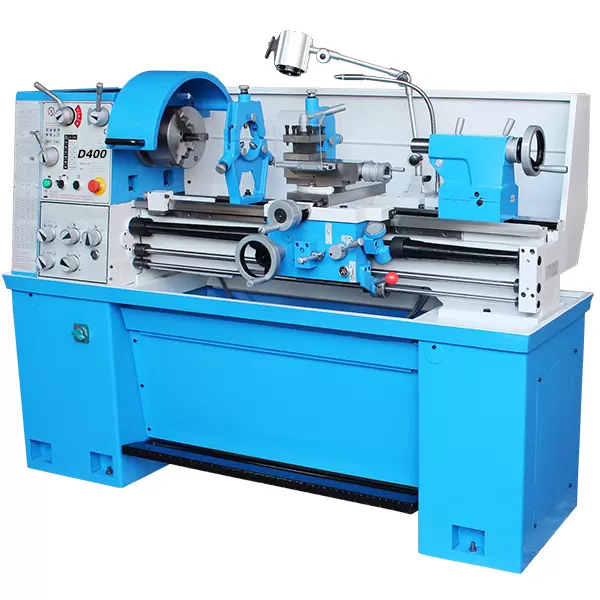

| Model No. | D 400×1000 |
| Distance between centres | 1000mm |
| Swing over bed | 400mm |
| Swing over cross slide | 240mm |
| Swing over gap | 560mm |
| Width of bed | 210mm |
| Spindle bore taper | MT6 |
| Spindle bore | 55mm |
| Spindle nose | D1-5 |
| Range of spindle speed | 45-2000rpm/12 |
| Range of longitudinal feeds | 0.06 - 2.78mm/r |
| Range of cross feeds | 0.01 - 0.72mm/r |
| Range of inch threads | 2-28TPI |
| Range of metric threads | 0.8-14mm |
| Top slide travel | 100mm |
| Cross slide travel | 190mm |
| Carriage travel | 850mm |
| Tailstock quill travel | 100mm |
| Diameter of quill | 45mm |
| Tailstock quill taper | MT4 |
| Max. tool size | 16x16mm |
| Net weight | 810kg |
| Gross weight | 920kg |
| Pump power | 0.04kw |
| Motor power | 2.0/2.4kw |
| Dimension of machine | 1920×840×1420mm |
| Packing size | 1940×760×1580mm |
| Standard accessories | Optional accessories |
| Four jaw chuck/200mm | 3-axis digital readout |
| Follow rest | Quick change tool post |
| Steady rest | Casting iron stand |
| Face plate | Taper attachment |
| Safety spindle cover | Professional top rest cover with LED work lamp |
| Top rest cover | Turning tools |
| Leadscrew cover | |
| Threading dial | |
| Micro bed stop | |
| Coolant system | |
| Foot brake | |
| Electromagnetic brake | |
| Dead centers | |
| Toolbox & tools |
