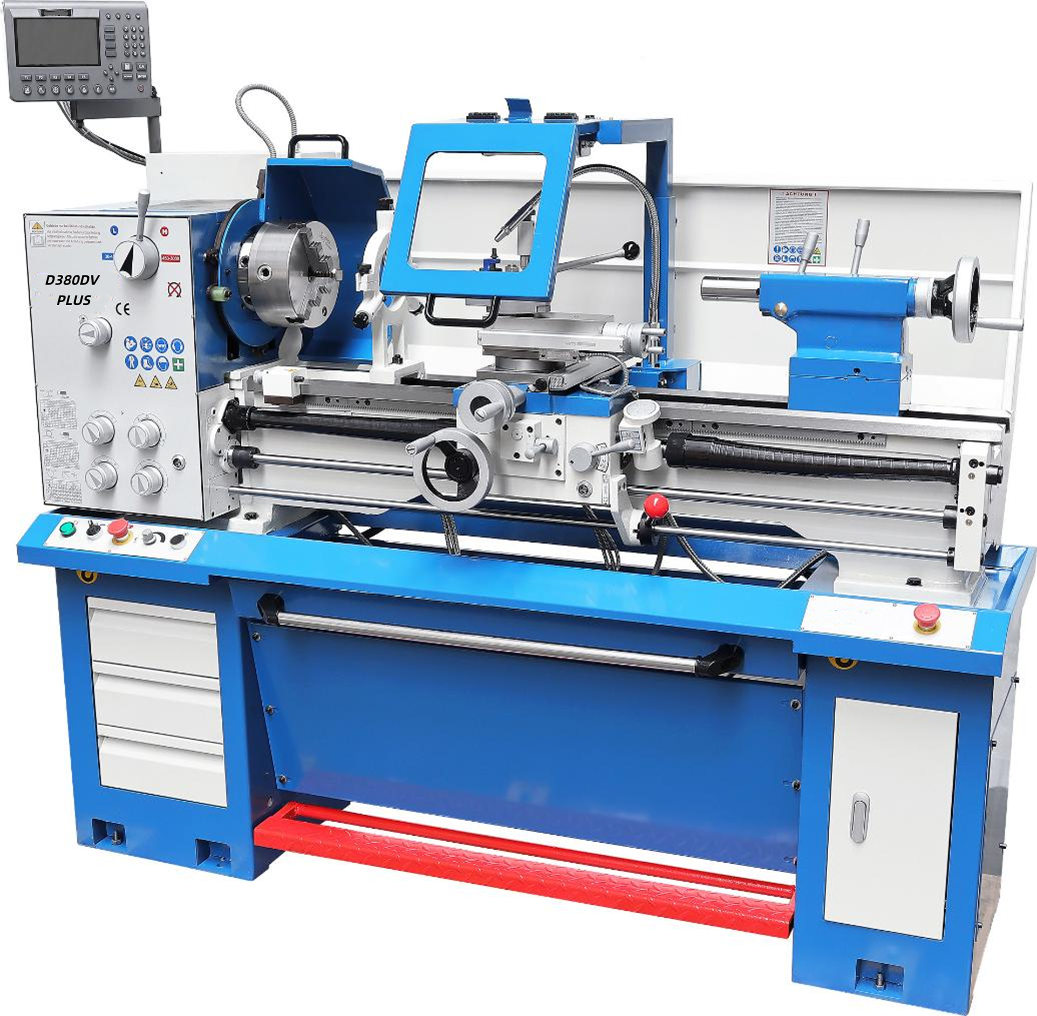

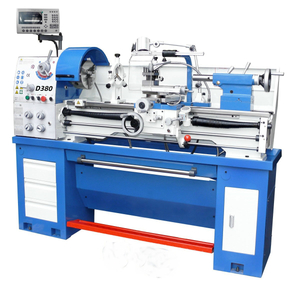

VARIO SPEED LATHE D380DV PLUS X1000MM (51MM SPINDLE )

Feature:
· Precision variable speed bench lathe for workshop and training purposes
· Variable speed by Delta inverter and 2.2kw powerful frequency motor
· 51mm spindle bore with D1-5 spindle nose
· Provide to 200mm/D1-5 3 jaw chuck
· Double vee bedway hardened and precision ground
· Separate leadscrew for thread cutting
· Dedicated feed shaft for longitudinal and cross feed
· Quick locking tailstock
· Overload clutch to feed shaft，micro stop is available
· European CE electrical standard with Siemens contactors

· Equip with all safety covers, LED lamp, coolant system, foot brake

	VARIO SPEED ENGINE LATHE
Model   No.	D380DV×1000 Vario  (D360DV  X1000 VARIO SPEED IS OPTIONAL)
Distance between centres	1000mm
Swing over bed	380mm
Swing over cross slide	220mm
Width of bed	187mm
Spindle bore taper	MT6
Spindle bore	51mm
Spindle nose	D1-5
Range of spindle speed	30-450/450-3000rpm
Range of longitudinal feeds	0,052-1.392mm/r
Range of cross feeds	0,052-1.392mm/r
Range of inch threads	4-56TPI
Range of metric threads	0.4-7.0mm
Top slide travel	100mm
Cross slide travel	170mm
Carriage travel	850mm
Tailstock quill travel	110mm
Diameter of quill	42mm
Tailstock quill taper	MT4
Max. tool size	16x16mm
Net weight	570kg
Gross weight	680kg
Pump power	0.04kw
Motor power	2.2kw
Dimension of machine	1820×725×1320mm
Packing size	1750×760×700mm
Standard accessories	Optional accessories
Four jaw chuck/200mm	3-axis digital readout
Follow rest	Electromagnetic brake
Steady rest	Professional top rest cover with LED work lamp
Face plate	Quick change tool post
Safety spindle cover	Taper attachment
Leadscrew cover	Turning tools
Threading dial
Micro bed stop
Coolant system
Foot brake
Deluxe stand with drawers and   control panel
Dead centers
Toolbox & tools
