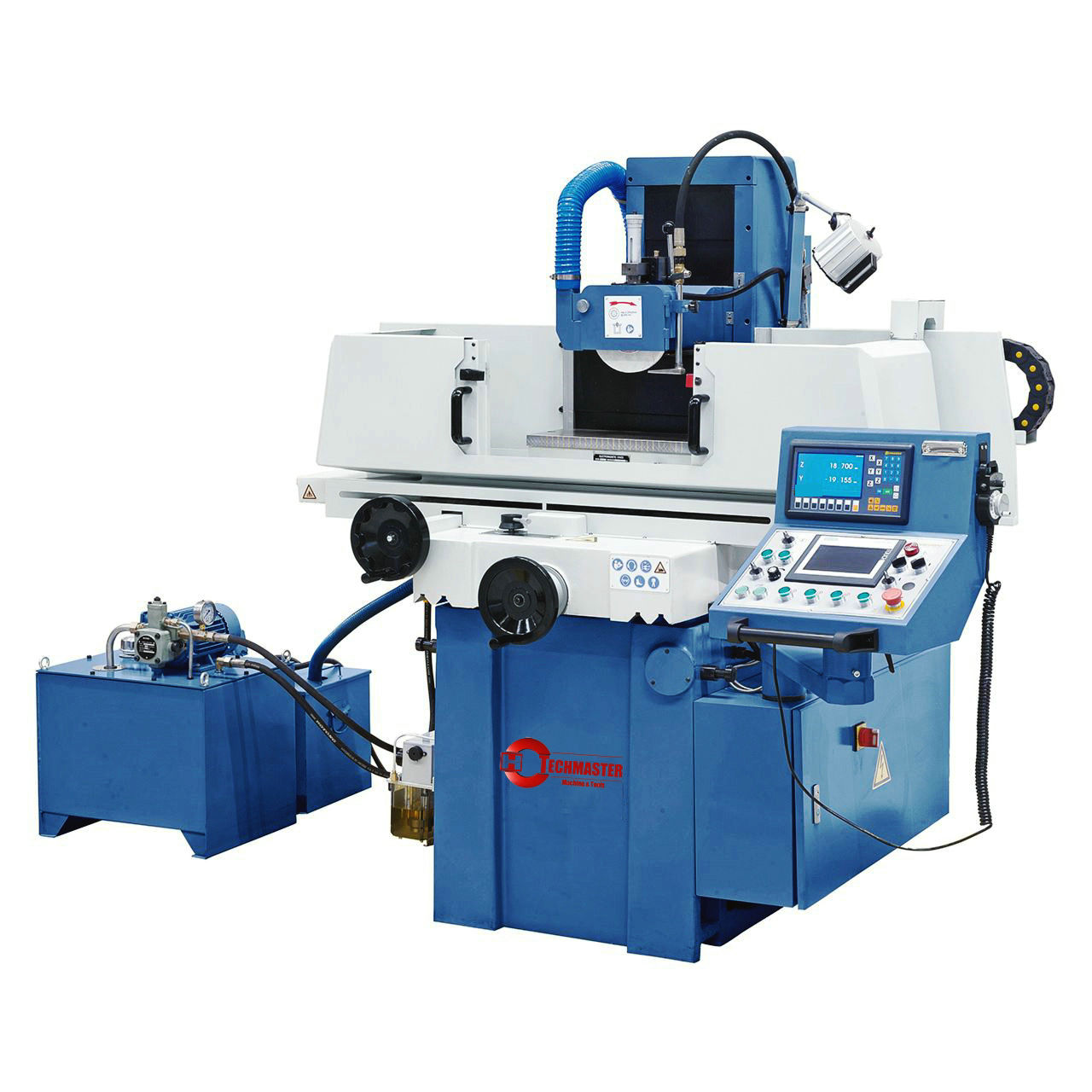

The hydraulic surface grinding machine BSG 2040 PLC features an extensive range of standard equipment eg. computer automated vertical feed, parallel dresser with micrometre setting, magnetic clamping plate with demagnetization device and 2-axis digital readout.
Including Siemens PLC-control for programming simple sanding cycles via touchscreen
State of the art hydraulic system guarantees soft table traverse even at high work load
Seperate hydraulic unit with heat exchanger to omit vibrations and thermal load
Solidly constructed and well supported structure assures high stability
Plastic-coated counter guide in x- and y-axis assure a low slip-stick-effect
Infeed via rapid feed to height of workpiece, adjustable to finishing and sparking, automatic lift at program end
Spindle features axial and radial, clearance-free, pre-tensioned bearings
Digitally controlled, automatic vertical feed with servo motor
Adjustable longitudinal and cross table movement via end stops
V-flat longitudinal table guide, double-V cross table guide
Technical specifications
Table dimensions 200 x 500 mm
T-slot quantity / width 1 / 14 mm
Electric magnet clamping plate 200 x 460 mm
Ma
2-axis digital readout
Siemens SMART-panel IE V3 with touch screen
Electronic handwheel
Grinding wheel
Flange
LED machine light
Magnetic clamping plate
Balancing stand
Balancing arbor
Parallel dresser
Protective covers
Demagnetization device
Coolant device
Dressing diamond
Machine feet
Central lubrication
Tools
x. travel, longitudinal 560 mm
Max. travel, cross 240 mm
Max. distance spindle / table 450 mm
Max. workpiece weight* 180 kg
Grinding wheel 200 x 20 x 31,75 mm
Table speed, hydraulic 7 - 25 m/min
Cross adjustment
Automatic adjustment, cross 0,5 - 8 mm / Stroke
Rapid feed, cross 990 mm/min
Adjustment per handwheel rotation 4 mm/rev.
Scale division on handwheel 0,02 mm
Vertical adjustment
Automatic adjustment, vertical 0,005 / 0,01 / 0,02 / 0,03 / 0,04 / 0,05 mm
Rapid feed, vertical 480 mm/min
Adjustment per handhwheel rotation 2 mm/rev.
Scale division on handwheel 0,005 mm
Motor power of sanding spindle 2,2 kW
Spindle speed 2850 rpm
Motor power of hydraulic pump 0,75 kW
Motor power of vertical feed 0,5 kW
Length 2160 mm
Depth 1650 mm
Height 1840 mm
Weight approx. 1640 kg
* with magnet clamping plate
