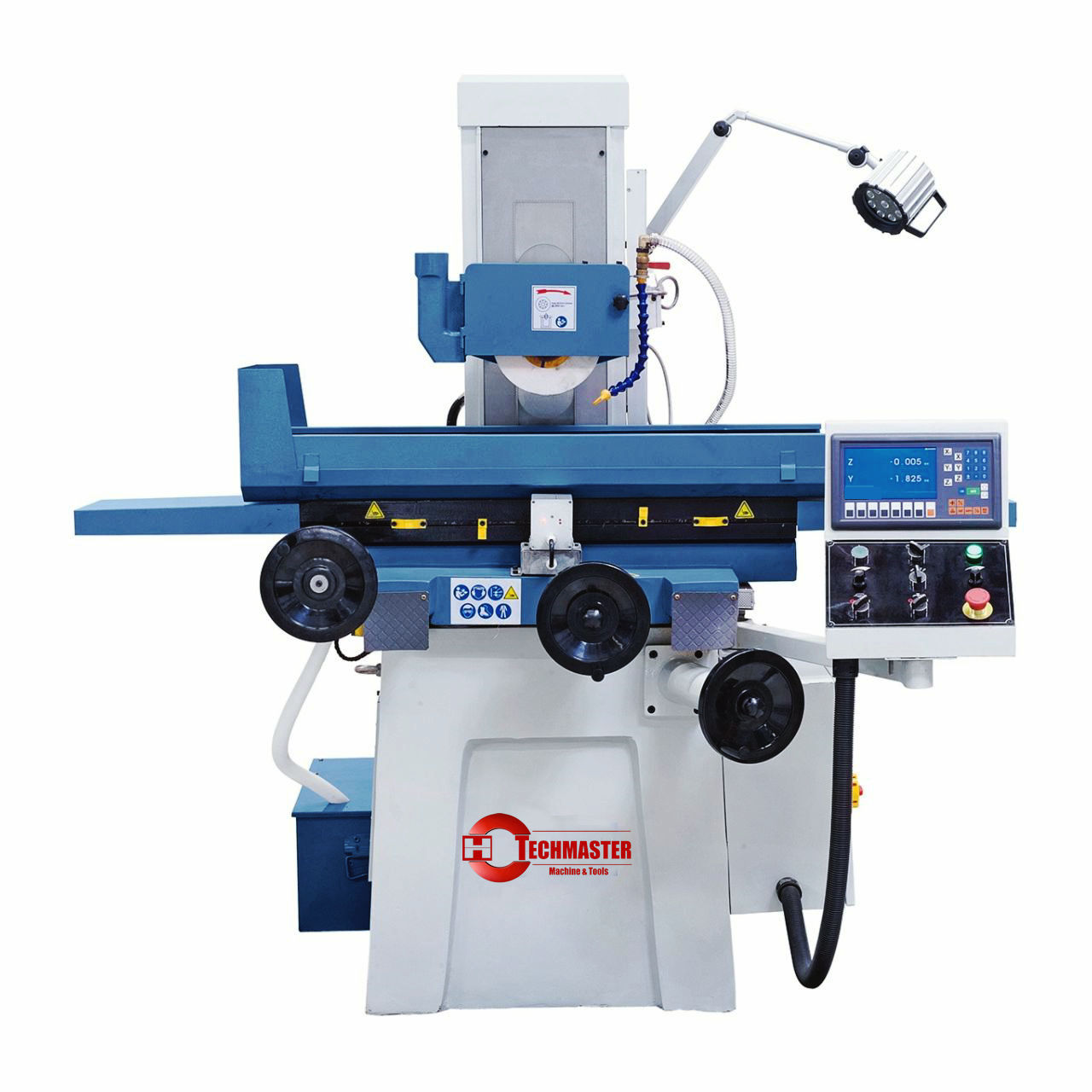

FSM 2040

Table dimensions 500 x 210 mm

T-slot quantity / width 1 / 14 mm

Permanent magnet clamping plate 200 x 400 mm

Max. travel, longitudinal 530 mm

Max. travel, cross 220 mm

Max. distance spindle / table 420 mm

Grinding wheel 200 x 20 x 31,75 mm

Table speed, electric 3 – 20 m/min

Cross adjustment

Table speed, electric 0,1 – 2 m/min

Adjustment per handwheel rotation 2,5 mm

Scale division on handwheel 0,02 mm

Vertical adjustment

Adjustment per handwheel rotation 1,25 mm

Scale division on handwheel 0,01 mm

Motor power of sanding spindle 1,5 kW

Spindle speed 2800 rpm

Length 1250 mm

Depth 1400 mm

Height 1730 mm

Weight approx. 750 kg

Standard accessories

• 2-axis digital readout

• Grinding wheel

• Flange

• LED working light

• Permanent magnet clamping plate

• Balancing stand

• Balancing arbor

• Protective cover

• Demagnetization device

• Coolant device

• Dressing diamond

• Machine feet

• Central lubrication

• Tools
