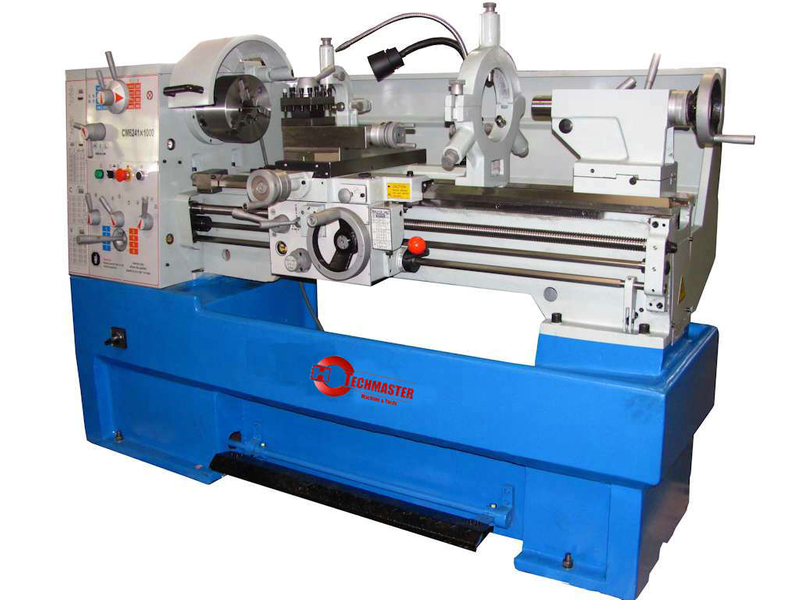

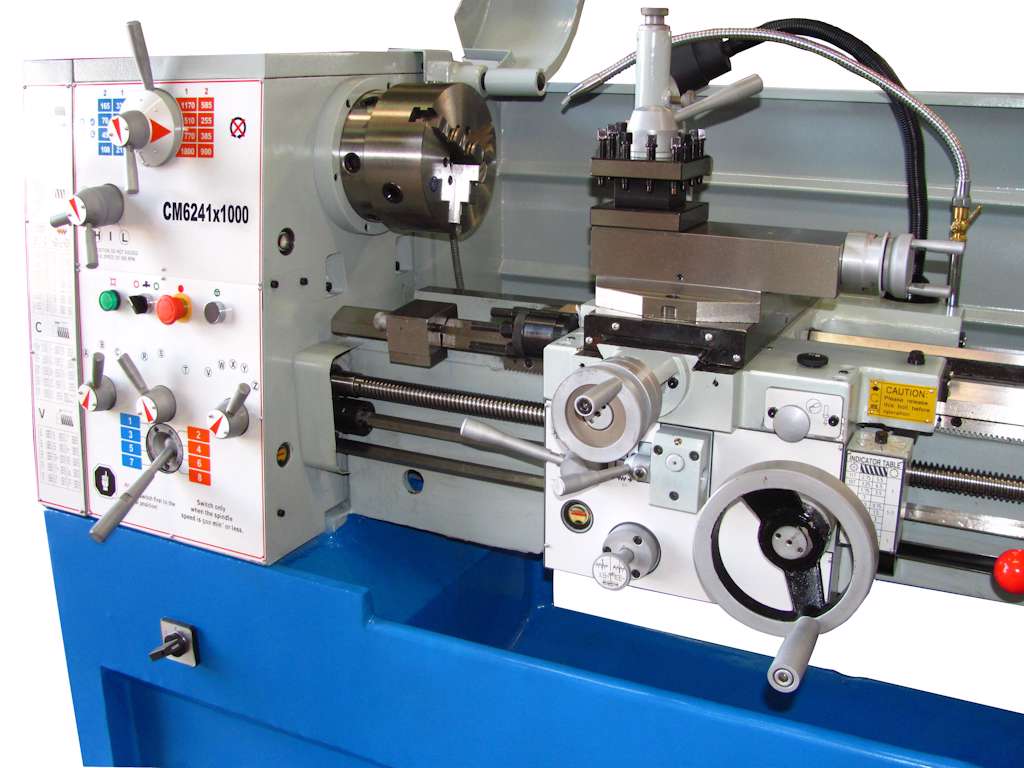

ENGINE LATHE CM6241X1000

Distance between centers: 1000mm
Max swing Ø over bed: 410mm
Max swing Ø over saddle: 255mm
Max swing Ø in gap: 580mm
Effective length in gap: 190mm
Max Ø of spindle bore: 52mm
Spindle speed ranges: 16
Spindle speed range: 45~1800rpm
Travel of crosslide: 225mm
Travel of topslide: 140mm
Taper of tailstock: Morse No.4
Approx max workpiece weight: 550kg
Power of main motor: 2.2/3.3kW
Dimensions: 1940 x 850 x 1300 (LxWxH)
Weight: 1300kg


Machine Accessories
3-jaw chuck: Ø 200mm
Reverse jaws for 3-jaw chuck
4-jaw chuck: Ø 250mm
Faceplate: Ø 350mm
Fixed Steady
Traveling Steady
Changegears: 21T.60T
Worklight
Coolant System
Levelling pads
Adjustable Feed Stopper
