Feature:

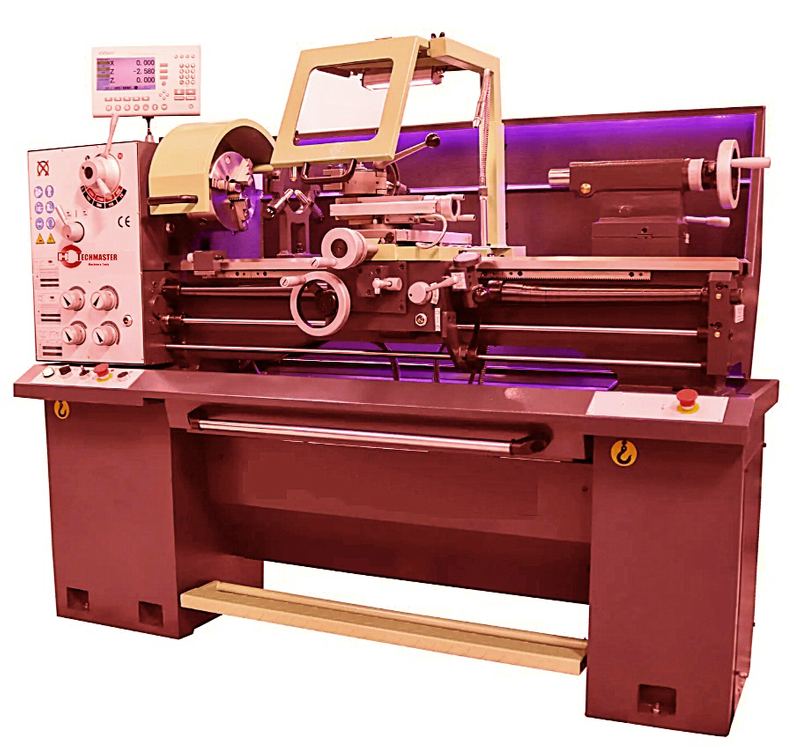

• High precision gear drive lathe
• Extremely quiet vibration free operation
• 52mm spindle bore with D1-5/200mm 3 jaw chuck
• Overload clutch to feed shaft, micro stop is available
• Removable bridge for a large diameter workpiece
• Separate leadscrew for thread cutting function
• Ideal for tehnical colleges, repair shops and training purposes
Standard accessories:
4 jaw chuck, faceplate, steady/follow rest, LED work lamp,
coolant, foot brake, deluxe stand and moveable chip tray,
treading dial, micro stop
Optional accessoires:
leadscrew cover, quick change tool post, digital readout,
turning tools
| Model No. | D380Dx1000 |
| Distance between centers | 1000mm |
| Swing over bed | 380mm |
| Bed width | 187mm |
| Spindle nose | DIN 55029 D1-5 |
| Spindle bore | 52mm |
| Range of spindle speed | 70-2000r/min |
| Range of longitudinal feeds | 0.052-1.392mm/r |
| Range of cross feed | 0.014-0.380mm/r |
| Range of inch threads | 4-56tpi |
| Range of metric threads | 0.4-7mm |
| Top slide travel | 95mm |
| Cross slide travel | 170mm |
| Tailstock quill travel | 100mm |
| Tailstock quill taper | MT4 |
| Motor power | 1.5KW |
| Net weight | 650KG |
