Feature:

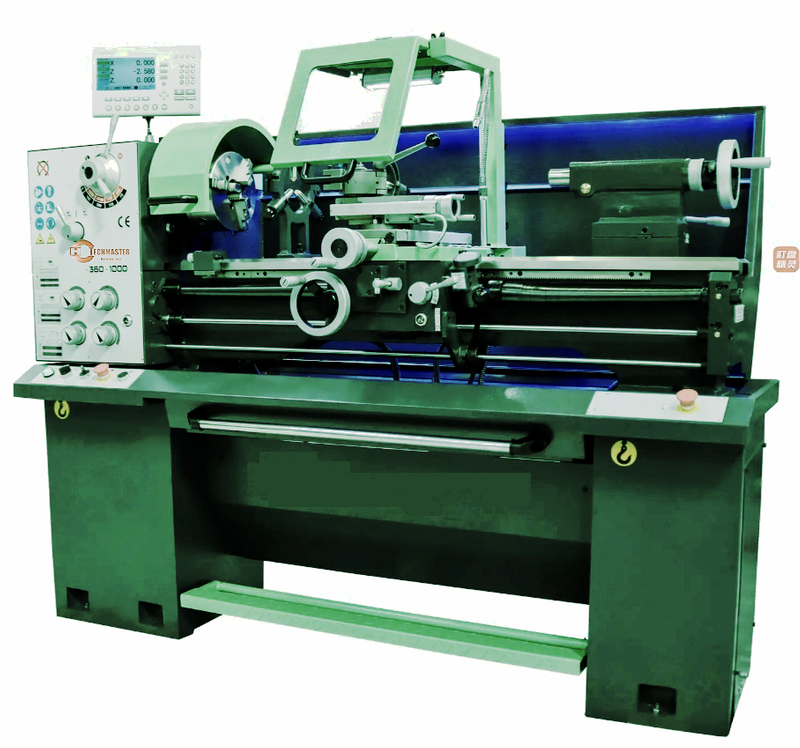

• High precision gear drive lathe
• Extremely quiet vibration free operation
• 52mm spindle bore with D1-5/200mm 3 jaw chuck
• Overload clutch to feed shaft, micro stop is available
• Removable bridge for a large diameter workpiece
• Separate leadscrew for thread cutting function
• Ideal for tehnical colleges, repair shops and training purposes
Standard accessories:
4 jaw chuck, faceplate, steady/follow rest, LED work lamp,
coolant, foot brake, deluxe stand and moveable chip tray,
treading dial, micro stop
Optional accessoires:
leadscrew cover, quick change tool post, digital readout,
turning tools
| ITENS | D360×1000 |
| Distance between centres | 1000mm |
| Swing over bed | 360mm |
| Swing over cross slide | 220mm |
| Width of bed | 187mm |
| Spindle bore taper | MT6 |
| Spindle bore | 51mm |
| Spindle nose | D1-5 |
| Range of spindle speed | 70-2000rpm/8 |
| Range of longitudinal feeds | 0,052-1.392mm/r |
| Range of cross feeds | 0,052-1.392mm/r |
| Range of inch threads | 4-56TPI |
| Range of metric threads | 0.4-7.0mm |
| Top slide travel | 100mm |
| Cross slide travel | 170mm |
| Carriage travel | 850mm |
| Tailstock quill travel | 110mm |
| Diameter of quill | 42mm |
| Tailstock quill taper | MT4 |
| Max. tool size | 16x16mm |
| Net weight | 570kg |
| Gross weight | 680kg |
| Pump power | 0.04kw |
| Motor power | 1.5kw |
| Dimension of machine | 1820×725×1320mm |
| Packing size | 1750×760×700mm |
| Standard accessories | Optional accessories |
| Four jaw chuck/200mm | 3-axis digital readout |
| Follow rest | Professional top rest cover with LED work lamp |
| Steady rest | Electromagnetic brake |
| Face plate | Quick change tool post |
| Safety spindle cover | Turning tools |
| Top rest cover | |
| Leadscrew cover | |
| Threading dial | |
| Micro bed stop | |
| LED work lamp | |
| Coolant system | |
| Foot brake | |
| Dead centers | |
| Toolbox & tools |
