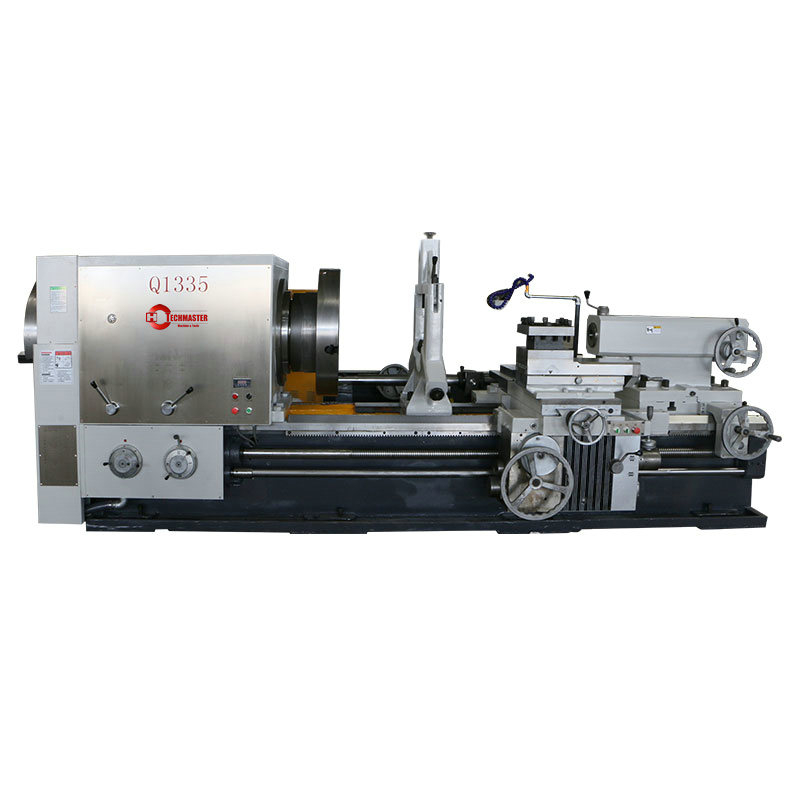

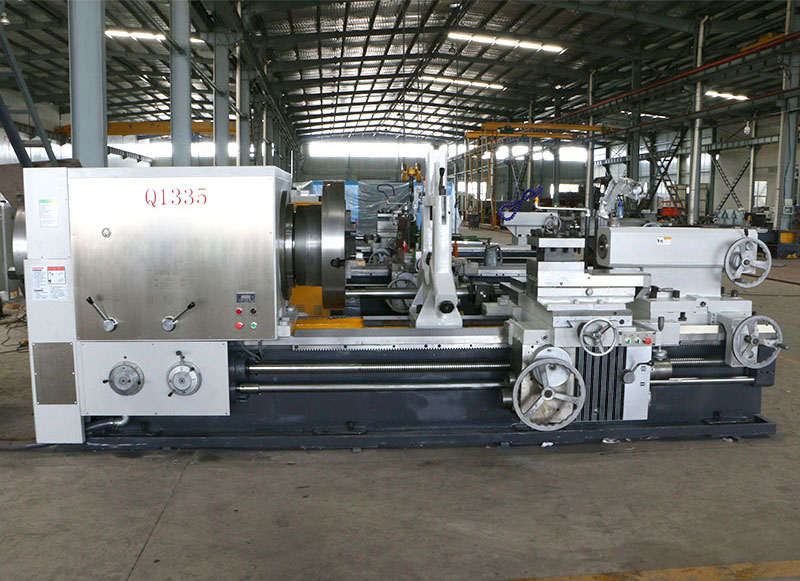

Big spindle bore and double chuck allow clamp and process big diameter pipes.
Integral machine bed adopts high strength iron to realize high rigidity and precision.
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance.
Equipped with a taper guide bar device this enables the machine to process taper threads.
| Specification | Unit | Q1335 |
| Max dia.swing over bed | mm | 630 |
| Max dia.swing over cross slide | mm | 350 |
| Max.length of work-piece | mm | 1500 |
| Width of bed | mm | 550 |
| Spindle bore | mm | 200 |
| Power of spindle motor | Kw | 11 |
| Spindle speed | r/min | 24-300 FWD.12 steps |
| Z axis feed grade/range | mm/r | 26/0.07-1.33 |
| X axis feed grade/range | mm/r | 22/0.02-0.45 |
| Carriage rapid traverse speed | mm/min | 4000 |
| Cross slide rapid traverse speed | mm/min | 2300 |
| Metric thread grade/range | mm | 2024/1/14 |
| Inch thread grade/range | T.P.I | 1940/2/28 |
| Module thread grade/range | mm | 0.5-7.5 |
| DP thread grade/range | D.P. | 28-2 |
| Traverse of cross slide | mm | 320 |
| Max. Traverse of turret | mm | 200 |
| Tailstock quill travel | mm | 250 |
| Tailstock quill Dia./taper | mm | Φ100/（MT5#） |
| Chuck | 4-jaw manual | |
| Overall dimensions(L*W*H) | mm | 3657×1360×1555 |
| Net weight | T | 4.5 |
