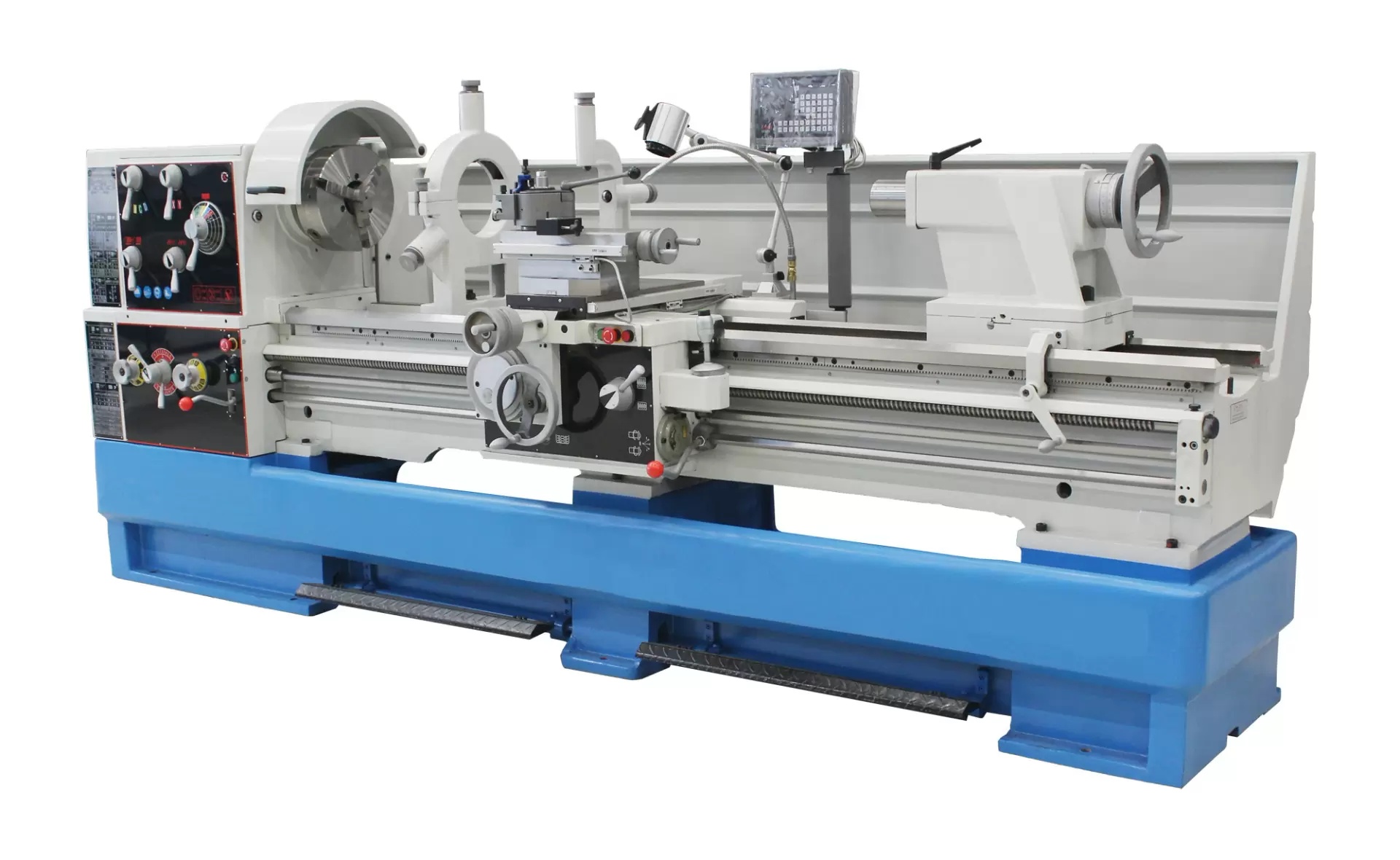

UNIVERSAL CQ6280X1500MM/2000MM/3000MM

Feature:
· A modern version of classic lathe with robust construction for industria production
· 7.5kw powerful motor for industrial working
· 105mm spindle bore with D1-8 spindle nose
· Provide to 315mm/D1-8 3 jaw chuck
· Double vee bedway hardened and precision ground
· Separate leadscrew for thread cutting
· Dedicated feed shaft for longitudinal and cross feed
· Central lubrication in bed slide
· X/Y rapid feed
· One piece of casting iron stand for better rigidity
· European CE electrical standard with Siemens contactors

· Equip with safety covers, LED lamp, coolant system, foot brake

Model No.	CQ6280×1500	CQ6280×2000	CQ6280×3000
Distance between centres	1500mm	2000mm	3000mm
Swing over bed	800mm	800mm	800mm
Swing over cross slide	570mm	570mm	570mm
Swing over gap	1035mm	1035mm	1035mm
Gap length	330mm	330mm	330mm
Width of bed	400mm	400mm	400mm
Spindle bore taper	113mm   (1:20)	113mm   (1:20)	113mm   (1:20)
Spindle bore	105mm	105mm	105mm
Spindle nose	D1-8	D1-8	D1-8
Range of spindle speed	25-1600rpm/16	25-1600rpm/16	25-1600rpm/16
Range of longitudinal feeds	0.044-1.48mm/r	0.044-1.48mm/r	0.044-1.48mm/r
Range of cross feeds	0.022-0.74mm/r	0.022-0.74mm/r	0.022-0.74mm/r
Range of inch threads	7/16-80TPI	7/16-80TPI	7/16-80TPI
Range of metric threads	0.45-120mm	0.45-120mm	0.45-120mm
Range of diametric threads	7/8-160DP	7/8-160DP	7/8-160DP
Range of module threads	0.25-60mm	0.25-60mm	0.25-60mm
Top slide travel	230mm	230mm	230mm
Cross slide travel	368mm	368mm	368mm
Carriage travel	1250mm	1250mm	1250mm
Tailstock quill travel	235mm	235mm	235mm
Diameter of quill	90mm	90mm	90mm
Tailstock quill taper	MT5	MT5	MT5
Max. tool size	32x32mm	32x32mm	32x32mm
Net weight	3220kg	3505kg	3870kg
Gross weight	3705kg	4005kg	4480kg
Pump power	0.125kw	0.125kw	0.125kw
Motor power	7.5kw	7.5kw	7.5kw
Dimension of machine	3200×1230×1750mm	3700×1230×1750mm	4700×1230×1750mm
Packing size	3240×1140×1980mm	3740×1140×1980mm	4740×1140×1980mm
Standard accessories	Optional accessories
Four jaw chuck/400mm	3-axis digital readout
Follow rest	Quick change tool post
Steady rest	Professional top rest cover
Face plate	Taper attachment
Safety spindle cover	Electromagnetic brake
Leadscrew cover	Driving plate
Threading dial	Live centers
Adjustable feed stoppers	Turning tools
LED work lamp	11kw motor
Coolant system
Foot brake
X/Y rapid feed (370w motor)
Dead centers
Toolbox & tools
