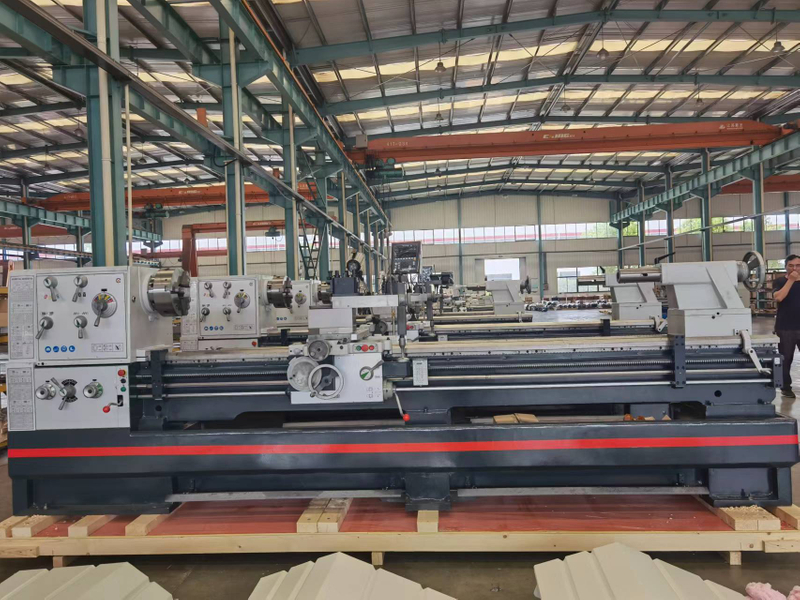

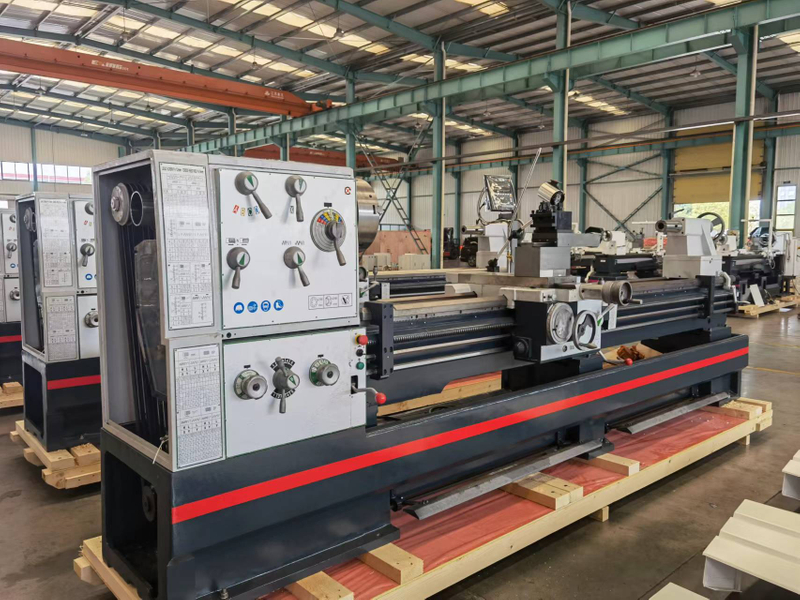

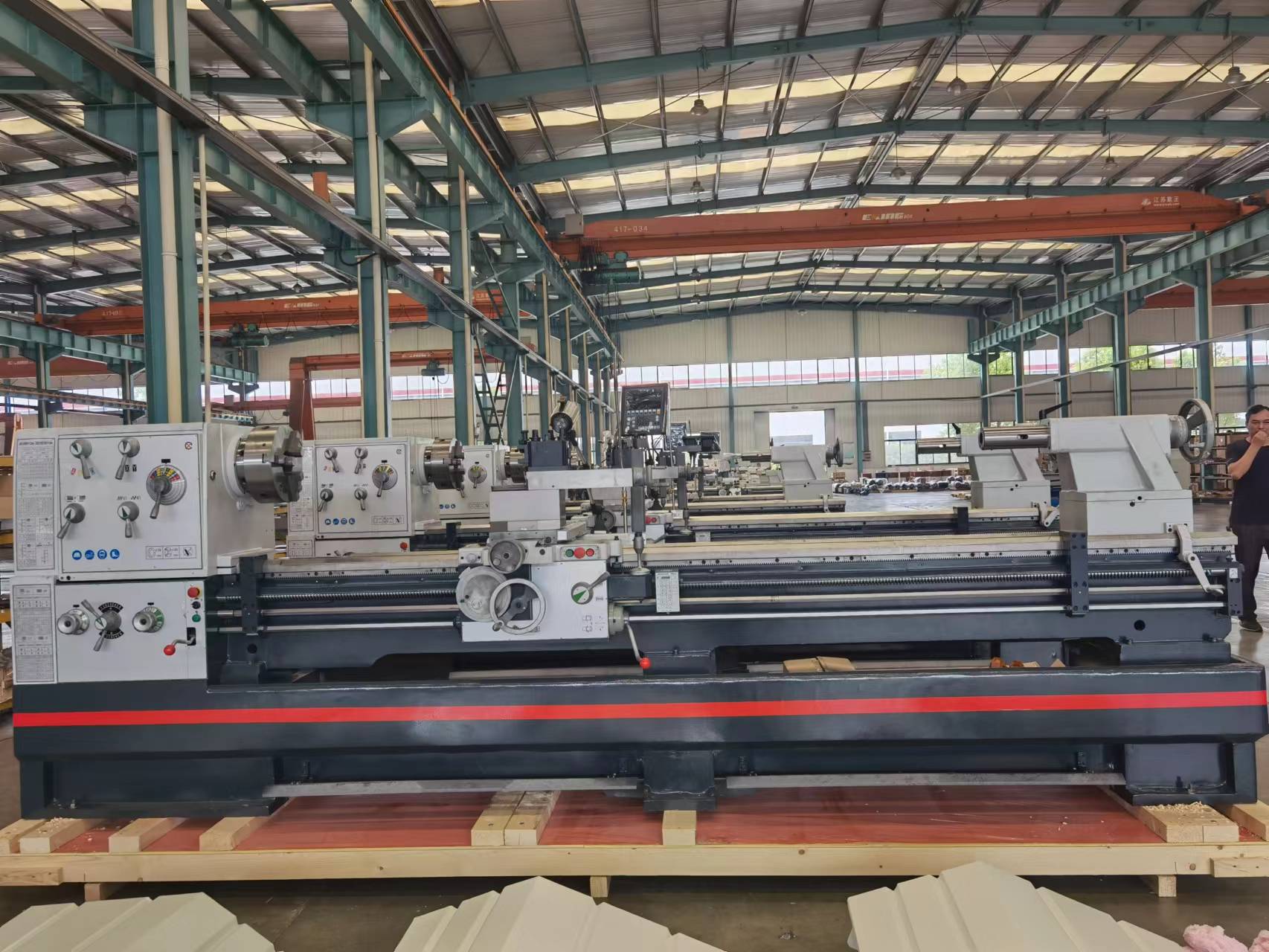

C62800X2000MM /3000MM
| Quantity: | |
|---|---|
‹
›
C62800 Feature:
· A modern version of classic lathe with robust construction for industria production
· 7.5kw powerful motor for industrial working
· 105mm spindle bore with D1-8 spindle nose
· Provide to 315mm/D1-8 3 jaw chuck
· Double vee bedway hardened and precision ground
· Separate leadscrew for thread cutting
· Dedicated feed shaft for longitudinal and cross feed
· Central lubrication in bed slide
· X/Y rapid feed
· One piece of casting iron stand for better rigidity
· European CE electrical standard with Siemens contactors
· Equip with safety covers, LED lamp, coolant system, foot brake
| Model No. | C62800×1500 | C62800×2000 | C62800×3000 |
| Distance between centres | 1500mm | 2000mm | 3000mm |
| Swing over bed | 800mm | 800mm | 800mm |
| Swing over cross slide | 570mm | 570mm | 570mm |
| Swing over gap | 1035mm | 1035mm | 1035mm |
| Gap length | 330mm | 330mm | 330mm |
| Width of bed | 400mm | 400mm | 400mm |
| Spindle bore taper | 113mm (1:20) | 113mm (1:20) | 113mm (1:20) |
| Spindle bore | 105mm | 105mm | 105mm |
| Spindle nose | D1-8 | D1-8 | D1-8 |
| Range of spindle speed | 25-1600rpm/16 | 25-1600rpm/16 | 25-1600rpm/16 |
| Range of longitudinal feeds | 0.044-1.48mm/r | 0.044-1.48mm/r | 0.044-1.48mm/r |
| Range of cross feeds | 0.022-0.74mm/r | 0.022-0.74mm/r | 0.022-0.74mm/r |
| Range of inch threads | 7/16-80TPI | 7/16-80TPI | 7/16-80TPI |
| Range of metric threads | 0.45-120mm | 0.45-120mm | 0.45-120mm |
| Range of diametric threads | 7/8-160DP | 7/8-160DP | 7/8-160DP |
| Range of module threads | 0.25-60mm | 0.25-60mm | 0.25-60mm |
| Top slide travel | 230mm | 230mm | 230mm |
| Cross slide travel | 368mm | 368mm | 368mm |
| Carriage travel | 1250mm | 1250mm | 1250mm |
| Tailstock quill travel | 235mm | 235mm | 235mm |
| Diameter of quill | 90mm | 90mm | 90mm |
| Tailstock quill taper | MT5 | MT5 | MT5 |
| Max. tool size | 32x32mm | 32x32mm | 32x32mm |
| Net weight | 3220kg | 3505kg | 3870kg |
| Gross weight | 3705kg | 4005kg | 4480kg |
| Pump power | 0.125kw | 0.125kw | 0.125kw |
| Motor power | 7.5kw | 7.5kw | 7.5kw |
| Dimension of machine | 3200×1230×1750mm | 3700×1230×1750mm | 4700×1230×1750mm |
| Packing size | 3240×1140×1980mm | 3740×1140×1980mm | 4740×1140×1980mm |
| Standard accessories | Optional accessories | ||
| Four jaw chuck/400mm | 3-axis digital readout | ||
| Follow rest | Quick change tool post | ||
| Steady rest | Professional top rest cover | ||
| Face plate | Taper attachment | ||
| Safety spindle cover | Electromagnetic brake | ||
| Leadscrew cover | Driving plate | ||
| Threading dial | Live centers | ||
| Adjustable feed stoppers | Turning tools | ||
| LED work lamp | 11kw motor | ||
| Coolant system | |||
| Foot brake | |||
| X/Y rapid feed (370w motor) | |||
| Dead centers | |||
| Toolbox & tools |
