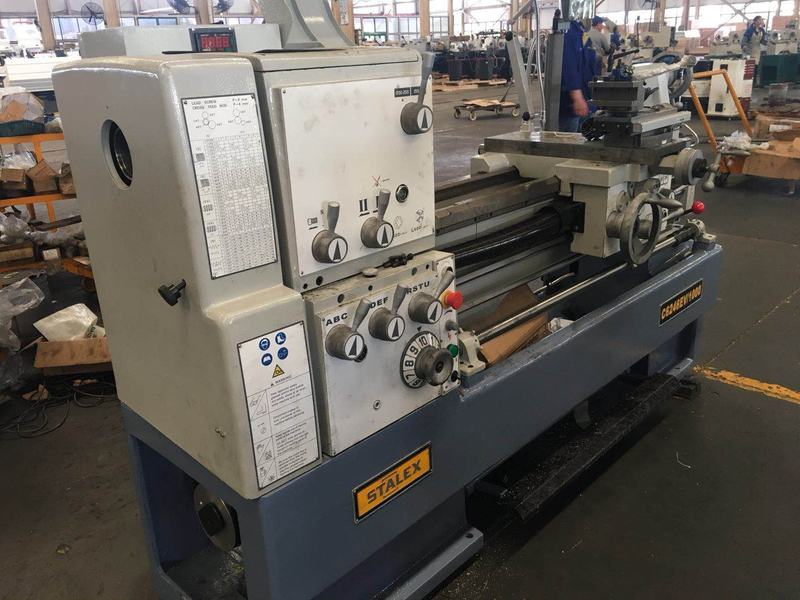

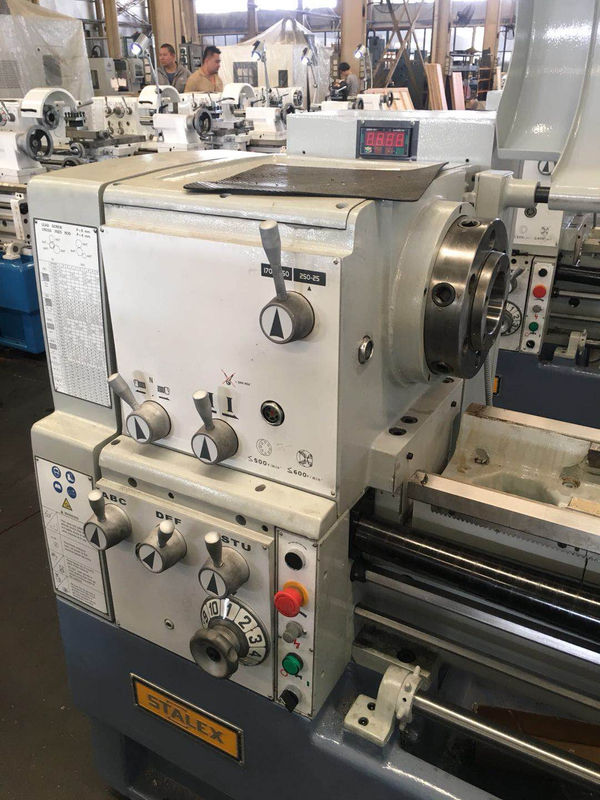

C6256 VARIO X1000/1500MM/2000MM /3000MM
| Quantity: | |
|---|---|
VarioFeature:
· A modern version of classic lathe with robust construction for industria production
· 7.5kw powerful frequency motor for industrial working
· Delta inverter provide to stable quality
· 80mm spindle bore with D1-8 spindle nose
· Provide to 315mm/D1-8 3 jaw chuck
· Double vee bedway hardened and precision ground
· Separate leadscrew for thread cutting
· Dedicated feed shaft for longitudinal and cross feed
· Central lubrication in bed slide
· Adjustable feed stoppers for longitudinal feed
· One piece of casting iron stand for better rigidity
· European CE electrical standard with Siemens contactors
· Equip with safety covers, LED lamp, coolant system, foot brake
| Model No. | C6256×1500 Vario | C62560×2000 Vario | C62560×3000 Vario |
| Distance between centres | 1500mm | 2000mm | 3000mm |
| Swing over bed | 560mm | 560mm | 560mm |
| Swing over cross slide | 355mm | 355mm | 355mm |
| Swing over gap | 785mm | 785mm | 785mm |
| Gap length | 170mm | 170mm | 170mm |
| Width of bed | 350mm | 350mm | 350mm |
| Spindle bore taper | MT8 | MT8 | MT8 |
| Spindle bore | 80mm | 80mm | 80mm |
| Spindle nose | D1-8 | D1-8 | D1-8 |
| Range of spindle speed | 25-220/220-1500rpm | 25-220/220-1500rpm | 25-220/220-1500rpm |
| Range of longitudinal feeds | 0.059-1.646mm/r | 0.059-1.646mm/r | 0.059-1.646mm/r |
| Range of cross feeds | 0.020-0.573mm/r | 0.020-0.573mm/r | 0.020-0.573mm/r |
| Range of inch threads | 2-112TPI | 2-112TPI | 2-112TPI |
| Range of metric threads | 0.1-14mm | 0.1-14mm | 0.1-14mm |
| Range of diametric threads | 4-112DP | 4-112DP | 4-112DP |
| Range of module threads | 0.1-7mm | 0.1-7mm | 0.1-7mm |
| Top slide travel | 130mm | 130mm | 130mm |
| Cross slide travel | 316mm | 285mm | 285mm |
| Carriage travel | 1250mm | 1250mm | 1250mm |
| Tailstock quill travel | 130mm | 130mm | 130mm |
| Diameter of quill | 75mm | 75mm | 75mm |
| Tailstock quill taper | MT5 | MT5 | MT5 |
| Max. tool size | 20x20mm | 20x20mm | 20x20mm |
| Net weight | 2285kg | 2560kg | 2930kg |
| Gross weight | 2740kg | 3110kg | 3700kg |
| Pump power | 0.125kw | 0.125kw | 0.125kw |
| Motor power | 7.5kw | 7.5kw | 7.5kw |
| Dimension of machine | 2840×1100×1460mm | 3340×1100×1460mm | 4340×1100×1460mm |
| Packing size | 2900×1140×1740mm | 3400×1140×1740mm | 4440×1140×1740mm |
| Standard accessories | Optional accessories | ||
| Four jaw chuck/315mm | 105mm spindle bore | ||
| Follow rest | X/Y rapid feed (300w motor) | ||
| Steady rest | 3-axis digital readout | ||
| Face plate | Quick change tool post | ||
| Safety spindle cover | Professional top rest cover | ||
| Leadscrew cover | Taper attachment | ||
| Threading dial | Electromagnetic brake | ||
| Adjustable feed stoppers | Driving plate | ||
| LED work lamp | Live centers | ||
| Coolant system | Turning tools | ||
| Foot brake | |||
| Dead centers | |||
| Toolbox & tools |
