Product Description

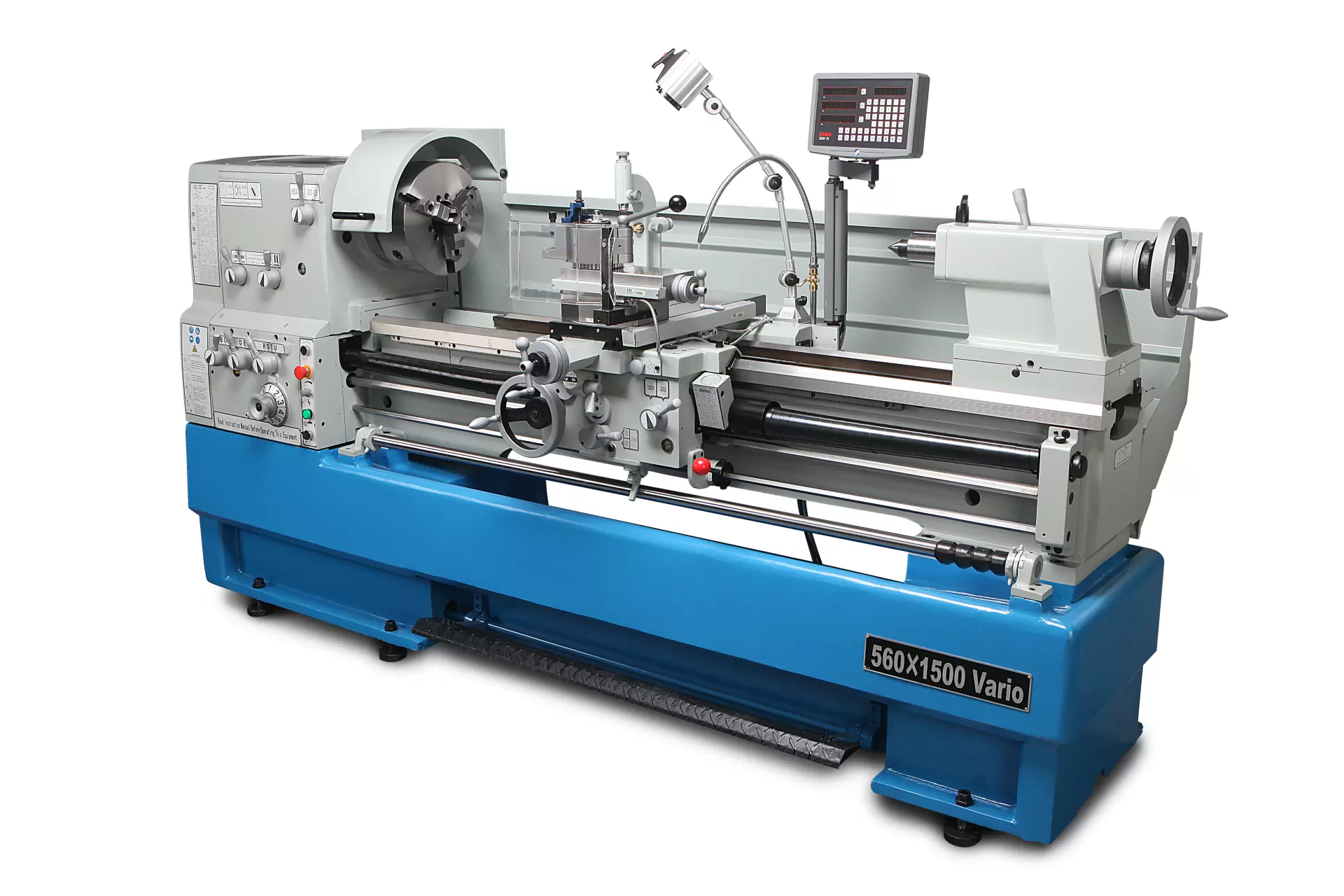

C6256V×1500 Vario

Feature:
· A modern version of classic lathe with robust construction for industria production
· 7.5kw powerful frequency motor for industrial working
· Delta inverter provide to stable quality
· 80mm spindle bore with D1-8 spindle nose
· Provide to 315mm/D1-8 3 jaw chuck
· Double vee bedway hardened and precision ground
· Separate leadscrew for thread cutting
· Dedicated feed shaft for longitudinal and cross feed
· Central lubrication in bed slide
· Adjustable feed stoppers for longitudinal feed
· One piece of casting iron stand for better rigidity
· European CE electrical standard with Siemens contactors

· Equip with safety covers, LED lamp, coolant system, foot brake

Model No.	C6256V×1500 Vario	C6256V×2000 Vario	C6256V×3000 Vario
Distance between centres	1500mm	2000mm	3000mm
Swing over bed	560mm	560mm	560mm
Swing over cross slide	355mm	270mm	270mm
Swing over gap	785mm	690mm	690mm
Gap length	170mm	240mm	240mm
Width of bed	350mm	300mm	300mm
Spindle bore taper	MT8	MT6	MT6
Spindle bore	80mm	80mm	80mm
Spindle nose	D1-8	D1-6	D1-6
Range of spindle speed	25-220/220-1500rpm	25-220/220-1500rpm	25-220/220-1500rpm
Range of longitudinal feeds	0.059-1.646mm/r	0.031-1.70mm/r	0.031-1.70mm/r
Range of cross feeds	0.020-0.573mm/r	0.014-0.784mm/r	0.014-0.784mm/r
Range of inch threads	2-112TPI	2-112TPI	2-112TPI
Range of metric threads	0.1-14mm	0.1-14mm	0.1-14mm
Range of diametric threads	4-112DP	4-112DP	4-112DP
Range of module threads	0.1-7mm	0.1-7mm	0.1-7mm
Top slide travel	130mm	125mm	125mm
Cross slide travel	316mm	285mm	285mm
Carriage travel	1250mm	1750mm	2750mm
Tailstock quill travel	130mm	130mm	130mm
Diameter of quill	75mm	60mm	60mm
Tailstock quill taper	MT5	MT4	MT4
Max. tool size	20x20mm	20x20mm	20x20mm
Net weight	2285kg	2560kg	2930kg
Gross weight	2740kg	3110kg	3700kg
Pump power	0.125kw	0.125kw	0.125kw
Motor power	7.5kw	7.5kw	7.5kw
Dimension of machine	2840×1100×1460mm	3340×1100×1460mm	4340×1100×1460mm
Packing size	2900×1140×1740mm	3400×1140×1740mm	4440×1140×1740mm
Standard accessories	Optional accessories
Four jaw chuck/315mm	105mm spindle bore
Follow rest	X/Y rapid feed (300w motor)
Steady rest	3-axis digital readout
Face plate	Quick change tool post
Safety spindle cover	Professional top rest cover
Leadscrew cover	Taper attachment
Threading dial	Electromagnetic brake
Adjustable feed stoppers	Driving plate
LED work lamp	Live centers
Coolant system	Turning tools
Foot brake
Dead centers
Toolbox & tools
