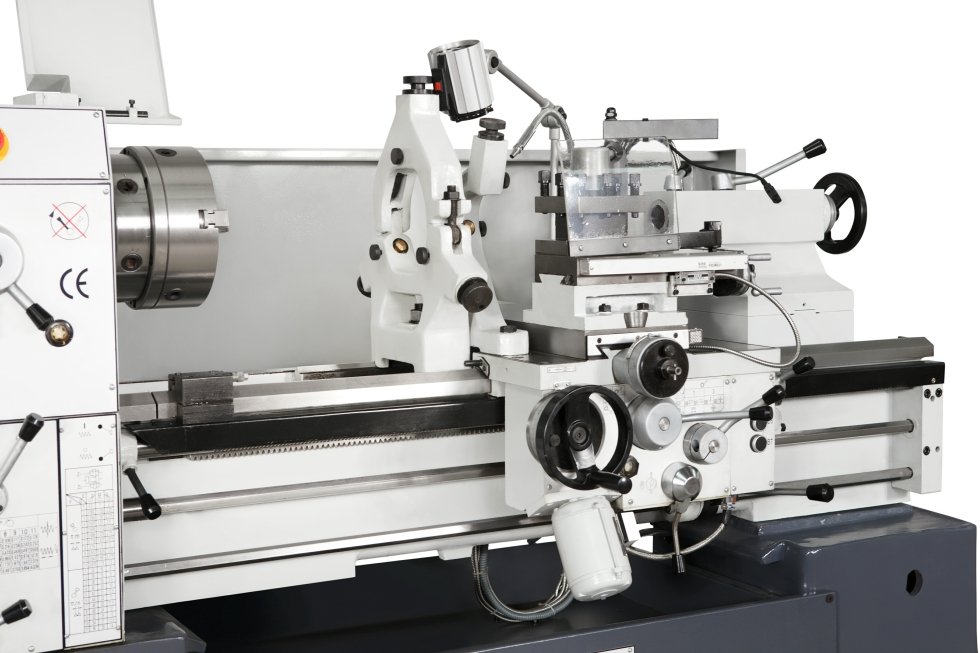

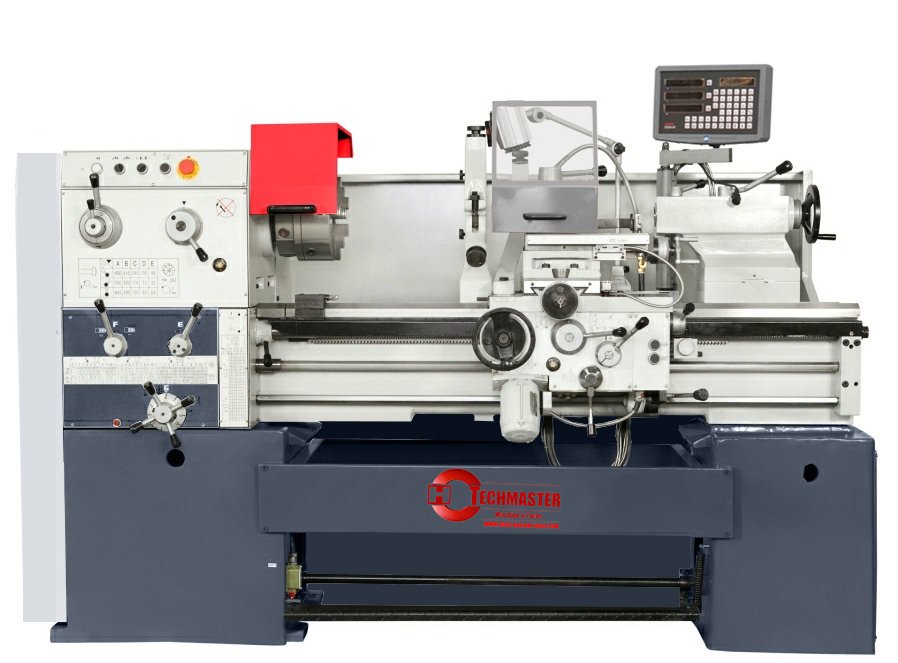

A modern universal lathe, easy in operation equipped with a multi-plate friction clutch and a digital readout for 3 axes. The lathe is used in repair divisions and at lot production.
| SWING OVER BED | 500 mm with LCD readout |
| SWING OVER CROSS SLIDE | 300 mm |
| SWING OVER GAP | 580 mm |
| TURNING LENGTH OVER GAP | 315 mm |
| CENTRE DISTANCE | 1500 mm |
| BED | inductively hardened |
| BED WIDTH | 330 mm |
| LATHE CHUCK DIAMETER | 250 mm |
| SPINDLE BORE | 80 mm |
| SPINDLE TAPER | D1-8 CAMLOCK |
| | Morse 7 |
| SPINDLE SPEEDS RANGE | 24 - 1600 rpm |
| MAXIMAL TOOL DIMENSIONS | 25 x 25 mm |
| FEED LONGITUDINAL | 0.063 – 2.52 mm/rotation |
| FEED CROSS | 0.027 – 1.07 mm/rotation |
| METRIC THREAD | 1 - 14 mm (22 types) |
| INCH THREAD | 28-2 pitch of thread/inch (26 types) |
| MODULAR THREAD | 0.5 - 7 mm (18 types) |
| D.P. THREAD | 56 - 4 D.P. (24 types) |
| RAPID FEED LONGITUDINAL | longitudinal – 4.5 m/min,
cross – 1.9 m/min |
| TAILSTOCK SPINDLE DIAMETER | 75 mm |
| TAILSTOCK SPINDLE TRAVEL | 150 mm |
| TAILSTOCK SPINDLE TAPER | MT 5 |
| DIGITAL READOUT | for 3 axes |
| MAIN MOTOR POWER | 5.5 kW |
| FLOOD COOLANT PUMP POWER | 0.09 kW |
| OVERALL DIMENSIONS | 2420 mm x 1150 mm x 1450 mm |
| NET WEIGHT | 2650 kg |
