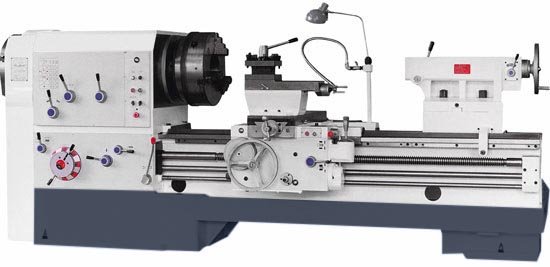

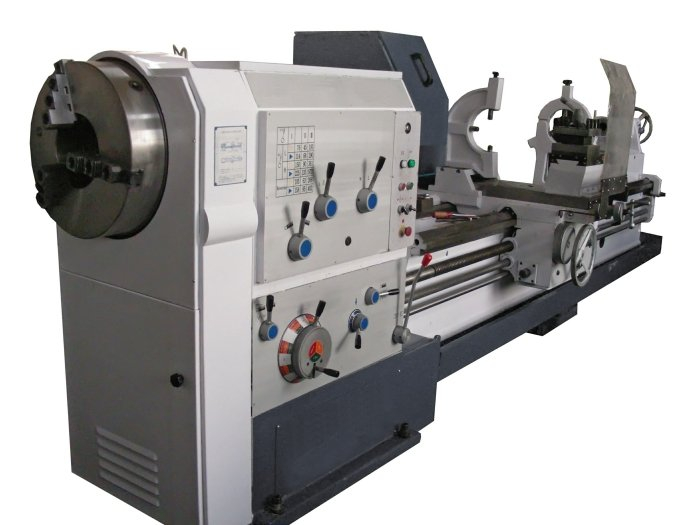

Universal lathes 840XX1500

SWING OVER BED

840 mm

TUBE OUTSIDE DIAMETER

210 mm

MAXIMAL WORKPIECE LENGTH

1500 mm

MAXIMAL TURNING LENGTH

1350 mm

SPINDLE BORE

210 mm

SPINDLE TAPER BORE

225 mm

SPINDLE SPEEDS RANGE

12 gears (45 ~ 572 r/min)

SLEEVE TAPER

MT6

LONGITUDINAL FEEDS RANGE

32 types, 0.1-1.5 mm / r

CROSS-FEEDS RANGE

32 types

METRIC THREAD

22 types, 1-15mm

INCH THREAD

28 types, 15-1 TPI

MODULAR THREAD

21 types, 0.5-7.5um

TAILSTOCK SPINDLE DIAMETER

100 mm

MAXIMAL SLEEVE STROKE

300 mm

MOTOR POWER

9 kW

MOTOR SPEED

1000 rpm

FLOOD COOLANT PUMP POWER

0.125 kW
