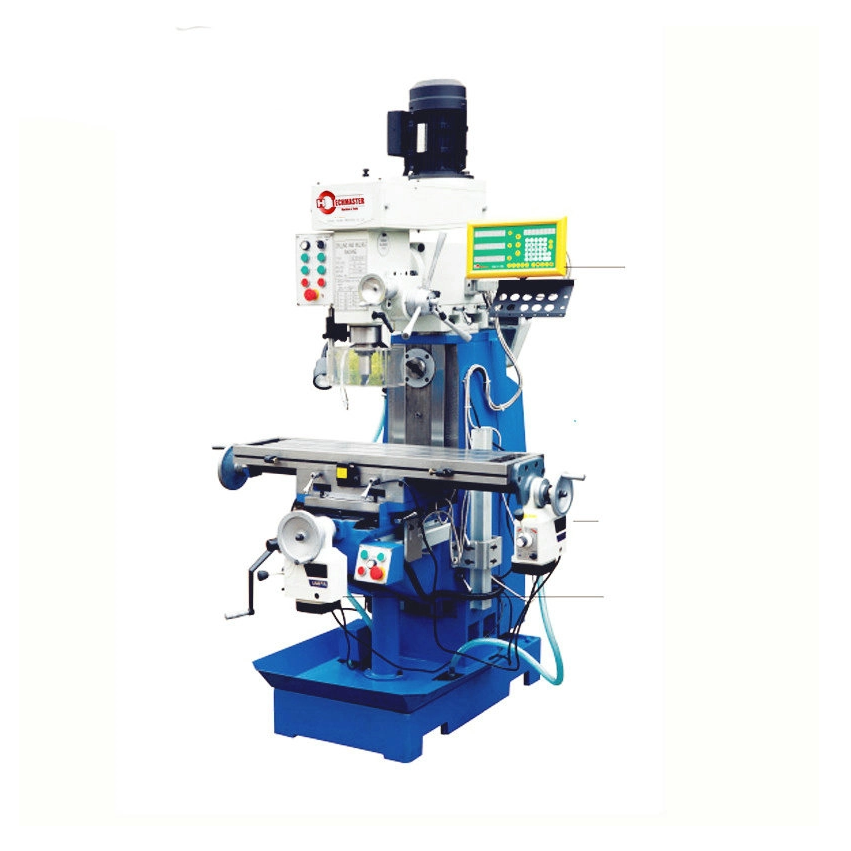

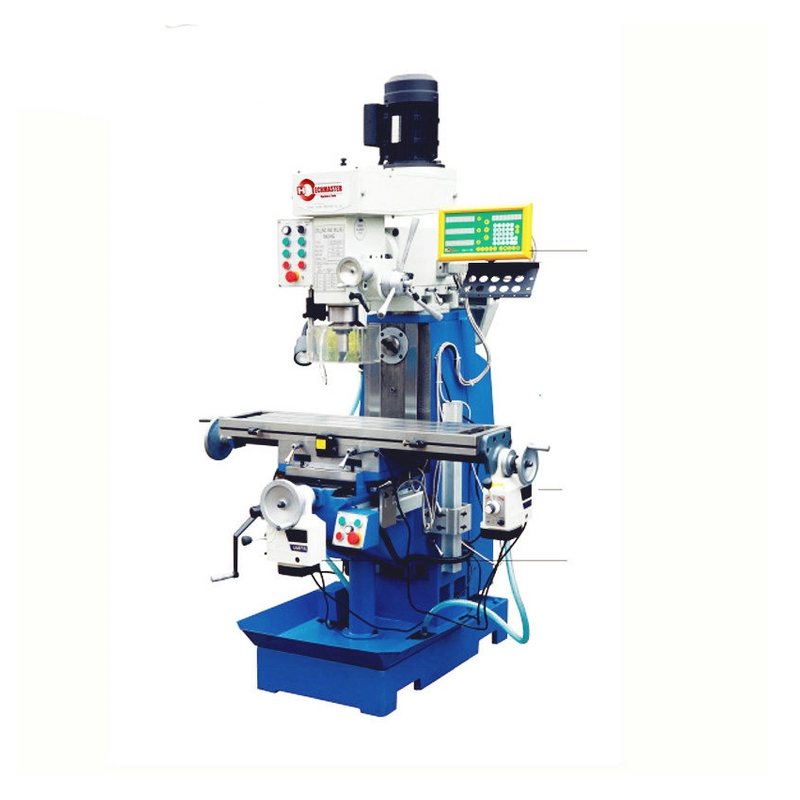

ZX7550BW BELT DRIVE
| Quantity: | |
|---|---|
Feature
Vertical and horizontal both by belt-driven
recycling coolant system
Longitudinal power feed
high-precision spindle
work light
Technical Parameter
Model | ZX7550BW |
Max.drilling dia. | 30 mm(R8) |
Max.end milling width | 100 mm |
Max.vertical milling dia. | 25 mm |
Work table size | 800x240 mm (1000x240 mm) |
Table travel | 400 x 230 mm |
Spindle travel | 120 mm |
Spindle speed range | 220-2400, 60-1350 |
Distance from spindle nose to table surface | 70-370 mm |
Motor | 2.2kw / 1.5kw |
NW/GW | 850/930 kgs |
Packing size | 1280x1220x2240 mm |
Standard accessories | |
| 1、Draw bra | 2、Adapter |
| 3、Taper shank for drilling chuck | 4、Drilling chuck |
| 5、T slot bolt | 6、 Washer |
| 7、Nut | 8、Tilted wedge |
| 9、Spanner | 10、Inner hexagonal spanner |
| 11、Horizontal milling bar | 12、Oil gun |
| 13、Instruction Manual | 14、Certificate of inspection |
| 15、Pacjing list | |
Optional accessories | |
| 1、Table power feed (X-axis) | 2、Table power feed (Y-axis) |
| 3、Halogen working lamp | 4、Cooling pump |
| 5、Power off protective cover(CE) | 6、Digital display(Three axis) |
| 7、Double speed motor | 8、Rotary table |
| 9、1000m worktable | 10、Milling chuck set(8pcs/set) |
| 11、Machine Vise（160mm） | |
