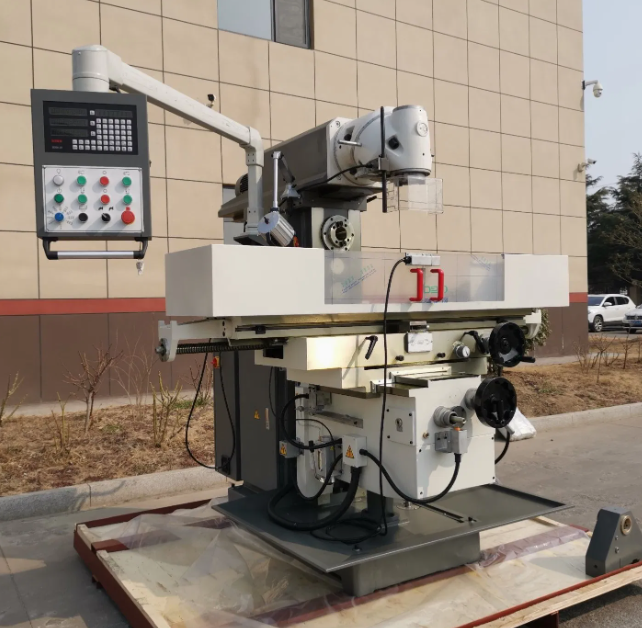

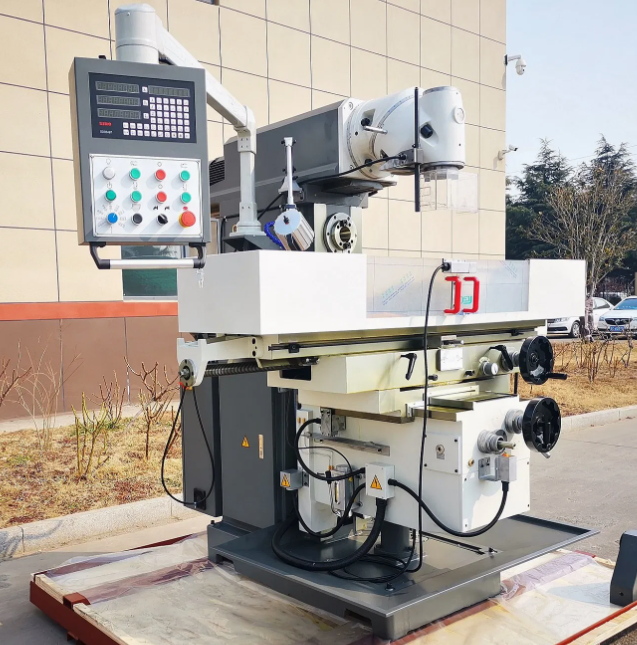

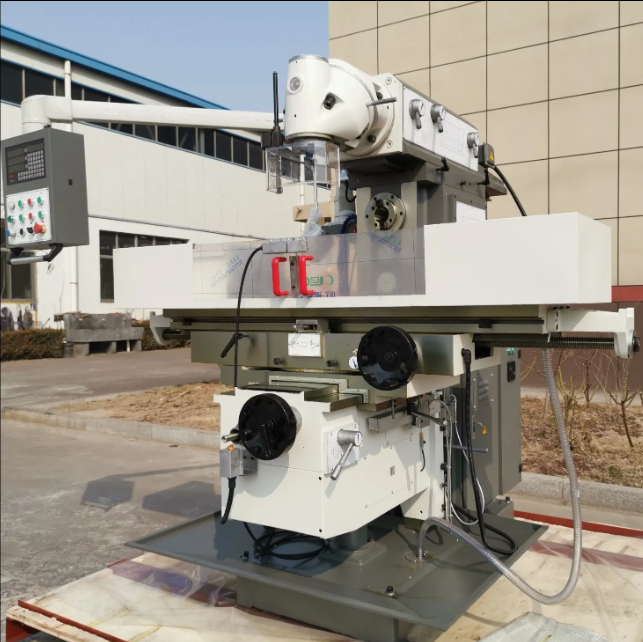

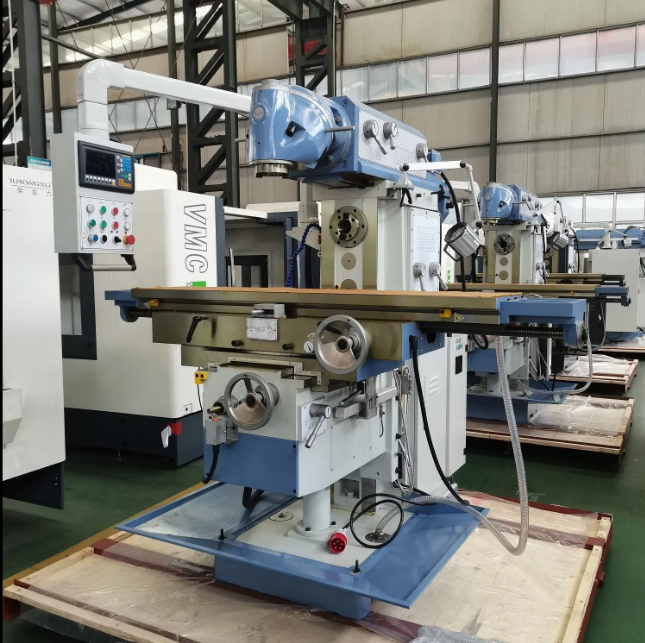

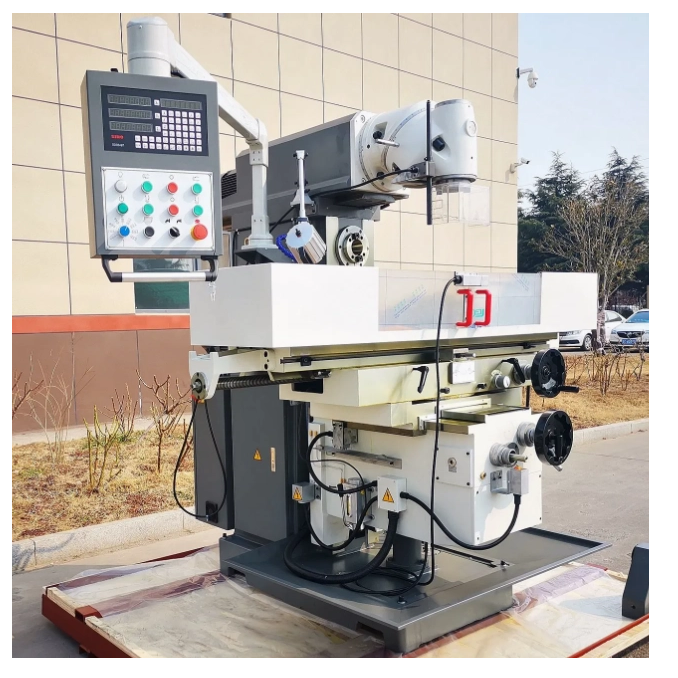

XL6436 XL6436c XL6436cl X6436 Conventional Vertical and Horizontal Swivel Head Automatic Feed Universal Milling Machine
| Quantity: | |
|---|---|
XL6436 XL6436C XL6436CL X6436
Conventional Vertical and Horizontal Swivel head automatic feed Universal Milling Machine Price with DRO
1.Finely graduated feeds in all axis, driven by servo motor, it is a patent product in our company.
2.Complete with rapid feed in x-, y- and z-axis to reduce downtime
3.Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance
Fast delivery . Welcome your inquiry !!!
Detailed Photos
The XL6436 series milling machines are universal machines that are capable of diverse machining, like drilling, reaming, milling and boring.
Featuring optimum structure, easy operation and less maintenance, the machine can also be equipped with DRO system for higher positioning and efficiency in batch production.
The machines have a wide application for single-piece or small batch production in manufacturing, instruments, construction, maintenance and repair workshops and so like industries.

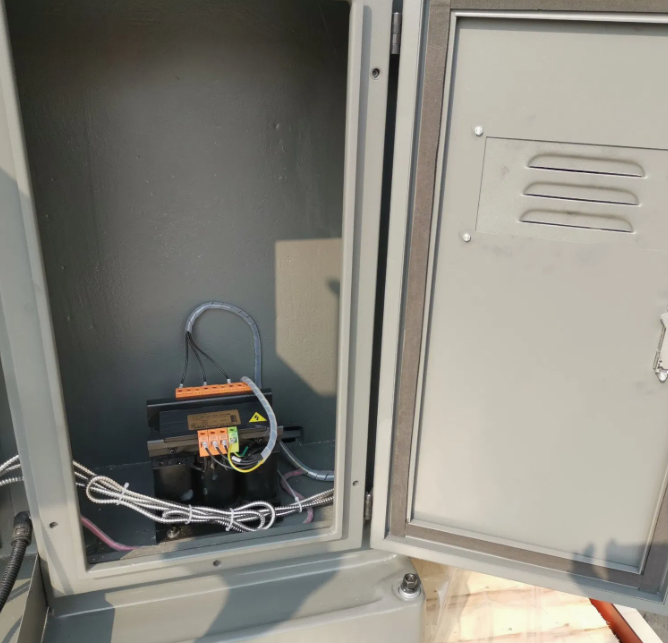

360 degree swivel head 45 degree swivel table (XL6436CLW) CE electric components

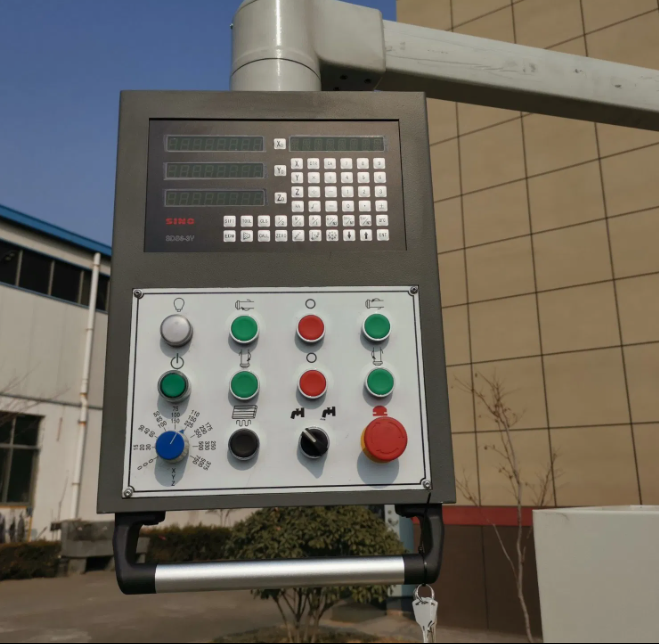

3-axis digital readout(optional) XYZ 3-axis automatic feed by servo motor vertical spindle motor 4KW
Worktable protection(optional) It`s our patented product. Horizontal spindle motor 5.5KW
Product Parameters
| Specifications | Unit | X6436 | X6436C | X6436CL |
| Table size | mm | 1325×360 | 1600×360 | |
| Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
| Table feed(X/Y/Z) | mm/min | 30~750/20~500/15~375 | ||
| Spindle taper | 7:24 IS050 (H) 7:24 IS050 (V) | |||
| Arm travel | mm | 550 | ||
| Distance between spindle nose and table surface | mm | 196-656 | 196-646 | |
| Distance between horizontal nose and table surface | mm | 20-480 | 20-470 | |
| Distance between spindle axis and arm surface | mm | 200 | ||
| Spindle speed range | r.p.m | 12 steps 60-1750 (V) 12 steps 60-1800 (H) | ||
| T-slots(NO./width/pitch) | mm | 3/18/80 | ||
| Main motor power | Kw | 5.5 (H) 4 (V) | ||
| 3 to feed Ac servo motor torque | N.m | 15 | ||
| Overall size | mm | 1800×2100×2000 | 2245×2100×2000 | 2520×2100×2000 |
| Net weight | kg | 2685 | 2750 | 2800 |
