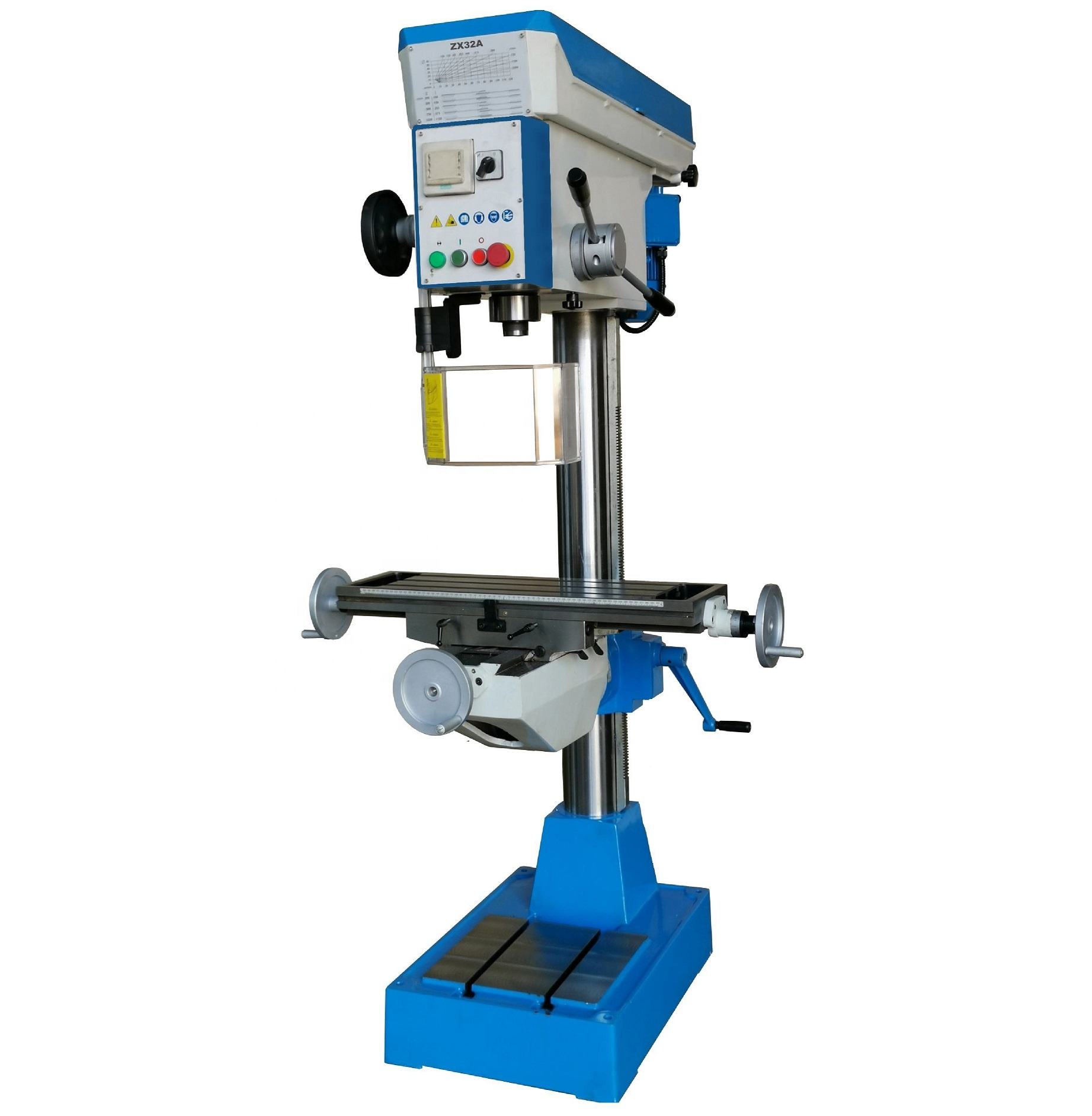

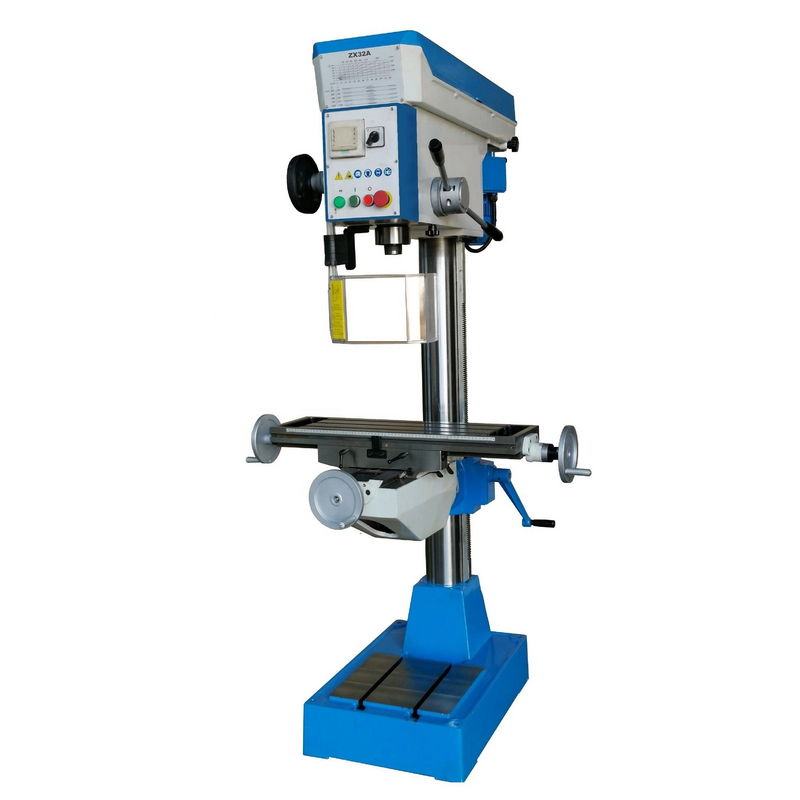

ZX32A

Drilling capacity

32mm

Tapping capacity

24mm

Face milling capacity

80mm

Spindle taper (option)

MT4

Distance from spindle axial to column surface

300mm

Working table longitudinal travel

480mm

Working table cross travel

220mm

Working table size

730mm×210mm

Dimeter of column

Φ123mm

T-slot size

12mm

Max distance spindle nose to worktable

50-700mm

Spindle stroke

130mm

 Feed range

3 depth feed (0.05mm/0.1mm/0.2mm)

Machine motor power

1.1/1.9kW

Spindle speed(rpm)

100-2200

Outside  dimension

850×1150×1900mm

NW

410kg
