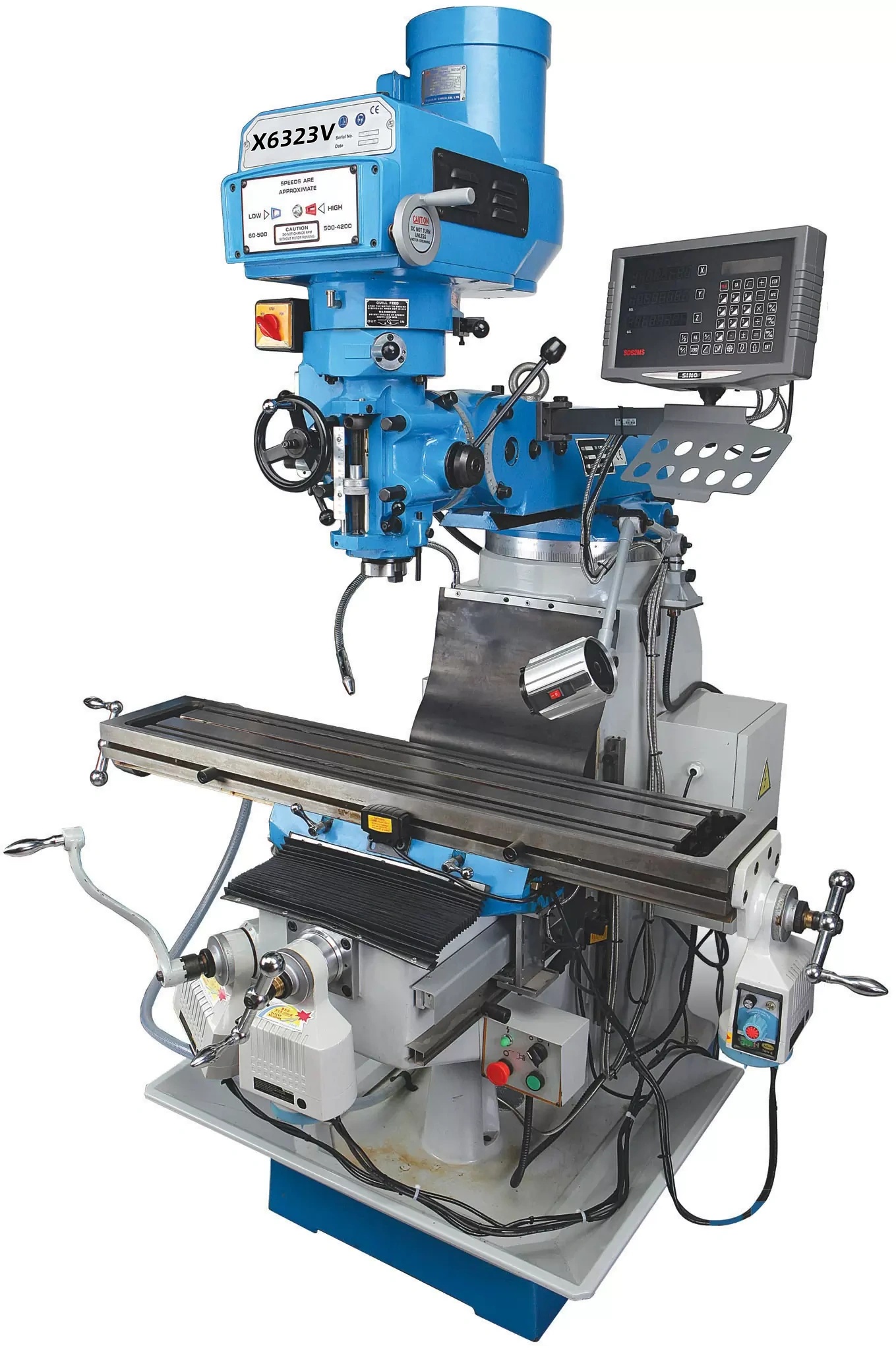

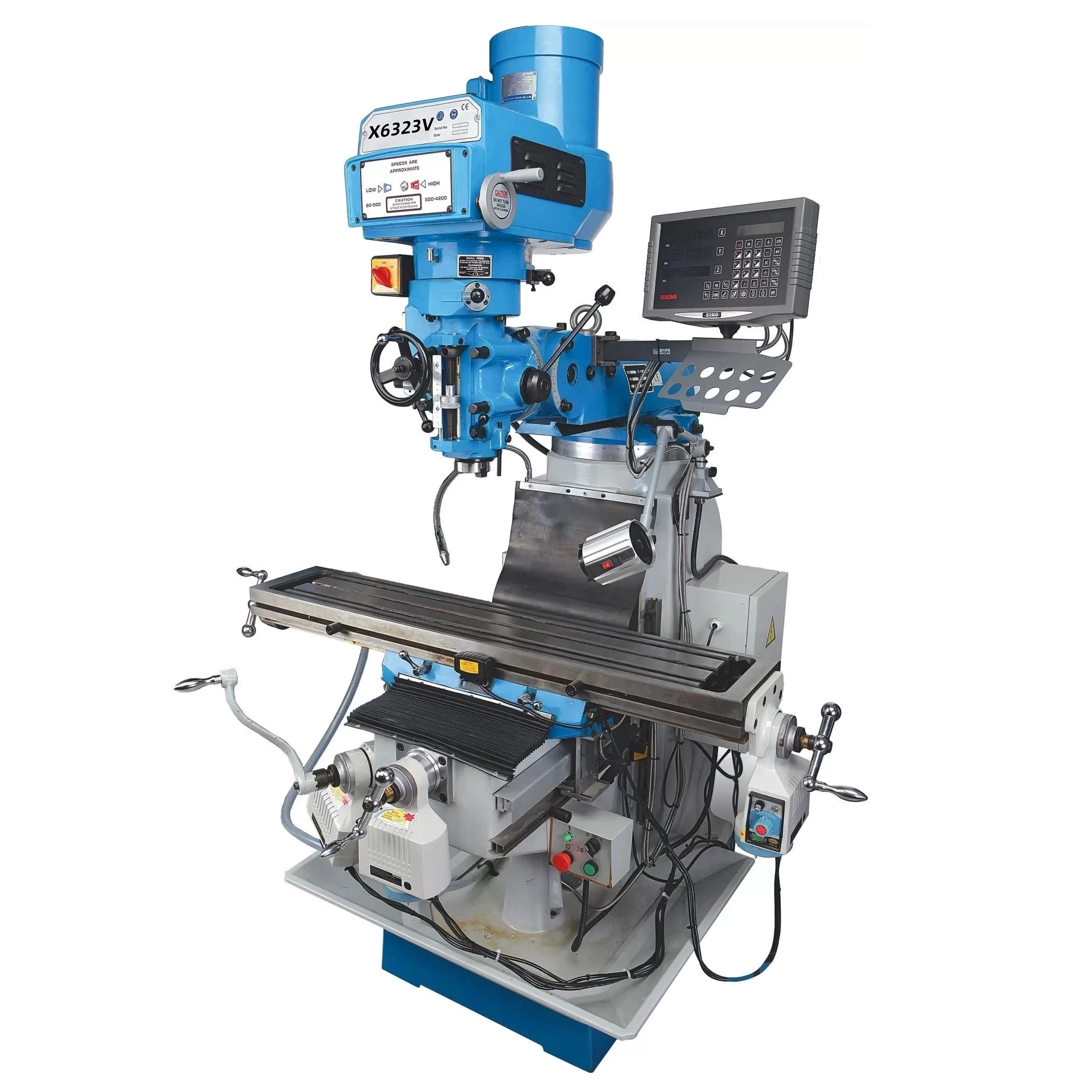

Features:
Steplessly adjustable spindle speed with mechanic spindle brake
Universal mill head can be turned,tilted and swivelled
Hardened and ground guide ways in all axis
Central lubrication system to slideways and leadscrews
| Model | X6325V |
| Table size | 1370×254 mm |
| Spindle taper | ISO 40 |
| Spindle speed stepless | 65-4500 rpm |
| Spindle feed | 0.04/0.08/0.15 mm/rev. |
| Spindle stroke | 127 mm |
| Longitudinal travel | 950 mm |
| Cross travel | 400 mm |
| Travel vertical | 420 mm |
| Distance spindle to column | 155-680 mm |
| Head tilting range | -90° to +90° |
| Mill head tilting range | -45° to +45° |
| Distance spindle to table | 0-405 mm |
| T-slot size | 16 mm |
| Net weight | 1400 KG |
| Gross weight | 1600 KG |
| Motor power | 3.75KW |
| Voltage | 400 V |
| Ampere | 9.3 A |
| Diamesion of machine | |
| Loading Qty 20"/40" CTN |
| Standard accessries | Optinal accessories |
| Drawbar | X/Y/Z-axis power feed |
| Arbor | Air drawbar system |
| Coolant system | Digital readout |
| Halogen light | Electronic lubrication pump |
| Chip tray |
