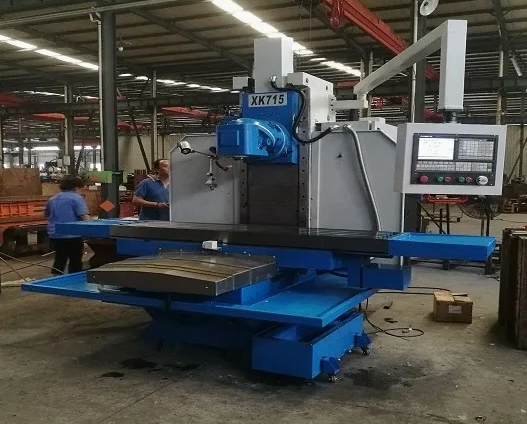

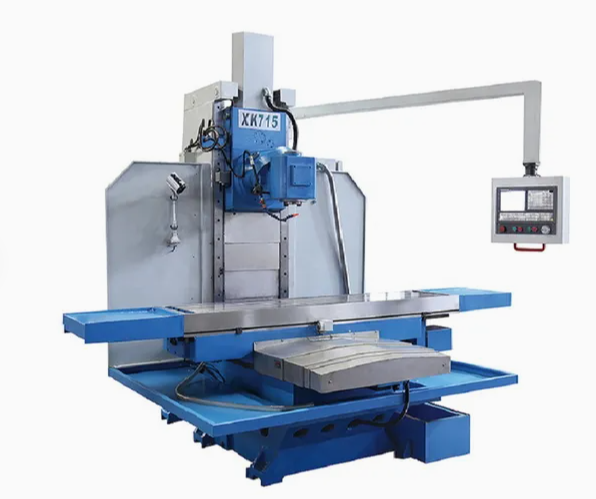

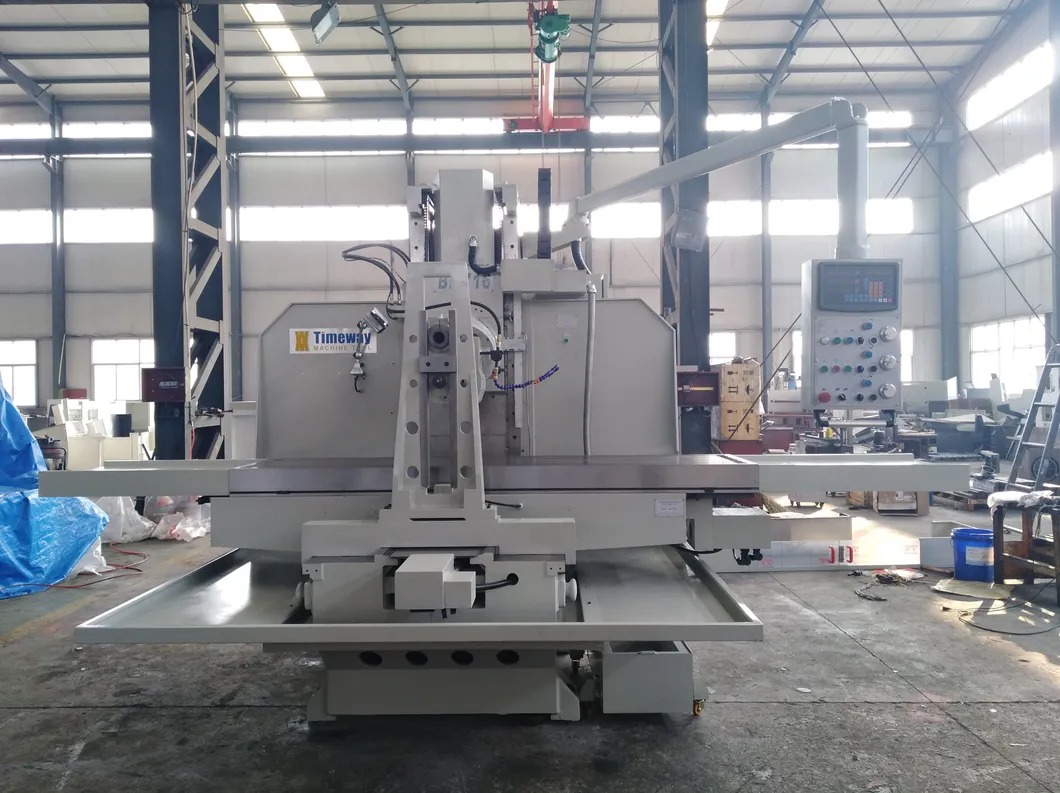

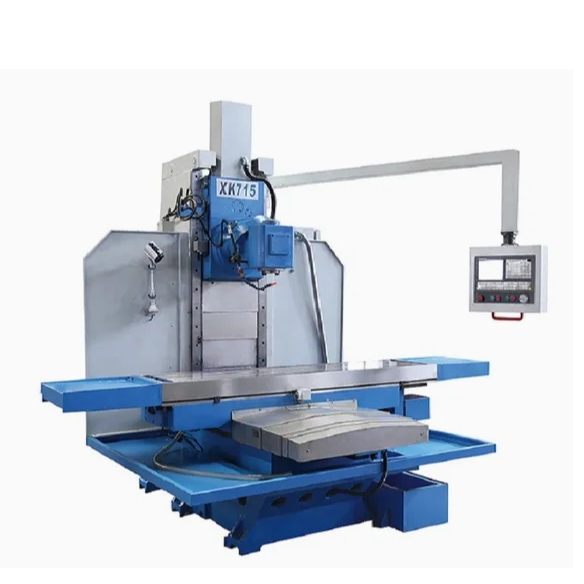

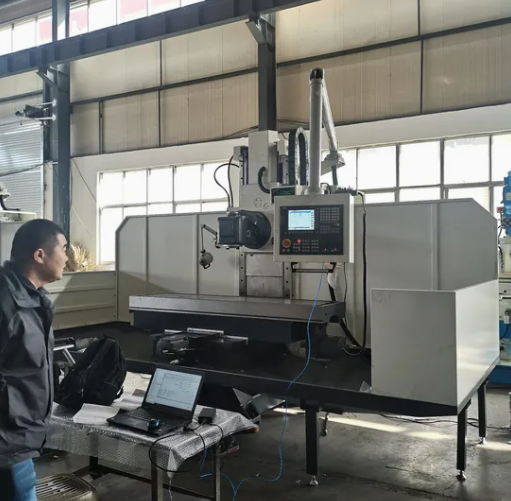

CNC Bed Type Milling Machine for Metal Working X715;X716
| Quantity: | |
|---|---|
Machine features
• 2000kg heavy duty, bed-type milling machine
• 360° swivel head, vertical & horizontal milling available
• infinitely variable spindle speeds
• 3-axis ball screws
• 3-axis individual servo motors driven
• equipped with E-handwheels for manual control of table movement
• equipped with automatic electronic lubrication pump
• equipped with coolant system & coolant water tank
In order to realize the low-speed and high-torque function of the spindle, the machine sets up 2-stage automatic transmission and spindle servo motor. The low speed is 6~300r/min and the high speed is 30~1500r/min.

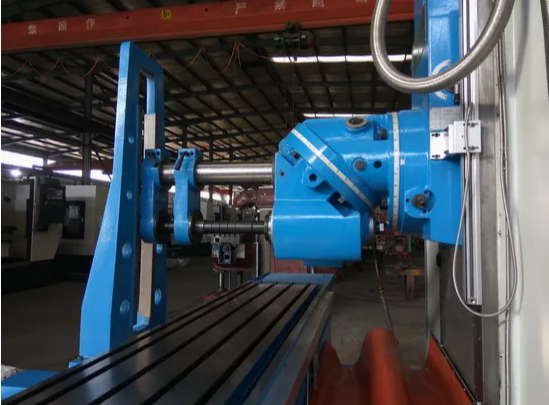

The external milling head consists of two 45 ° slide rests, which can turn 360 ° in the left and right direction and 0~90°in up and down direction. The combination of the spindle center line can rotate at any angle in front hemisphere arbitrary space, so that the tool is milled.
Machine tool spindle taper hole is of the ISO50; it can be equipped with end mills, vertical mills, cutter sets, taper shank cutter, disc cutter and forming cutter. By using collet chuck, small straight shank cutter can be installed. Processing materials includes steel, cast iron and non-ferrous metal, which can be milled at ordinary speed, can also be milled in high-speed or high-speed & high-intensity used with carbide tools. It is ensured sufficient rigidity under the rated load of the machine tool.
This machine is not only suitable for large batches production, but also suitable for single-piece and small batches production, machine repair workshop or mold workshop.
| Items | X715 | X716 |
| Working area | ||
| Table size | 2100x500mm | 2500x600mm |
| T-slot (width x No. x pitch) | 20mmx4x100mm | 20mmx5x100mm |
| Max. load of table | 2000kg | |
| Distance from spindle nose to table surface | 0-650mm | 0-700mm |
| Distance from spindle axis and table surface | 8-660mm | |
| Distance between spindle axis and column guideway | 610mm | 8-660mm |
| Travel | ||
| Longitudinal travel of X axis | 1500mm | 1800mm |
| Cross travel of Y axis | 650mm | 700mm |
| Spindle | ||
| Spindle taper | 7:24 ISO50 | |
| Spindle speed | (2steps) 6-300r/min, 30-1500r/min | |
| Main motor power | 11kW | |
| Feed | ||
| Table feed-X/Y | 2.5-3000mm/min | |
| Table feed-Z | 2.5-2500mm/min | |
| Table rapid feed X/Y/Z | 6000/6000/3000mm/min | |
| Others | ||
| Coolant motor | 90W | |
| Overall dimension | 3220x2420x2800mm | 4380x2520x2800mm |
| Net weight | 7300kg | 9000kg |
ISO 50 Milling chuck (4, 6, 8, 12, 16, 18, 22, 26)
Milling holder ISO50-Φ40
Middle sleeve ISO50/MS4
Draw bar
Oil gun
Foundation bolts
Tools & tool box
Working lamp
Coolant system
Automatic lubrication pump
Coolant water tank
Horizontal milling support bracket
Operation manual
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

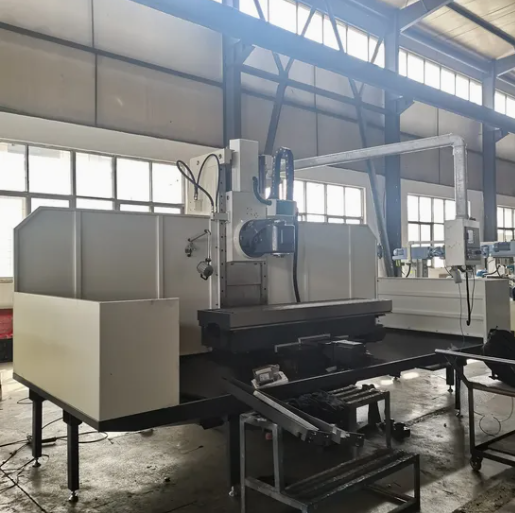

Machine packed with plywood case and steel pallet.
Packing method:
packing size: 2.90x2.23x2.85m (NOTE: need open-top container)
2)Dismantle machine and pack in 2 plywood cases, (shown as below photos), packing size: 2.70x2.25x1.80m & 2.10x1.80x2.25m
Pack 1: machine column & electrical box
Pack 2: machine base with work-table
