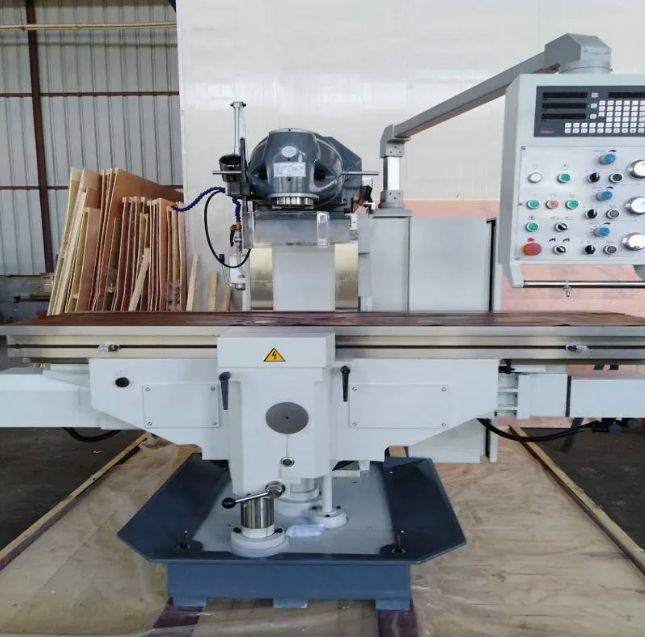

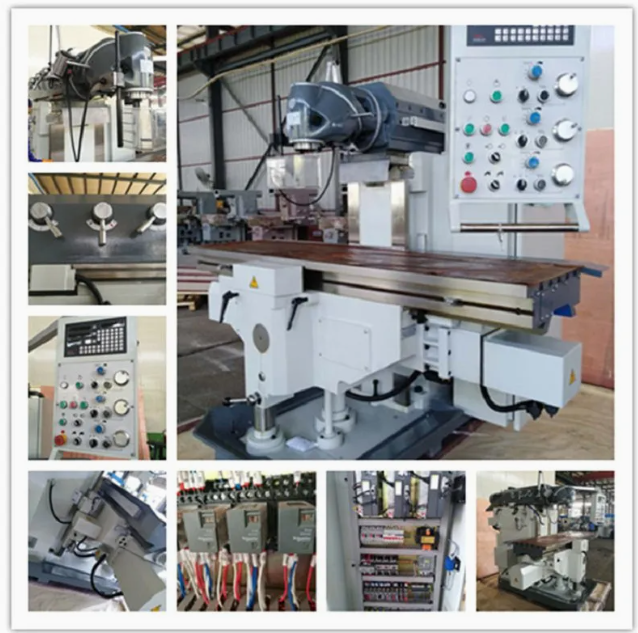

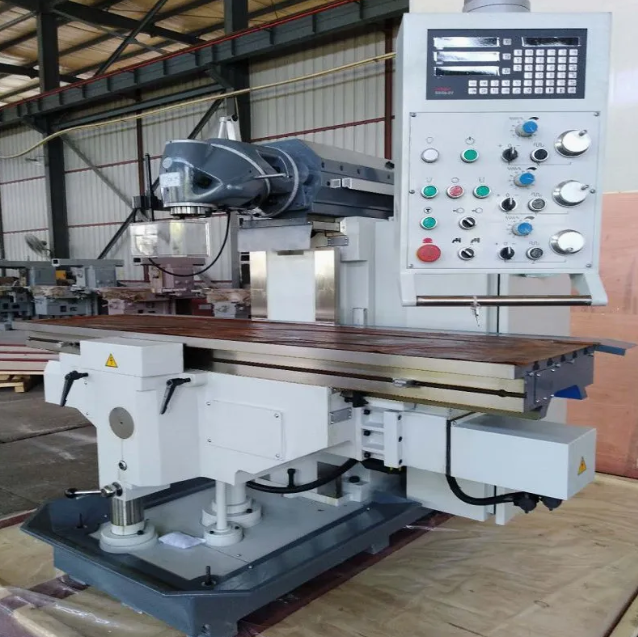

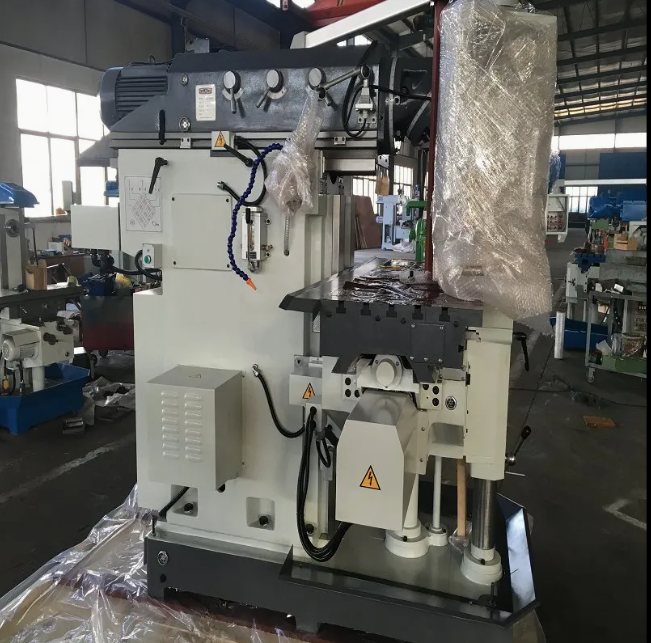

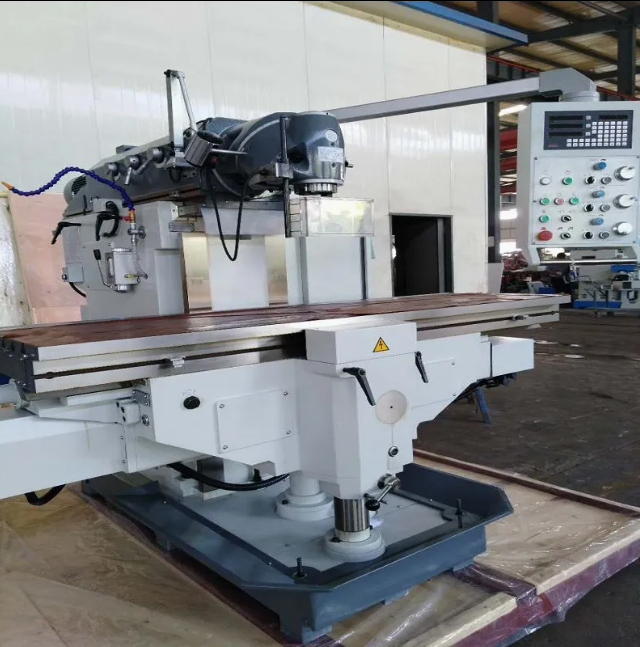

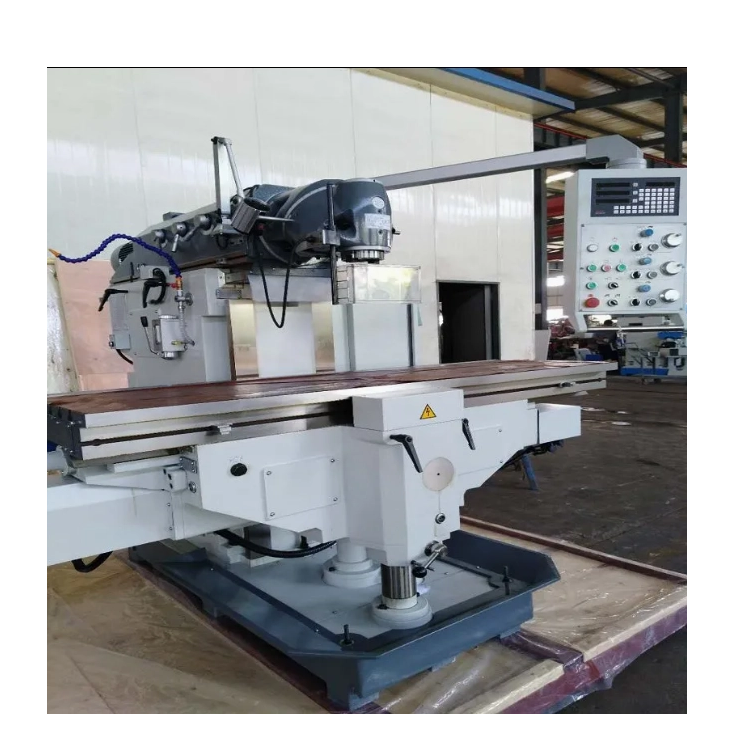

Universal RAM Milling Machine with CE Certification X5750

China universal ram milling machine with CE certification

★ Fine elaborate workmanship and neat appearance with perfect paint finish.
★ High Rigidity: Robust & rugged machine body made of high grade casting assuring superb stability and long lasting life.
★ Bigger Travels: Ram stroke for extended cross feed length and wider cutting scope.
★ High Versatility: Universal milling head with 2 x 45° swivel shells that swivels 360° left to right and 0-90°up to down for high versatile vertical, horizontal and universal machining in a semi-sphere scope.
★ Universal milling head firmly fixed on ram for robust cutting performance.

This universal ram type milling machines are universal machines that are capable of diverse machining, like drilling, reaming, milling and boring. Flat, slant, vertical surfaces cutting and slotting can be done with formed cutter or face mill. Cutting of circular slots and curves can be done with rotary dividing table.

1. large work-table, long travel

2. double-supporting-column design, heavy load capacity

3. servo motor driven sliding ram, very long travel in Y-axis

4. 27 speeds spindle, gearbox driven directly, large speed range for powerful milling

5. universal 360° swivel head can process any angle surface

6. table feeding with 3 separate servo motors, variable speeds, high accuracy, low noise

7. 3-axis ball screws for precise feeding

8. 3-axis E-handwheels on control panel, easy manual control of work-table

The high duty ram milling machine easy operation and less maintenance, the machine can also be equipped with DRO system for higher positioning and efficiency in batch production.
