Feature:
· Compact design and versatility universal milling machine
· Swiveling head for wide range of applications
· Easy to operate switches on swivelling controlling panel
· Lubrication gear head with quite operation
· Rigid constrction of table and base
· Spindle mechanical auto feed
· Horizontal spindle drive by gear
· X and Y-axis power feed as standard
· X-axis power feed drive by gearbox
· Motorized work table up and down
· Swivel work table is standard
· Equip with safety spindle guard, LED work lamp, coolant system

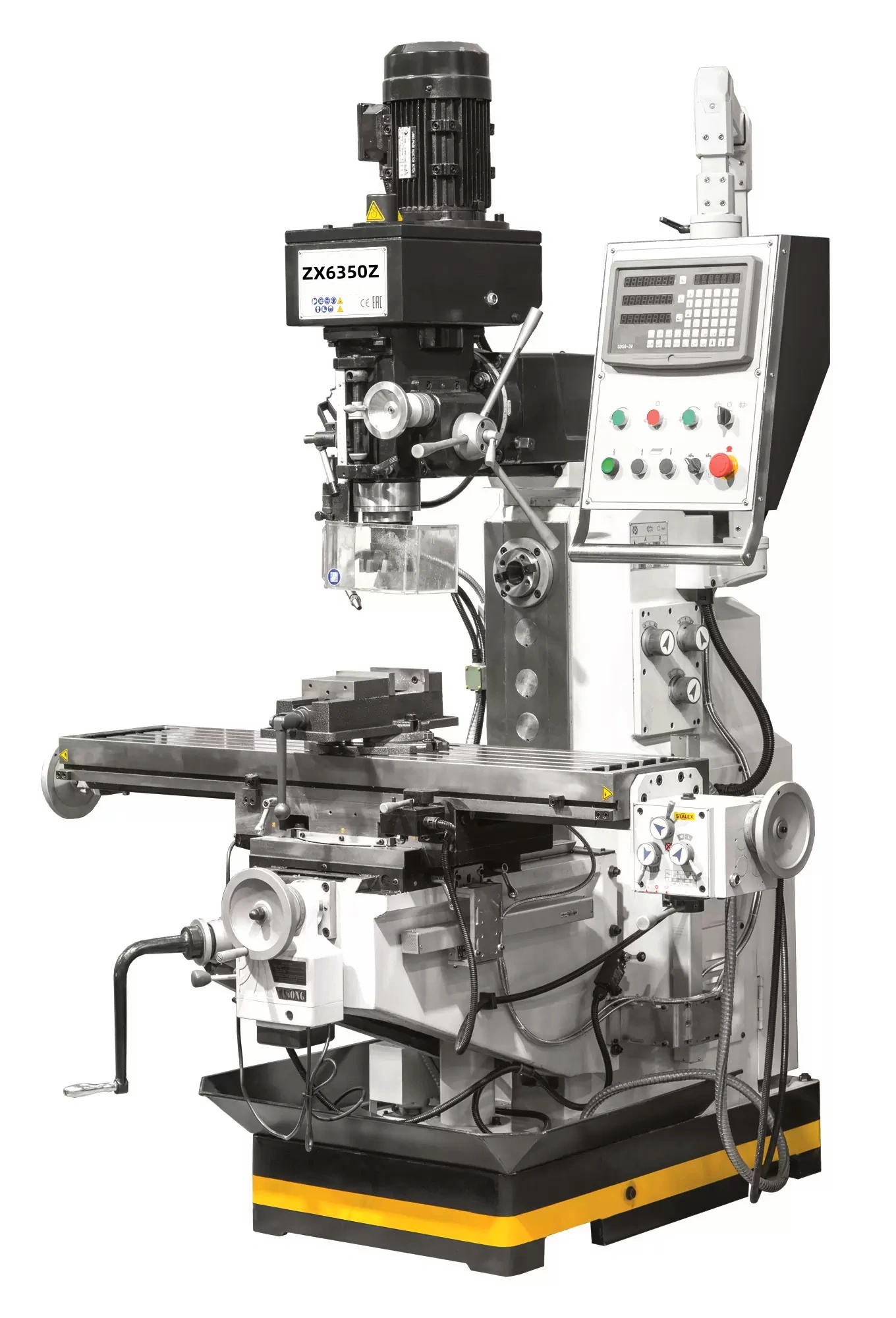

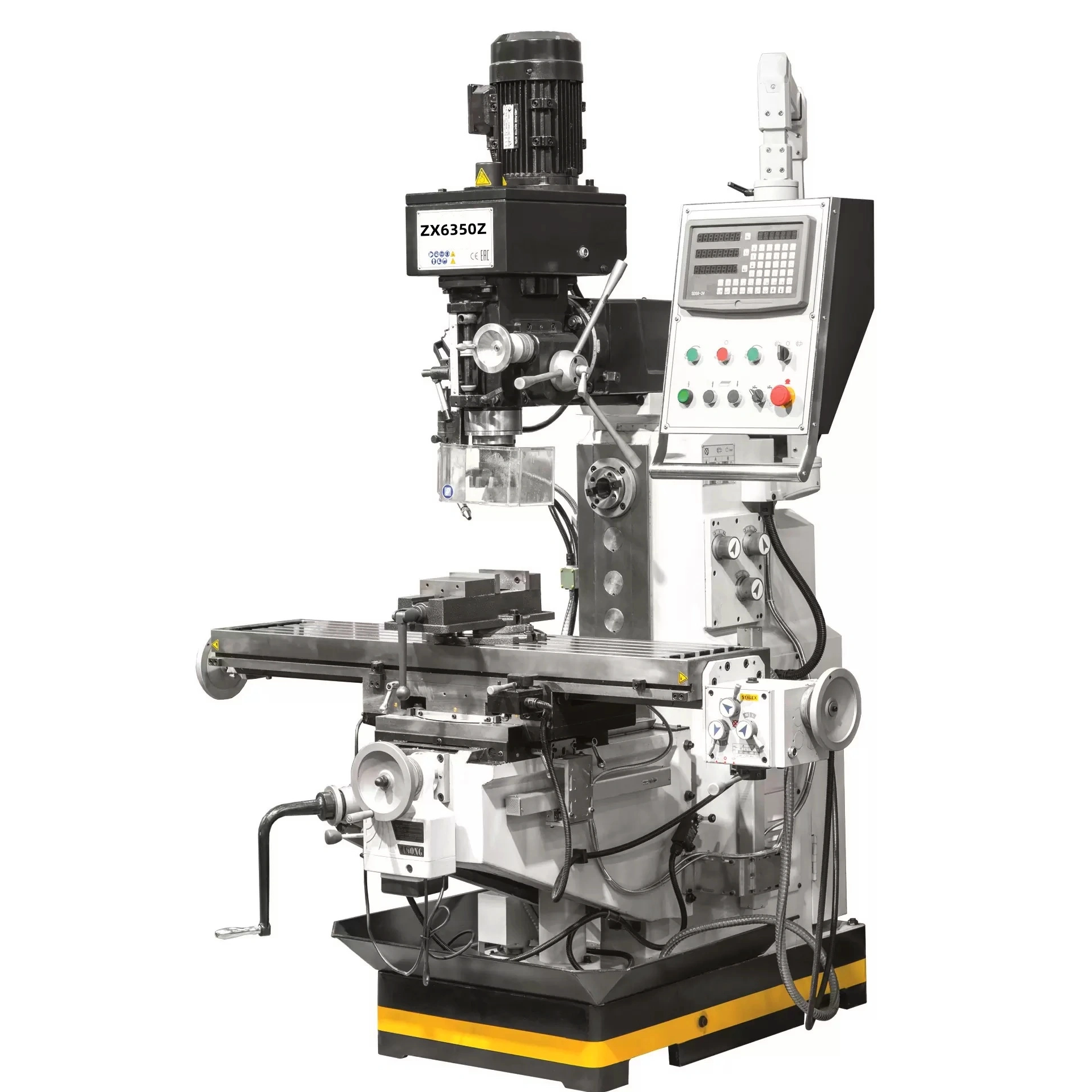

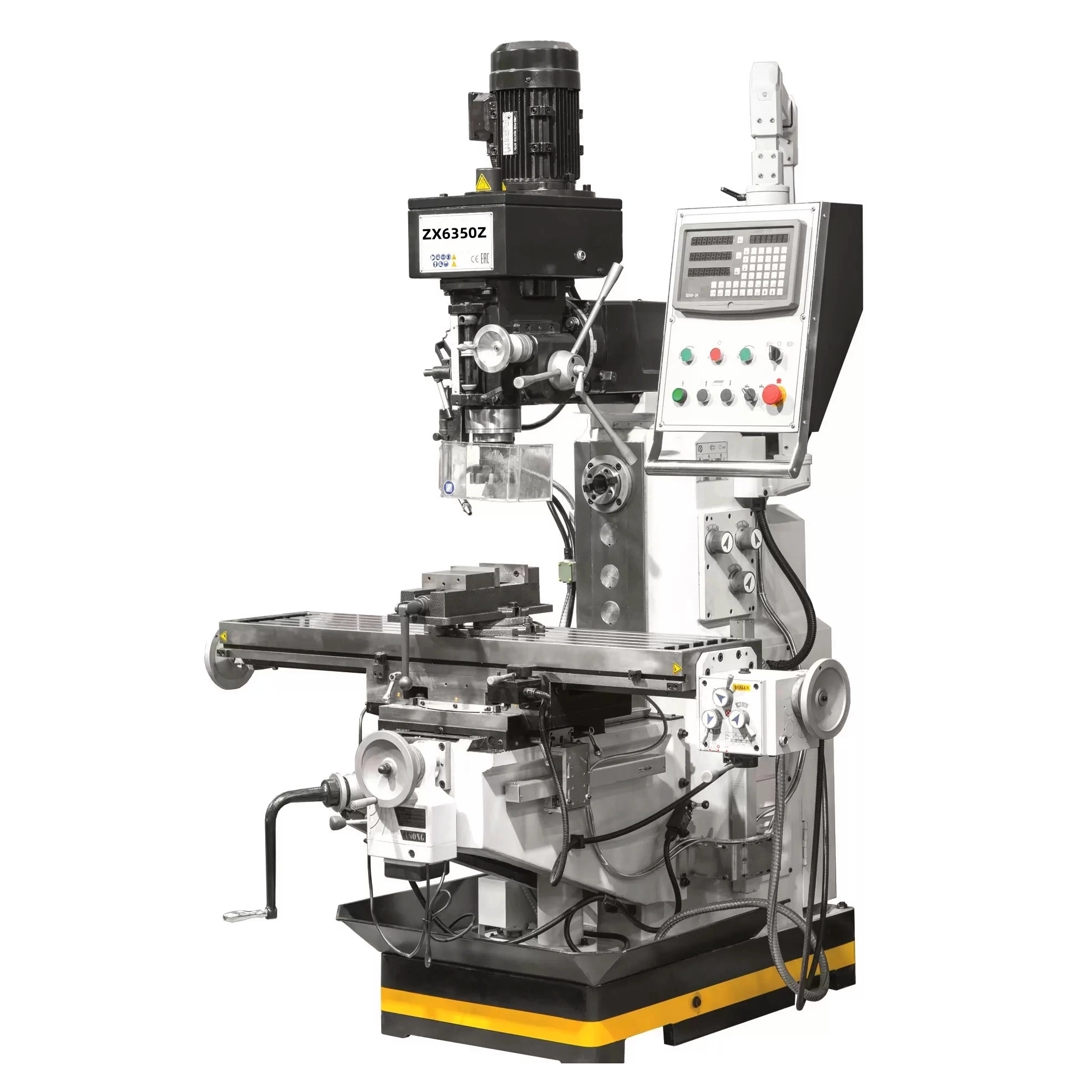

| Model No. | ZX6350Z |
| Max. drilling capacity | 30mm |
| Spindle sleeve diameter | 90mm |
| Spindle taper (H/V) | ISO40/ISO40 |
| Spindle stoke | 120mm |
| Spindle speeds (H/V) | 90-2000rpm (8) / 40-1300rpm (9) |
| Spindle feeds | 0.08/0.15/0.25mm/r |
| X-axis table feeds | 24-720mm/min (8) |
| Head tiltable | ±45° |
| Distance spindle to column | 200-650mm |
| Distance spindle to table | 50-375mm |
| Table size | 1270×280mm |
| T-slot | 14mm/4 |
| Cross travel | 210mm |
| Longitudinal travel | 700 |
| Vertical travel | 310mm |
| Z-axis rapid feed | 660mm/min |
| Table swivel | ±45° |
| Max. workpiece weight | 150kg |
| Coolant pump | 0.04kw |
| Lifting motor | 0.55kw |
| Main motor (H/V) | 1.5/2.2kw |
| Net weight | 1300kg |
| Gross weight | 1400kg |
| Dimension of machine | 1700x1450x2450mm |
| Packing size | 1700x1460x2250 mm |
| Standard accessries | Optional accessories |
| Safety spindle cover | 3-axis digital readout |
| LED work lamp | Drilling vise-BMS 200 |
| Coolant system | Milling vise-QG 6 |
| X-mechanical power feed | Collet chucks |
| Y-axis power feed | 58pcs clamping kits |
| Drill chuck | Pnumetic tool clamping |
| Drawbar | |
| Arbor | |
| Toolbox & tools |
