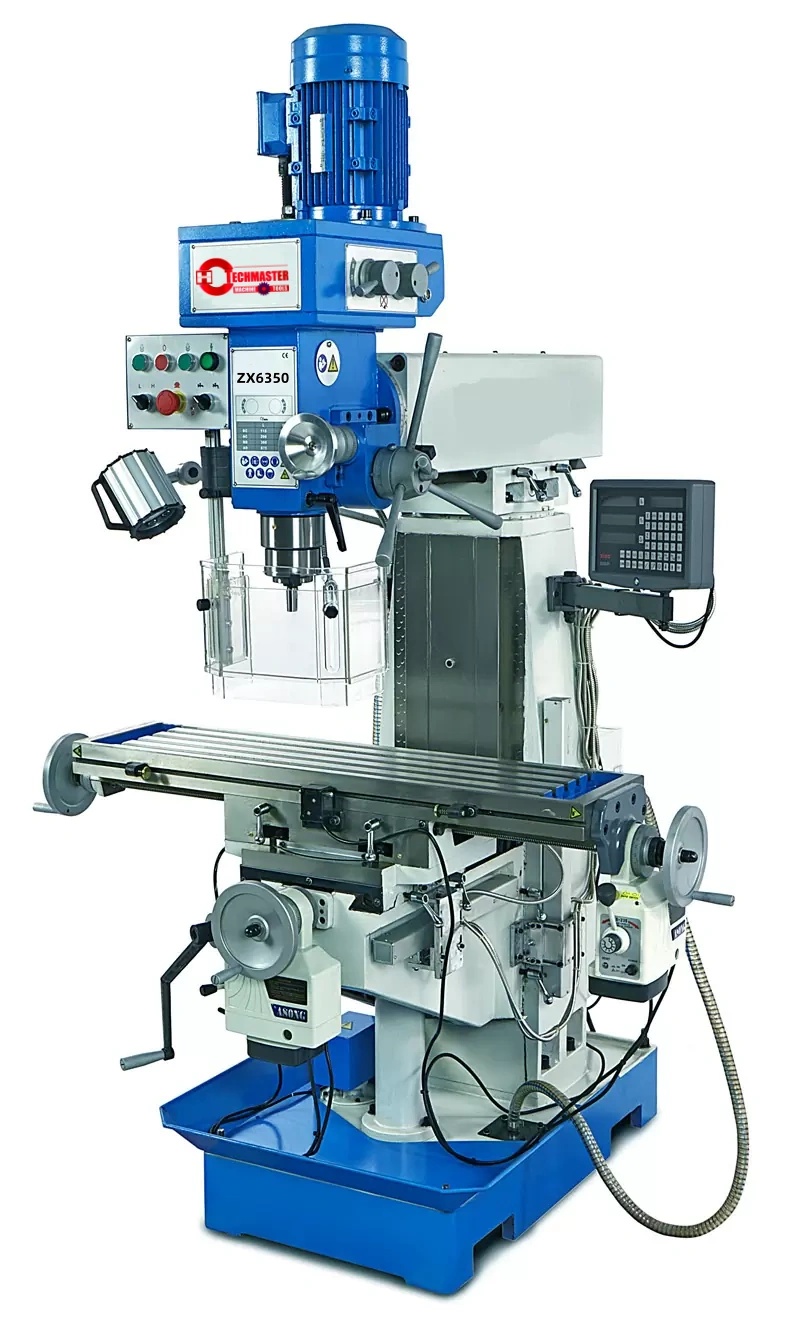

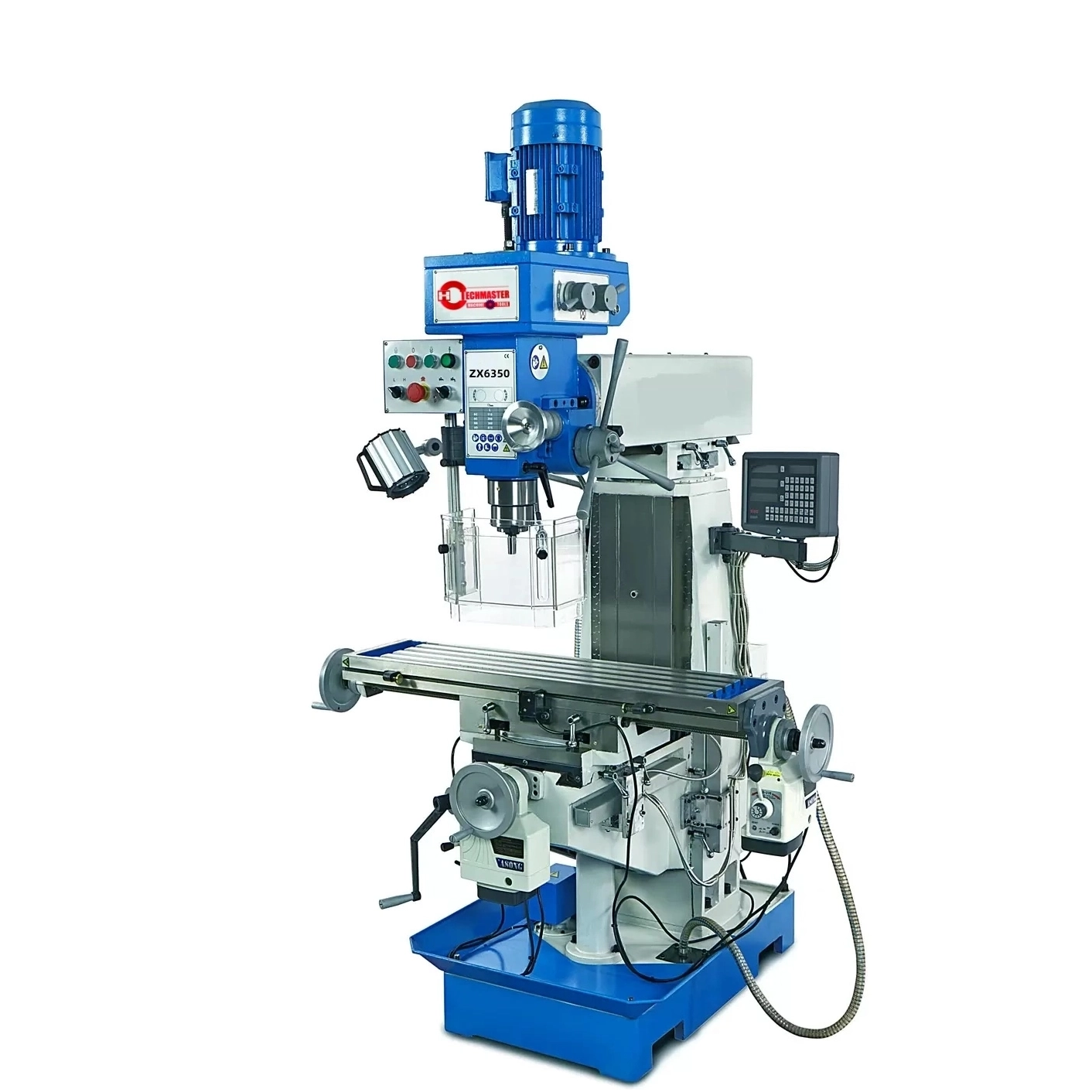

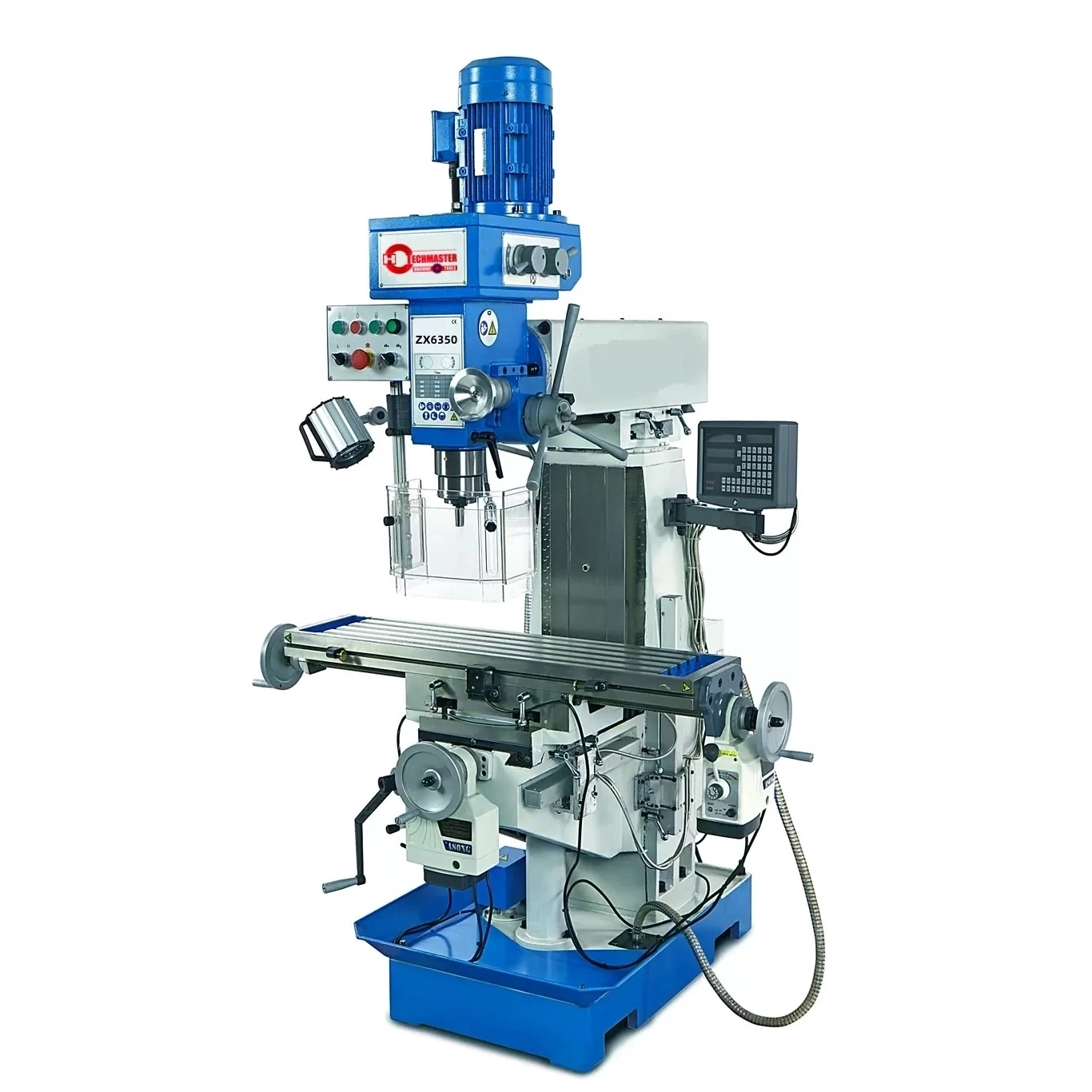

ZX6350 / ZX6350C ( HORIZONTAL SPINDLE DRIVE BY GEAR)
| Quantity: | |
|---|---|
Feature:
· Compact design and versatility universal milling machine
· Swiveling head for wide range of applications
· Easy to operate switches on swivelling controlling panel
· Lubrication gear head with quite operation
· Rigid constrction of table and base
· Horizontal spindle drive by belt
· X and Y-axis power feed as standard
· X-axis power feed drive by gearbox
· Swivel work table is standard
· Equip with safety spindle guard, LED work lamp, coolant system
· Horizontal spindle drive by gear on ZX6350C
| Model No. | ZX6350 | ZX6350C( HORIZONTAL GEAR DRIVE ) |
| Max. drilling capacity | 30mm | 30mm |
| Spindle sleeve diameter | 90mm | 90mm |
| Spindle taper (H/V) | ISO40/ISO40 | ISO40/ISO40 |
| Spindle stoke | 120mm | 120mm |
| Spindle speeds (H/V) | 115-1750rpm (8) / 60-1350rpm (9) | 115-1750rpm / 40-1300rpm (9) |
| X-axis table feeds | 24-720mm/min (8) | 24-720mm/min (8) |
| Head tiltable | ±45° | ±45° |
| Distance spindle to column | 200-700mm | 200-650mm |
| Distance spindle to table | 65-385mm | 50-375mm |
| Table size | 1000×240mm | 1270×280mm |
| T-slot | 14mm/4 | 14mm/4 |
| Cross travel | 160mm | 210mm |
| Longitudinal travel | 580 | 700 |
| Vertical travel | 350mm | 310mm |
| Table swivel | ±45° | ±45° |
| Max. workpiece weight | 150kg | 150kg |
| Coolant pump | 0.04kw | 0.04kw |
| Lifting motor | ~ | ~ |
| Main motor (H/V) | 1.5/2.2kw | 1.5/2.2kw |
| Net weight | 860kg | 1300kg |
| Gross weight | 960kg | 1400kg |
| Dimension of machine | 1360x1350x2080mm | 1700x1450x2450mm |
| Packing size | 1340x1140x2250 mm | 1700x1460x2250 mm |
| Standard accessries | Optional accessories | |
| Safety spindle cover | 3-axis digital readout | |
| LED work lamp | Drilling vise-BMS 200 | |
| Coolant system | Milling vise-QG 6 | |
| X-mechanical power feed | Collet chucks | |
| Y-axis power feed | 58pcs clamping kits | |
| Drill chuck | Pnumetic tool clamping | |
| Drawbar | ||
| Arbor | ||
| Toolbox & tools |
Feature:
· Compact design and versatility universal milling machine
· Swiveling head for wide range of applications
· Easy to operate switches on swivelling controlling panel
· Lubrication gear head with quite operation
· Rigid constrction of table and base
· Horizontal spindle drive by belt
· X and Y-axis power feed as standard
· X-axis power feed drive by gearbox
· Swivel work table is standard
· Equip with safety spindle guard, LED work lamp, coolant system
· Horizontal spindle drive by gear on ZX6350C
| Model No. | ZX6350 | ZX6350C( HORIZONTAL GEAR DRIVE ) |
| Max. drilling capacity | 30mm | 30mm |
| Spindle sleeve diameter | 90mm | 90mm |
| Spindle taper (H/V) | ISO40/ISO40 | ISO40/ISO40 |
| Spindle stoke | 120mm | 120mm |
| Spindle speeds (H/V) | 115-1750rpm (8) / 60-1350rpm (9) | 115-1750rpm / 40-1300rpm (9) |
| X-axis table feeds | 24-720mm/min (8) | 24-720mm/min (8) |
| Head tiltable | ±45° | ±45° |
| Distance spindle to column | 200-700mm | 200-650mm |
| Distance spindle to table | 65-385mm | 50-375mm |
| Table size | 1000×240mm | 1270×280mm |
| T-slot | 14mm/4 | 14mm/4 |
| Cross travel | 160mm | 210mm |
| Longitudinal travel | 580 | 700 |
| Vertical travel | 350mm | 310mm |
| Table swivel | ±45° | ±45° |
| Max. workpiece weight | 150kg | 150kg |
| Coolant pump | 0.04kw | 0.04kw |
| Lifting motor | ~ | ~ |
| Main motor (H/V) | 1.5/2.2kw | 1.5/2.2kw |
| Net weight | 860kg | 1300kg |
| Gross weight | 960kg | 1400kg |
| Dimension of machine | 1360x1350x2080mm | 1700x1450x2450mm |
| Packing size | 1340x1140x2250 mm | 1700x1460x2250 mm |
| Standard accessries | Optional accessories | |
| Safety spindle cover | 3-axis digital readout | |
| LED work lamp | Drilling vise-BMS 200 | |
| Coolant system | Milling vise-QG 6 | |
| X-mechanical power feed | Collet chucks | |
| Y-axis power feed | 58pcs clamping kits | |
| Drill chuck | Pnumetic tool clamping | |
| Drawbar | ||
| Arbor | ||
| Toolbox & tools |
