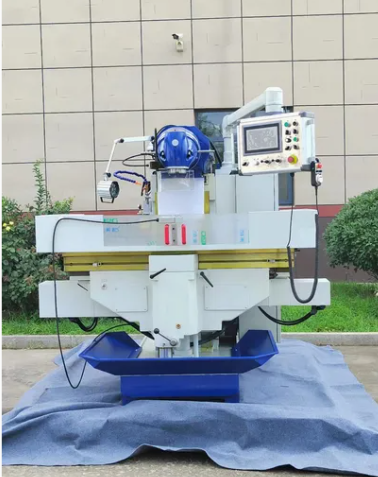

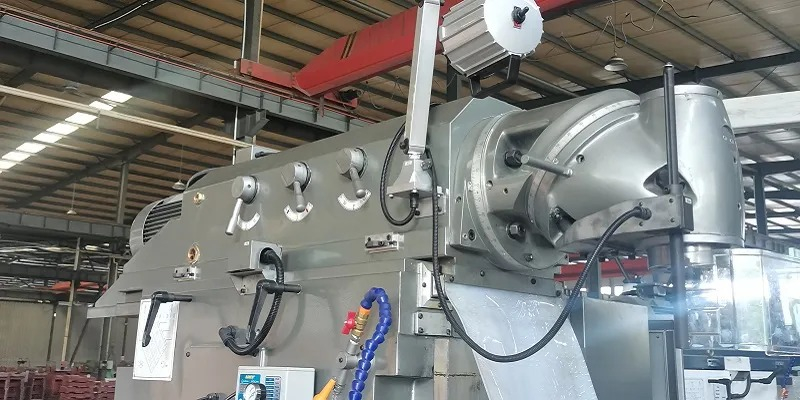

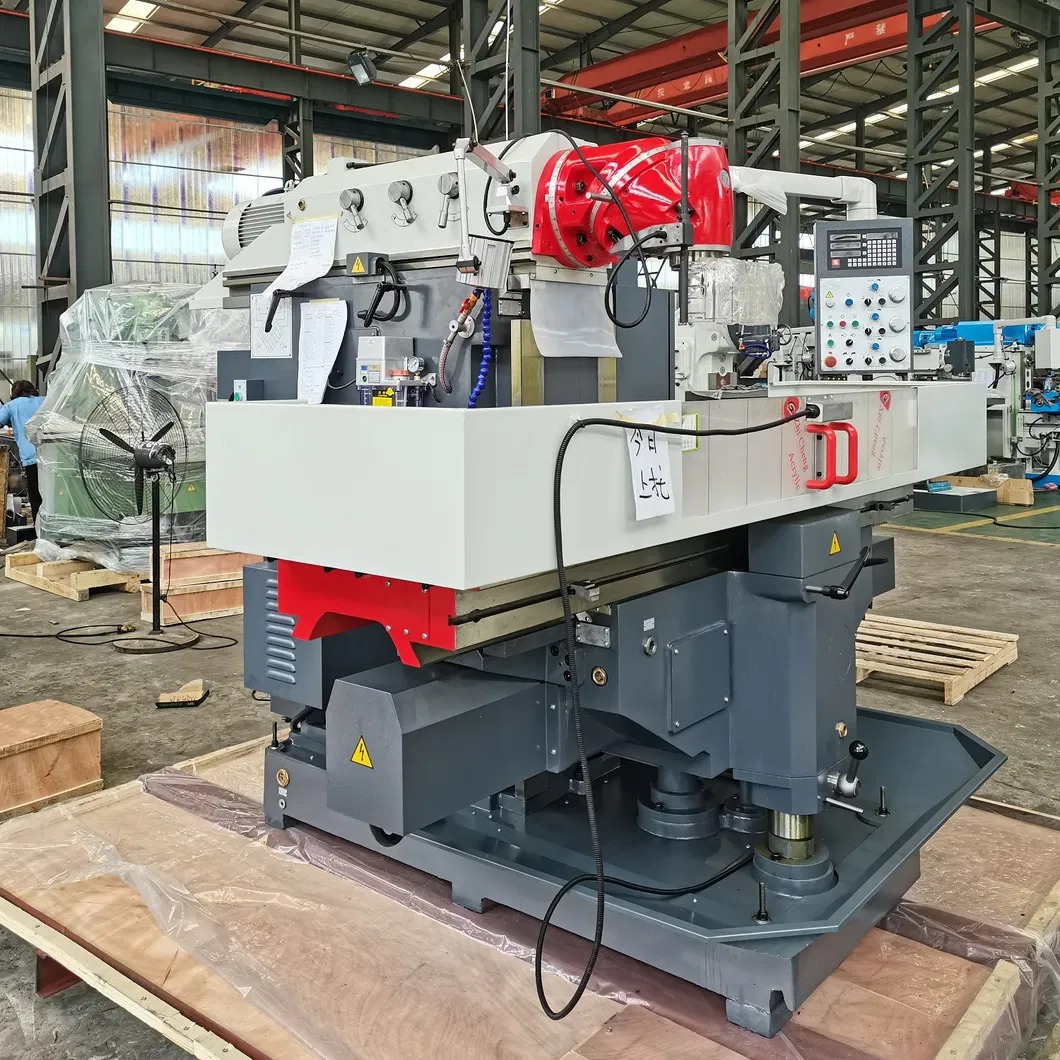

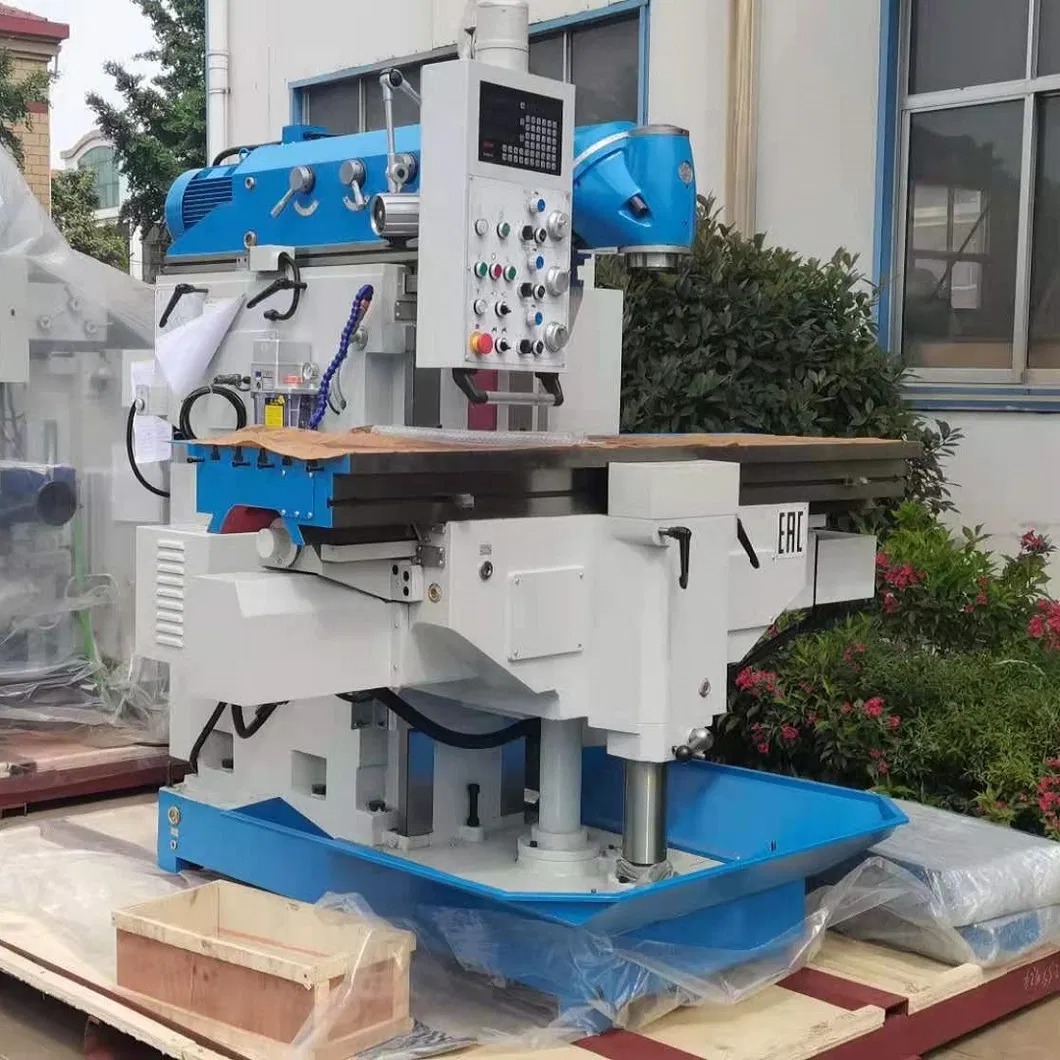

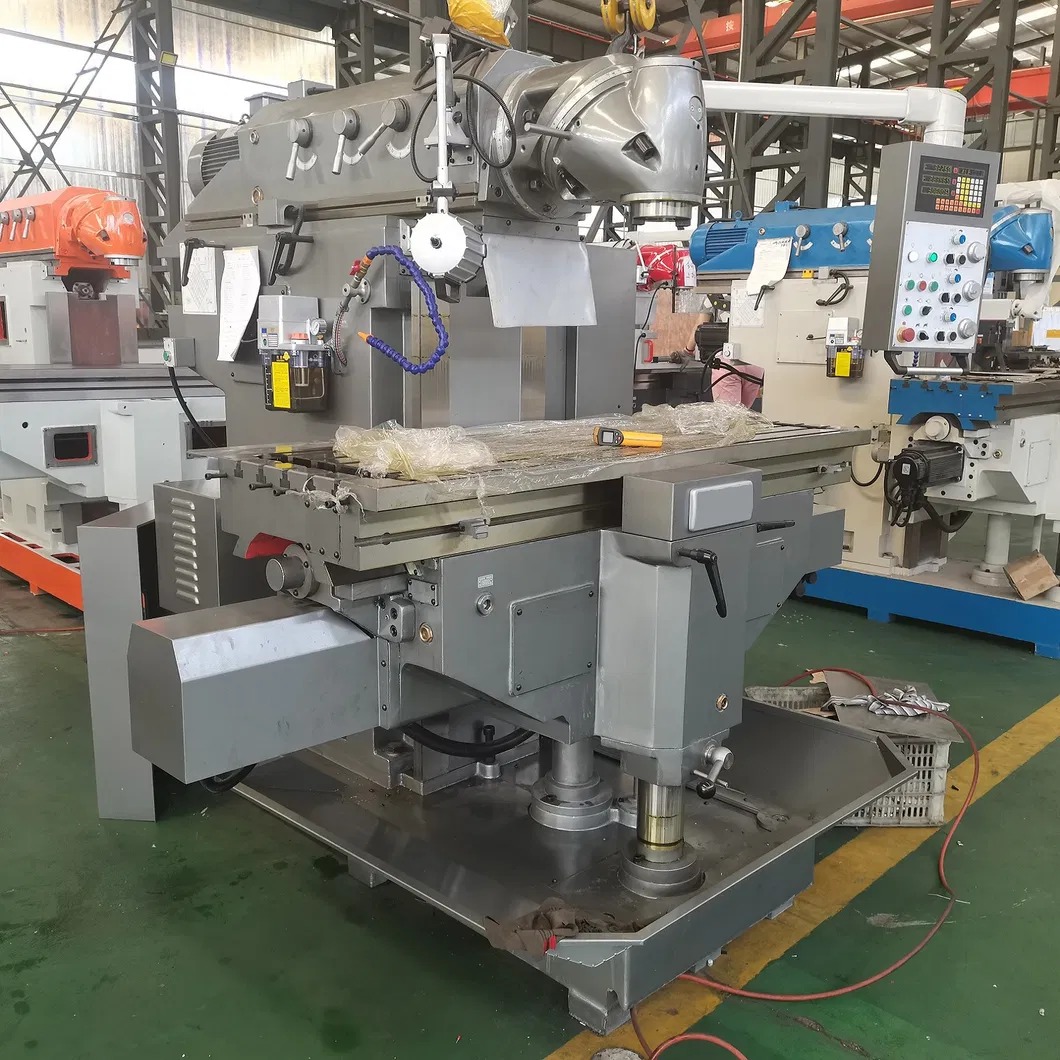

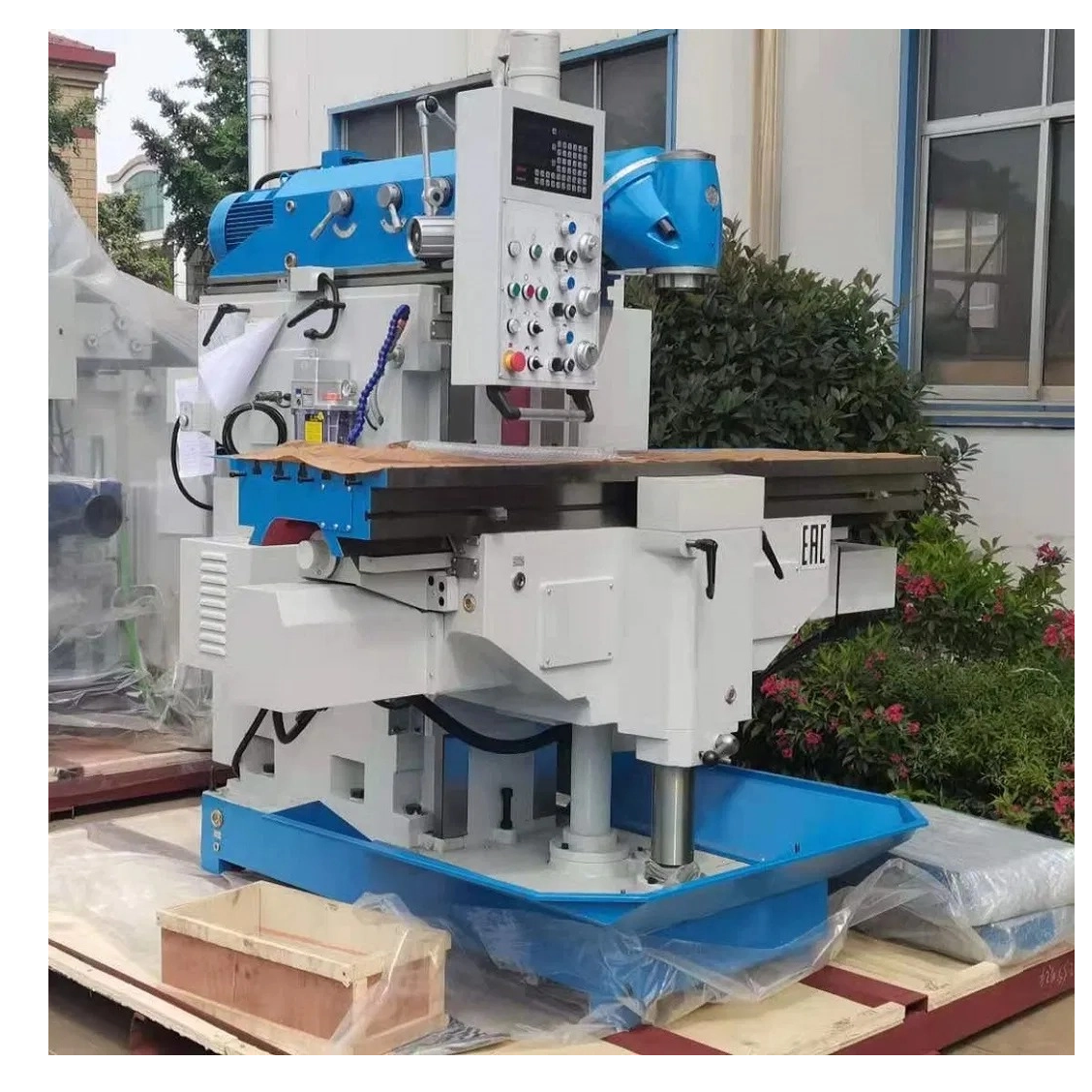

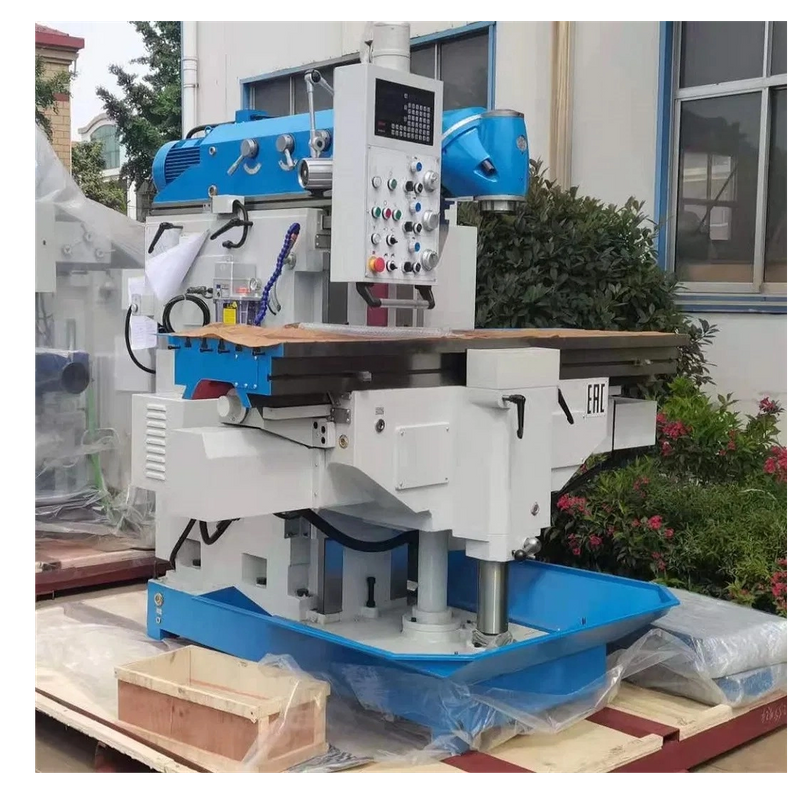

CNC X5750 X5746 S5750A Milling Machine
| Quantity: | |
|---|---|
| Items | X5746 | X5750 | X5750A |
| Working area | |||
| Table size | 1235x460mm | 1600x500mm | 2000x500mm |
| T-slot (width x No. x pitch) | 18mmx5x80mm | ||
| Max. load of table | 800kg | 1800kg | |
| Distance from spindle nose to table surface | 58-508mm | 50-550mm | |
| Distance from spindle center line to column | 20-670mm | 45-745mm | |
| Travel | |||
| Longitudinal travel of X axis | 900mm | 1200mm | 1400mm |
| Cross travel of Y axis | 650mm | 700mm | 700mm |
| Vertical travel of Z axis | 450mm | 500mm | 500mm |
| Spindle | |||
| Swivel angle of milling head | 360° | 360° | 360° |
| Spindle taper | ISO40 | ISO50 | ISO50 |
| Vertical spindle speed /step | 30-2050rpm | ||
| Vertical spindle speed step | 27 steps | ||
| Main motor power | 5.5kW | 7.5kW | |
| Feed | |||
| Feed speed and step of X/Y axis | 10-1000mm/min | 10-1000mm/min | 10-1000mm/min |
| Feed speed and step of Z axis | 6-640mm/min | 5-500mm/min | 5-500mm/min |
| Rapid traverse of X/Y axis | 2200mm/min | ||
| Rapid traverse of Z axis | 1100 mm/min | ||
| AC servo motor torque of X/Y/Z axis | X/Y:18Nm Z:27Nm | ||
| Others | |||
| Overall dimension | 2527x2035x1990mm | 2625x2460x2080mm | 2625x2860x2080mm |
| Net weight | 3600kg | 4200kg | 4500kg |
| . | Item | Specification |

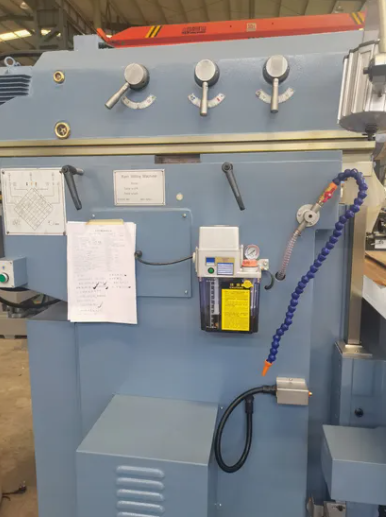

| 1 | lubrication system | - |
| 2 | water cooling system with spray nozzle | - |
| 3 | work lamp | - |
| 4 | draw bar | - |
| 5 | milling chuck set | ISO50 (or ISO40) |
| 6 | reducer sleeve | ISO50-Φ40 (or ISO40-Φ32) |
| 7 | tools & metallic tool box | - |
