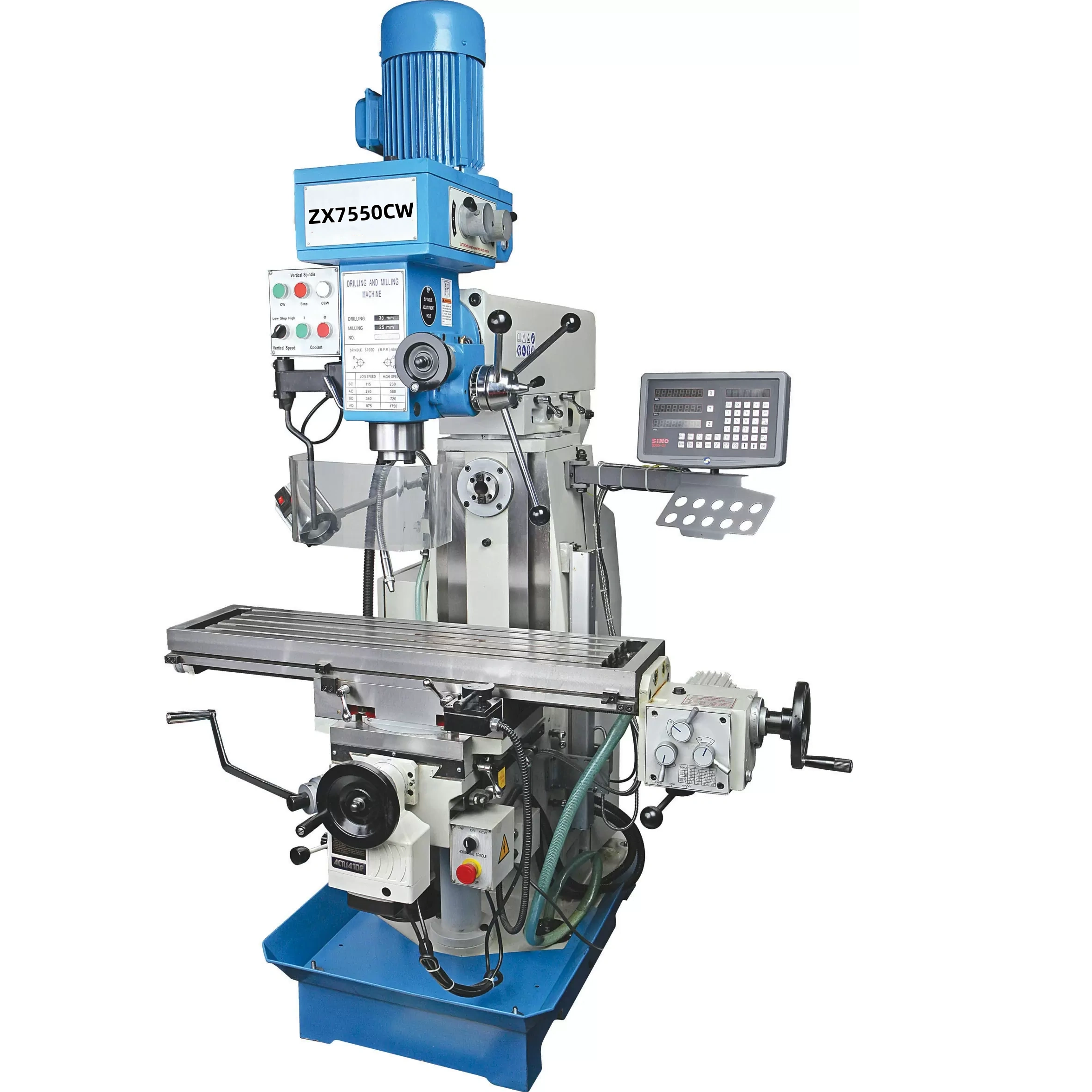

ZX7550CW /ZX7550CW -VARIO (VARIO speed）
| Quantity: | |
|---|---|
Feature:
· Compact design and versatility drilling and milling machine
· Swiveling head for wide range of applications
· Easy to operate switches on front controlling panel
· Lubrication gear head with quite operation
· Rigid constrction of table and base
· 2-speed powerful motor
· X and Y-axis power feed as standard
· Swivel work table is standard
· Equip with safety spindle guard, LED work lamp, coolant system
· ZX7550CW-VARIO drive by inverter and frenquecy motor
| Model No. | ZX7550CW | ZX7550CW- Vario |
| Max. drilling capacity | 30mm | 30mm |
| Spindle sleeve diameter | 90mm | 90mm |
| Spindle taper | ISO40 | ISO40 |
| Spindle stoke | 120mm | 120mm |
| Spindle speeds | 115-1750rpm/8 | 75-600/250-2000rpm |
| Spindle feeds | ~ | ~ |
| Head tiltable | ±45° | ±45° |
| Distance spindle to column | 200-700mm | 200-700mm |
| Distance spindle to table | 65-385mm | 65-385mm |
| Table size | 1000×240mm | 1000×240mm |
| T-slot | 4x14mm | 4x14mm |
| Cross travel | 160mm | 160mm |
| Longitudinal travel | 580 | 580 |
| Vertical travel | 350mm | 350mm |
| Table swivel | ±45° | ±45° |
| Max. workpiece weight | 150kg | 150kg |
| Coolant pump | 0.04kw | 0.04kw |
| Lifting motor | ~ | ~ |
| Main motor | 1.1/1.5kw | 1.5kw |
| Net weight | 760kg | 760kg |
| Gross weight | 860kg | 860kg |
| Dimension of machine | 1360x1150x2080mm | 1360x1150x2080mm |
| Packing size | 1150x1140x2250 mm | 1150x1140x2250 mm |
| Standard accessries | Optional accessories | |
| Safety spindle cover | 3-axis digital readout | |
| LED work lamp | Drilling vise-BMS 200 | |
| Coolant system | Milling vise-QG 6 | |
| X and Y-axis power feed | Collet chucks | |
| Drill chuck | 58pcs clamping kits | |
| Drawbar | Pnumetic tool clamping | |
| Arbor | ||
| Toolbox & tools |
