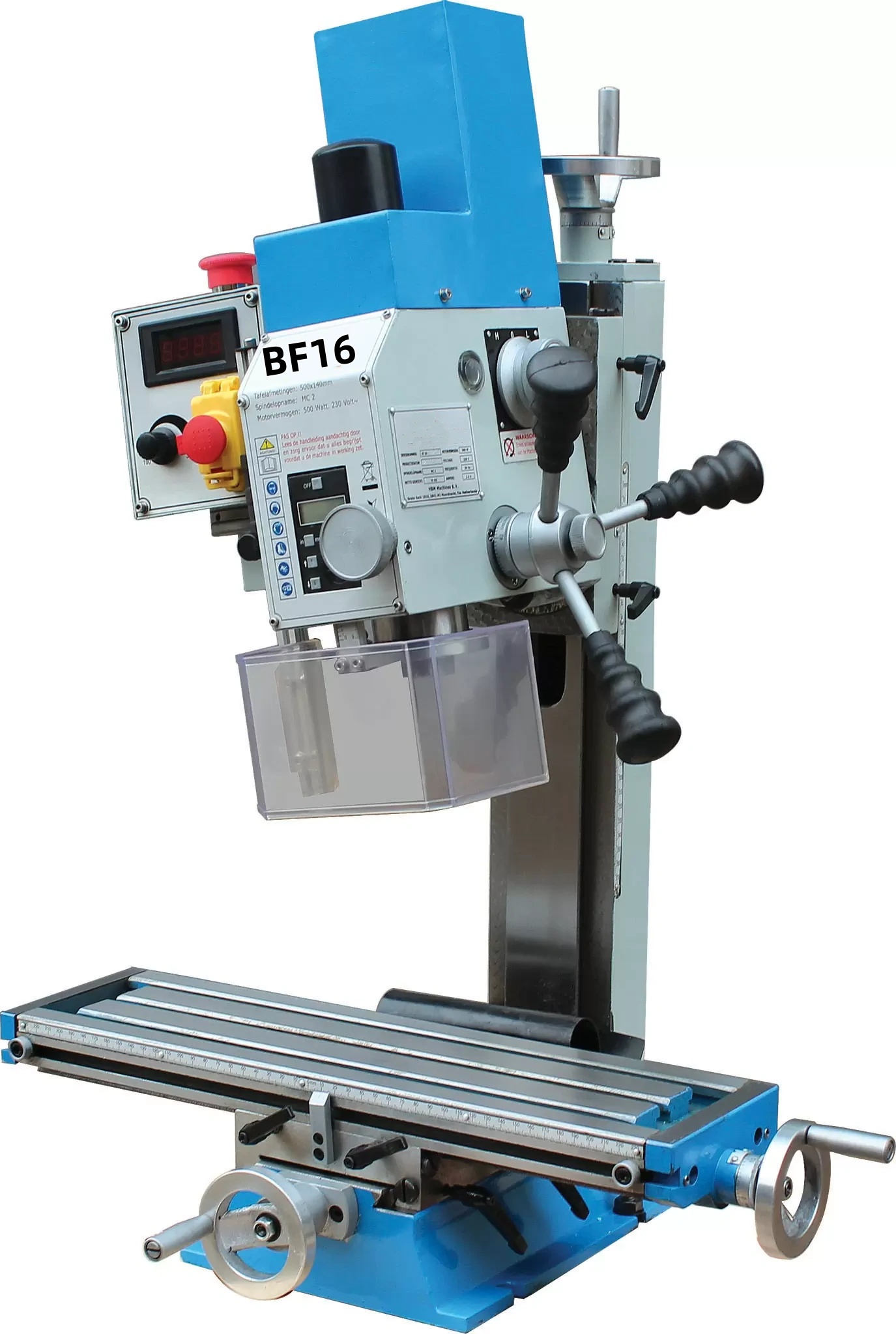

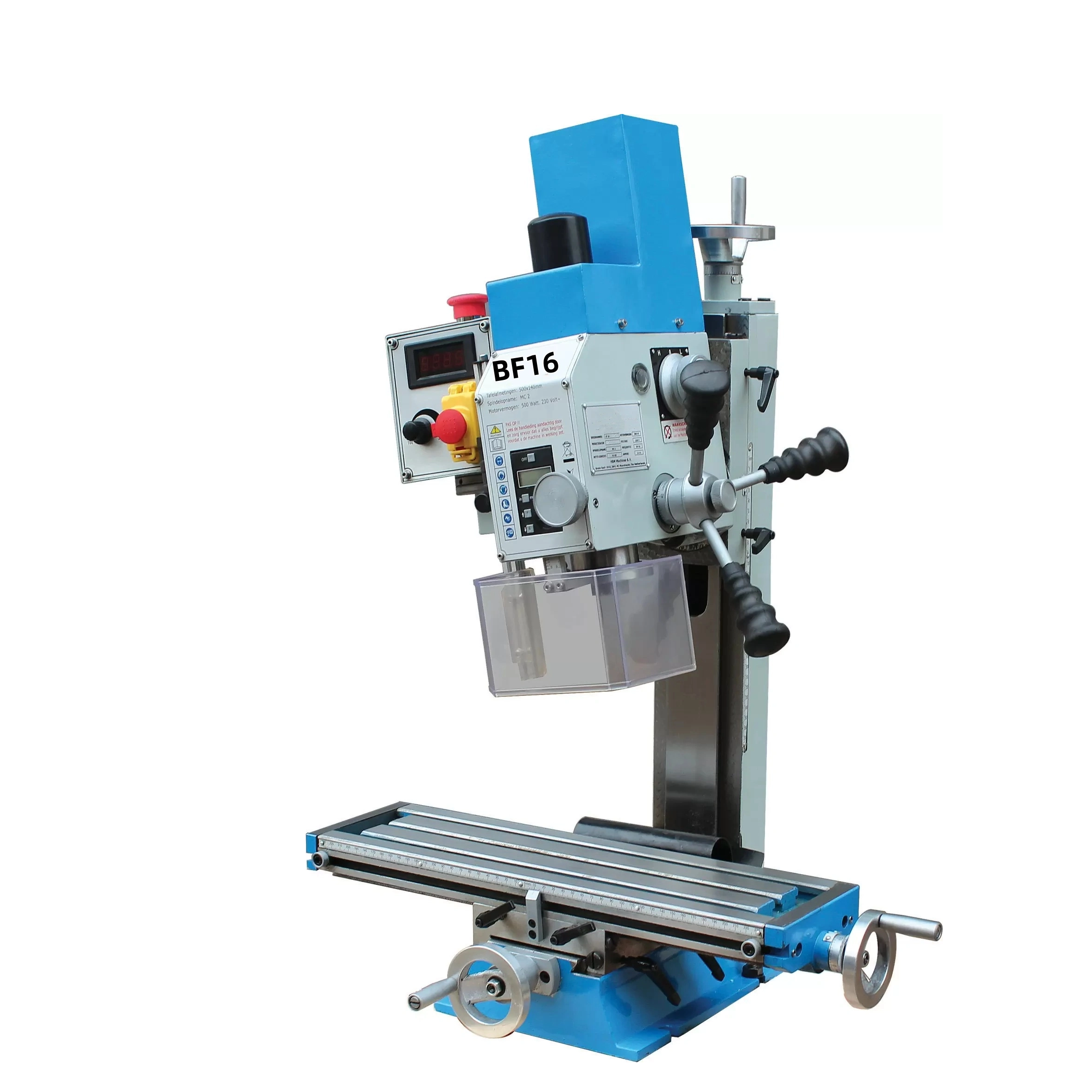

Feature:
· Brushless motor drive variable speed drilling＆milling machine
· Two steps of speeds is dispalyed directly on the control panel
· Dovetail column ensures positive head location
· Handwheel for quill micro down feed
· Depth ruler easy to read for quil travel at front panel
· Quality casting iron of large base for high rigidity
· 2-step gear unit for optimal power transmission
· CE standard electrical units

Model	BF 16 Vario	BF16L Vario
Drilling Capacity	16mm	16mm
Spindle Taper	MT2	MT2
Spindle Stroke	50mm	50mm
Head Tilt	±90º	±90º
Number of Spindle Speeds	Variable	Variable
Ranger of Spindle Speeds	100-1500/200-3000rpm	50-1125/100-2250rpm
Working Surface of Table	400x120mm	500x140mm
Max. Table longitudinal Travel	260mm	360mm
Max. Table Cross Travel	120mm	140mm
Max. vertical travel	200mm	200mm
Number of T-Slots	3	3
T-Slot Size	10mm	10mm
Motor	750w	500w
Net Wet	60kg	65kg
Gross Weight	70kg	75kg
Overall Dimension	500x450x760mm	500x450x760mm
Packing size	620x560x840mm	620x560x840mm
Standard accessories	Optional accessories
Speed readout	Keyless drill chuck
Depth ruler	Stand & chip tray
Safety spindle cover	Deluxe stand with drawer
Drill chuck	3-axis digital readout
Drawbar	58pcs clamping kits
Arbor	ER25 collets chuck set
Tools	BSM-80mm drilling vise
	QG-100mm milling vise
