Feature:

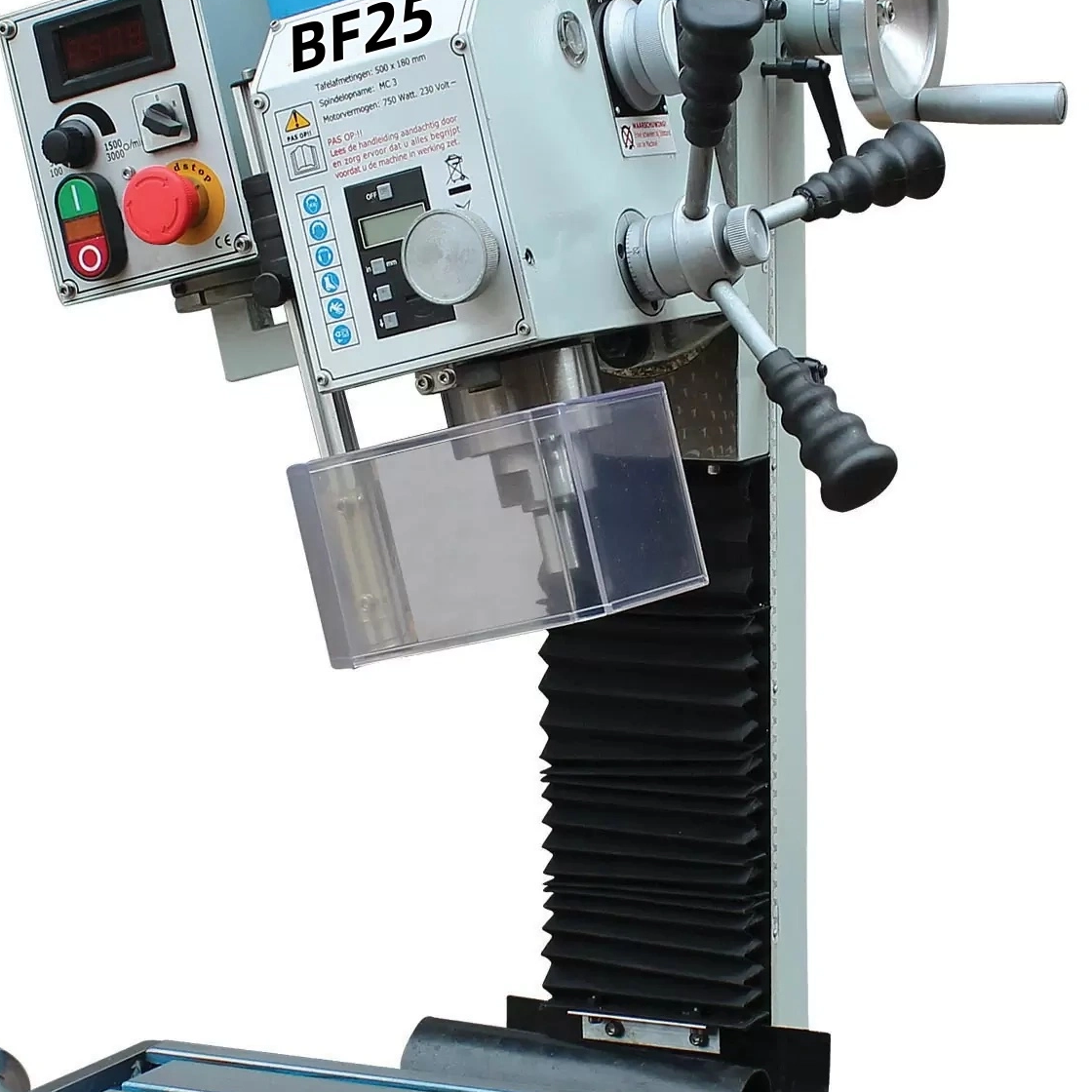

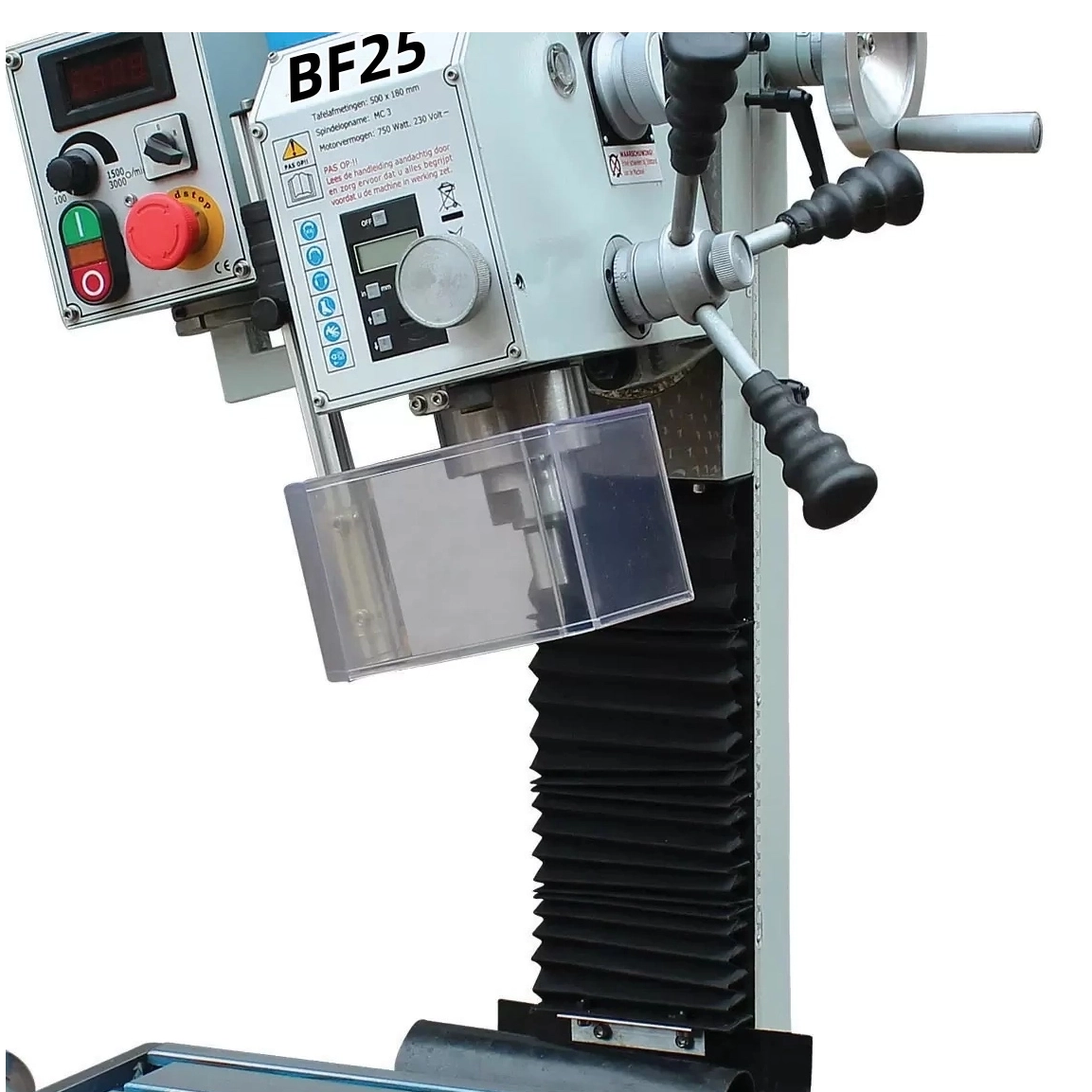

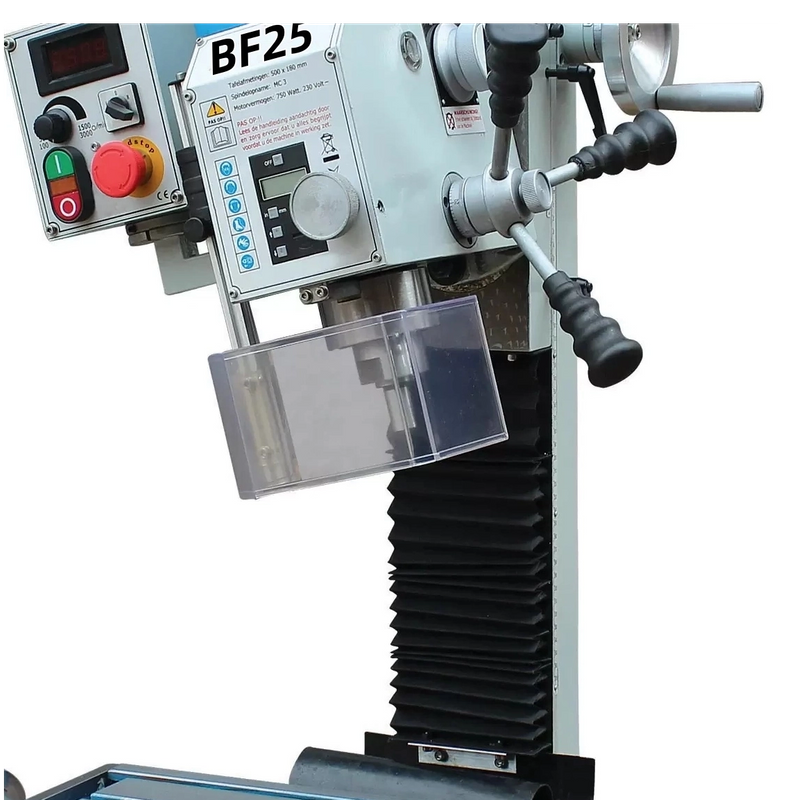

· The mill is a very well engineered machine
· Precision spindle supported on taper roller bearings
· Dovetail column ensures positive head location
· Depth ruler easy to read at front panel as standard
· Easy to operate switches on controlling panel
· Infinitely variable by DC motor and PC control
· Two step of gears keep torque at lowest speed
· Equip with safety spindle guard
· CE standard electrical units

Model	BF 25 Vario	BF 25L Vario
Drilling Capacity	25mm	25mm
Spindle Taper	MT3	MT3
Spindle Stroke	50mm	50mm
Head Tilt	±90º	±90º
Number of Spindle Speeds	Variable	Variable
Ranger of Spindle Speeds	100-1500/200-3000rpm	100-1500/200-3000rpm
Working Surface of Table	500x180mm	700x180mm
Max. Table longitudinal Travel	300mm	500mm
Max. Table Cross Travel	180mm	180mm
Max. vertical travel	255mm	255mm
Number of T-Slots	3	3
T-Slot Size	10mm	10mm
Motor	900w	900w
Net Wet	115kg	120kg
Gross Weight	125kg	130kg
Overall Dimension	550x500x840mm	750x500x840mm
Packing size	560x520x880mm	770x720x880mm
Standard accessories	Optional accessories
Speed readout	Keyless drill chuck
Depth ruler	58pcs clamping kits
Safety spindle cover	ER25 collets chuck set
Drill chuck	BSM 85 drilling vise
Drawbar	QG 4" milling vise
Arbor	Stand & chip tray
Tools	Deluxe stand with drawer
	3-axis digital readout
